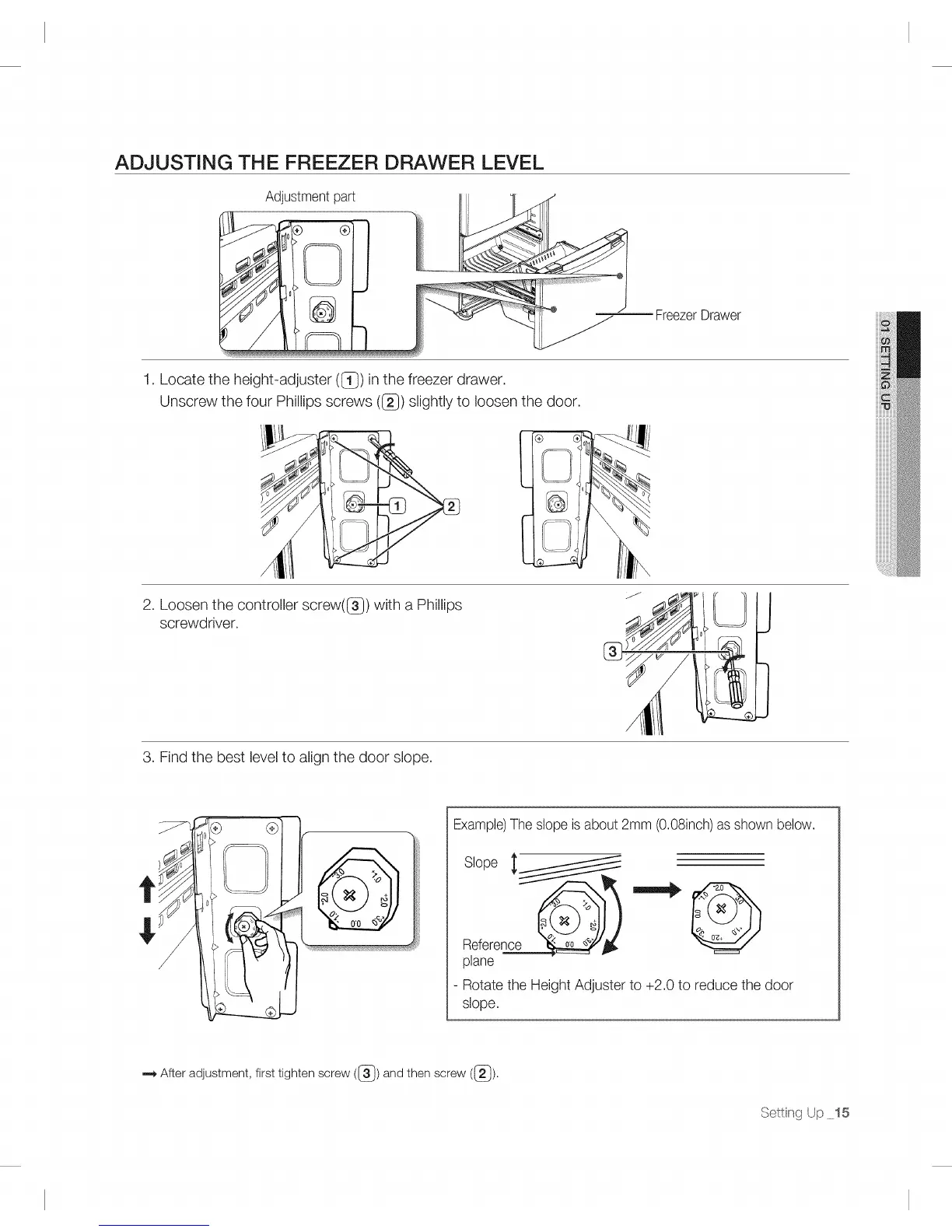

ADJUSTING THE FREEZER DRAWER LEVEL
Adjustment part
fff
Freezer Drawer
1. Locate the height-adjuster (1_}) in the freezer drawer.
Unscrew the four Phillips screws (_) slightly to loosen the door.
2. Loosen the controller screw(G ) with a Phillips
screwdriver.
3. Find the best level to align the door slope.
J
@
Example) The slope is about 2ram (0.08inch) as shown below.
Slope !_
Reference _,_
plane
- Rotate the Height Adjuster to +2.0 to reduce the door
slope.
-,_ After adjustment, first tighten screw ((_) and then screw ((_).
Settisg Up 15
