Samsung RL37SGPS - Electrical Diagram; Technical Parameters

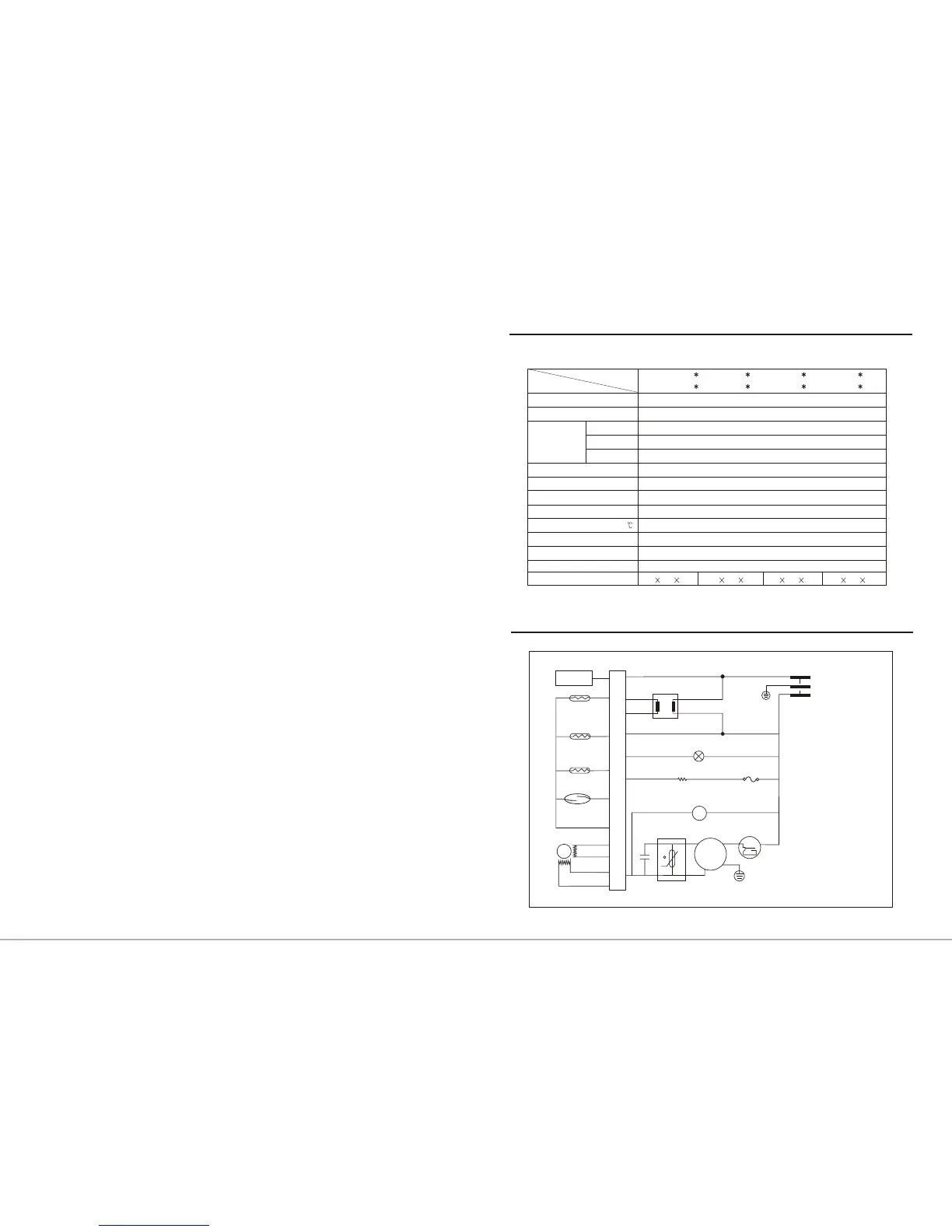

Electrical Diagram
Technical Parameters
Electrical Shock Protection Class
Effective Capacity
(L)
Rated voltage/ Frequency/Current
Total Input Power (W)
Freezing Capacity kg/24h
Refrigerant and Fill-in Amount
Overall Size (W*D*H)(mm)
Defrost Power (W)
Climate Type
Weight(kg)
DESCRIPTION
Power Consumption kWh/24h(25 )
Max. Power of Lamp(W)
Total Effective Capacity
Refrigerator
Freezer
MODEL
À䶳ÊÒ
RL34EG RL34EC RL34SC RL34SG
600 685 1775
220V-240V/50Hz/0.48A
R-600a,0.055Kg
286
201
85
10
0.945
71
SN,N,ST
I
100
30
250
595 646 1775 595 646 1775
17
600 685 1775
RED
RED
RED
RED
O/L PROTECTOR
RED
EARTH
2
TEMP FUSE
Y/GRN
1
3
B/WHT
C
Y/GRN
FAN MOTOR
COMPRESSOR
1~
M
GRY
LAMP
M
M
M
S
P.T.C RELAY
DEFROSTHEATER
TRANSFORMER
t
RUNNING
CAPACITOR
MAIN CONTOROL PCB
BLK
BRN
RED
F-SENSOR
PANEL PCB
BLU
REF-SENSOR
F-EVAP
SENSOR
REED SWITCH
PINK
RED
WHT
YEL
DAMPER
BLU
GRY
BLU
BLU
RED
PINK
RED
YEL
BLK
BRN
BLU
B/WHT-BLACK/WHITE
BRN-BROWN
BLU-BLUE
GRY-GRAY
WHT-WHITE
YEL-YELLOW
Y/GRN-YELLOW GREEN
EARTH
RL37EG RL37EC RL37SC RL37SG
