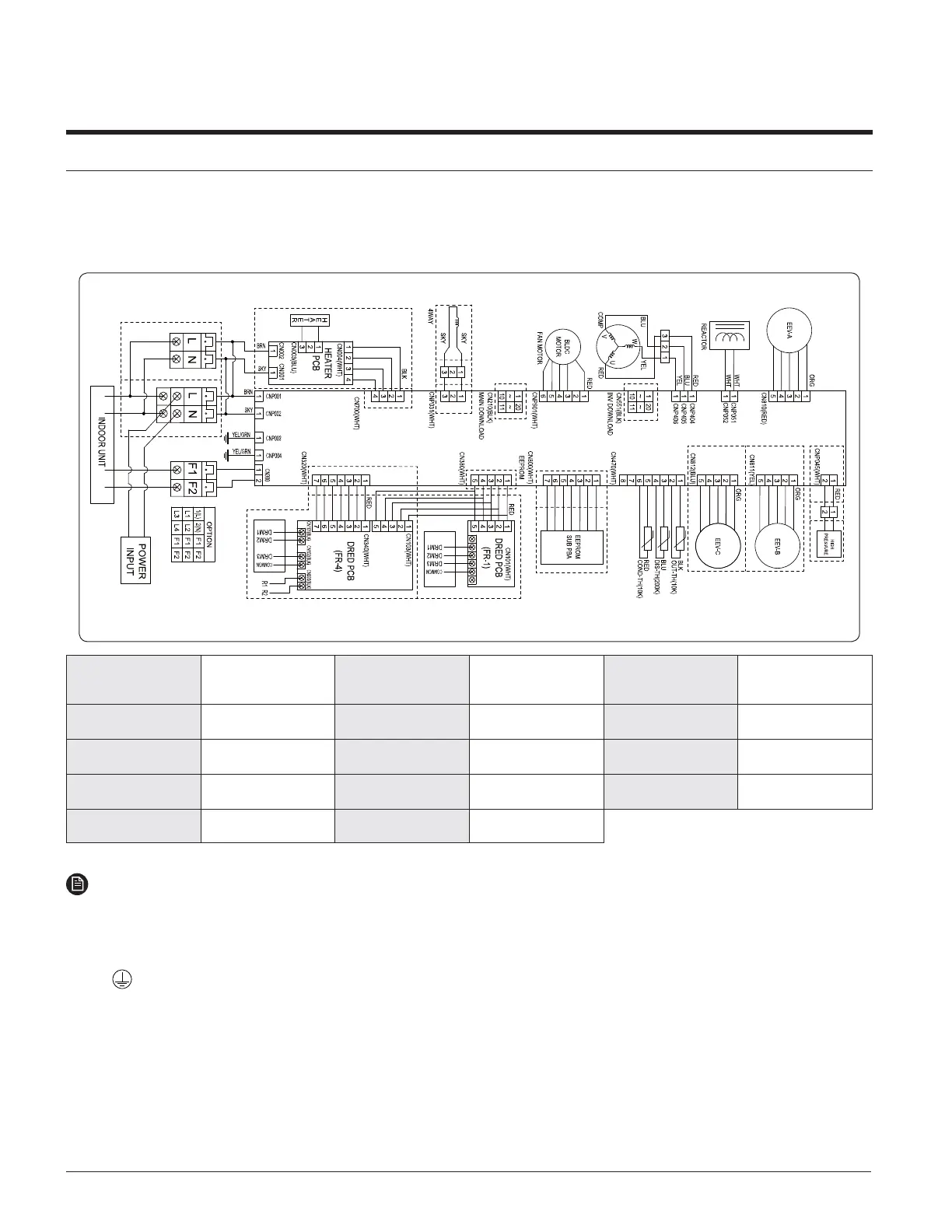

5. Electrical Wiring Diagram
Quantum 2.0 : RXS24YBT (AR24TSFYBWKXCV)
Max Heat 2.0 : RXS18ACT (AR18TSFACWKXCV), RXS24ACT (AR24TSFACWKXCV)
Wind-Free™ 2.0 : RXS18ABT (AR18TSFABWKXCV), RXS24ABT (AR24TSFABWKXCV)
DRED
Printed circuit board(DRED
PCB)
DIS-TH
Thermistor
(Discharge Temp._200Kohm)
EEV-C
Electronic expansion
valve C
REACTOR REACTOR OUT-TH
Thermistor
(AmbientTemp._10Kohm)
EEV-A
Electronic expansion
valve A
EEPROM
Printed circuit
board(EEPROM PCB)
COND-TH
Thermistor
(Cond Out Temp._10Kohm)
EEV-B
Electronic expansion
valve B
COMP COMPRESSOR BLDC Motor(BLDC FAN Motor) HIGH PRESSURE PRESSURE SWITCH
HEATER
Printed circuit
board(HEATER PCB)
4-WAY VALVE 4WAY VALVE
NOTE
• This wiring diagram applies only to the outdoor unit.
• Colors BLK : black, BRN : brown, SKY-BLU : sky-blue, GRN/YEL : green/yellow, RED : red, YEL : yellow,
ORG : orange, BLU : blue, WHT:white
•
Protective earth(screw)
Outdoor units
To Next Page
