Samsung RSA1SHPN User Manual

setting up _11
setting up your side-by-side
refrigerator
2. Removing the freezer door
A few things to mention first.
• Make sure that you lift the door straight up so the hinges are not bent or broken.
• Be careful not to pinch the water tubing and wire harness on the door.
• Place doors on a protected surface to prevent scratching or damage.

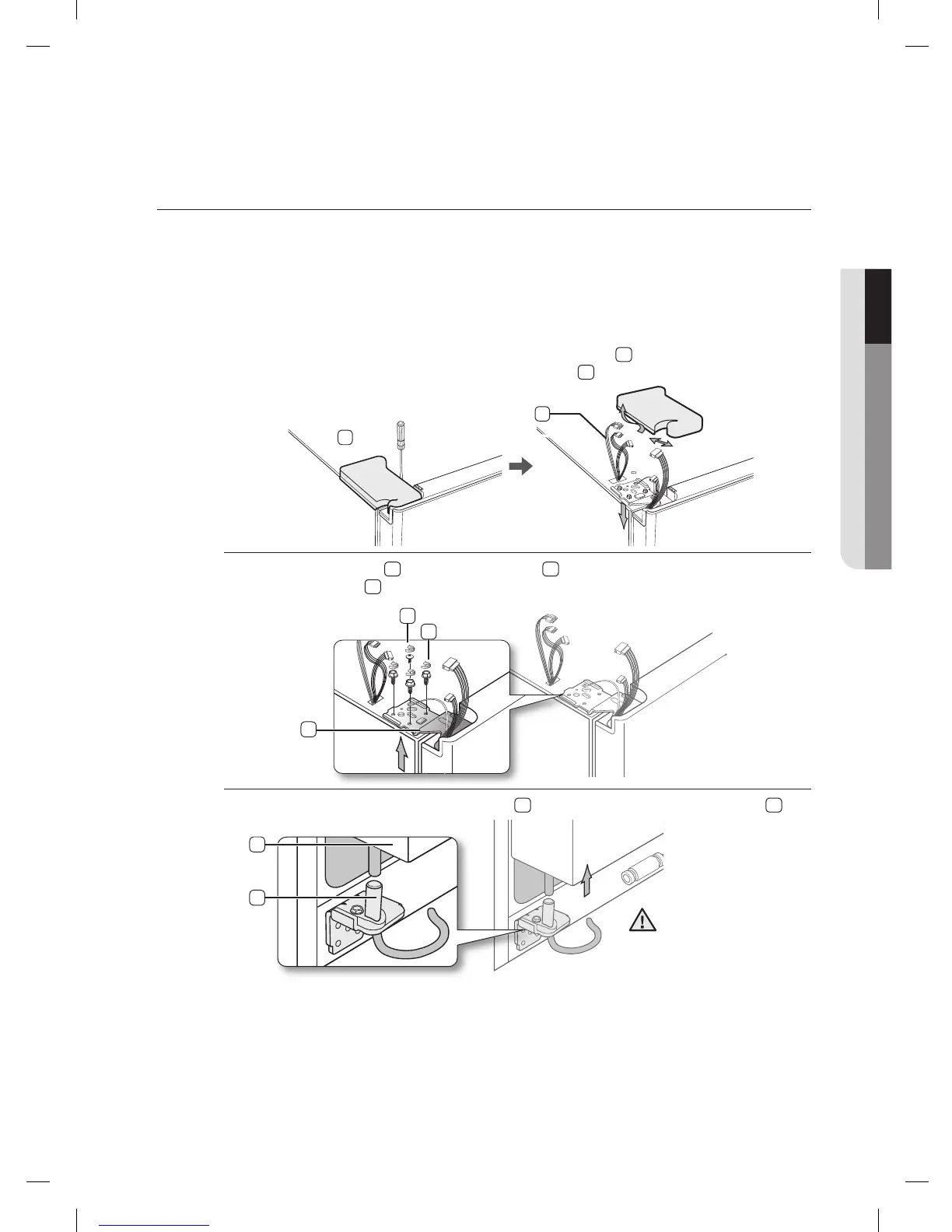

1. With the Freezer door closed, remove the upper hinge cover
1
using a screwdriver, and
then disconnect the wires by gently pulling them apart
2
.
2.
Remove hinge screws
3
and the ground screw
4
by turning counter-clockwise, and take
off the upper hinge
5
. Be careful that the door does not fall on you as you are removing it
3.
Next, remove the door from the lower hinge
6
by carefully lifting the door straight up
7
.
2
3
4
5
7
6
1
01 SETTING UP
Be careful not to pinch
the water tubing and
wire harness on the
door.

Samsung RSA1SHPN Specifications

General

Display type	LED
Product color	Platinum
Product design	American door
Built-in display	Yes
Shelves material	Tempered glass
Appliance placement	Freestanding
Egg balcony	No
Fridge net capacity	360 L
Fridge gross capacity	- L
Number of vegetable drawers	2
Fridge number of shelves/baskets	5
Noise level	43 dB
Climate class	-
Total net capacity	540 L
Total gross capacity	555 L
Freezer position	Side-placed
Freezing capacity	- kg/24h
Freezer net capacity	180 L
Freezer number of shelves/baskets	4
Storage time during power failure	- h
Connected load	- W
Annual energy consumption	447 kWh
Package depth	776 mm
Package width	974 mm
Package height	1907 mm
Package weight	115000 g

Weight and Dimensions

Depth	734 mm
Width	912 mm
Height	1789 mm
Weight	105000 g
Depth without handle	672 mm
