9
Preparations
Chapter 02
Installation

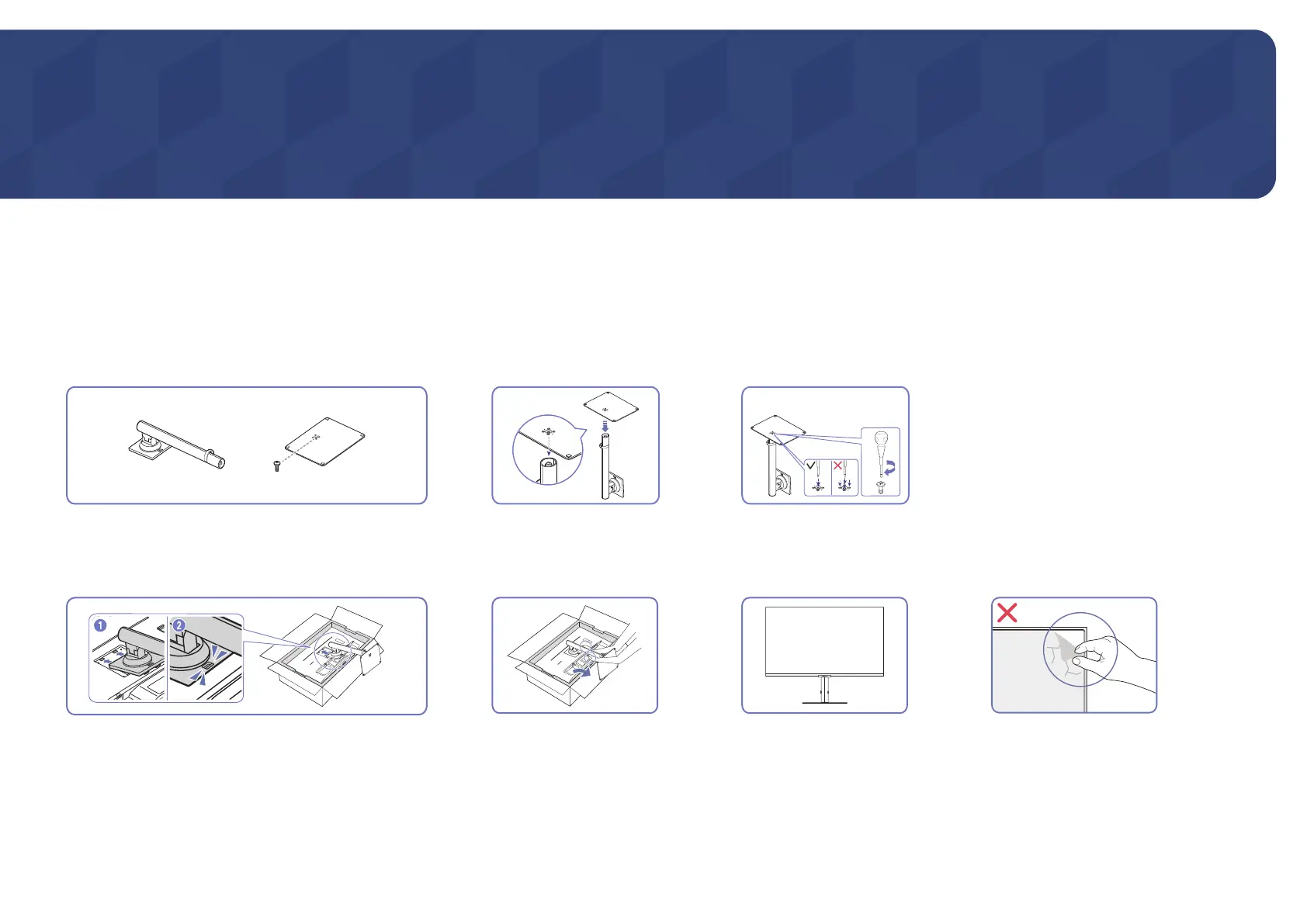

Attaching the Stand
Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.
Disassembly is the reverse order of assembly.
1 2
Put the stand base onto the stand neck
as the direction shown in the figure.
Check that the stand neck is firmly
connected.
Tightly fasten the connecting screw at
the bottom of the stand base. Fasten the
large screw in the middle for assembly.
3 4
5
Push the assembled stand into the main body in the direction of the
arrow as shown in the figure.
Stand up the monitor as shown in the
figure.
After installing the stand, place the
product upright.
Caution
Do not arbitrarily remove the panel film.
If not observed, the warranty service may
be restricted.
