Samsung Electronics5-18
Alignment and Adjustment
5-2-2 Camera System Adjustment
1. Focus to zoom tracking
Note : To maintain proper focus throughout the zoom range, the focus lens position must be changed as
the zoom lens is moved.
During this adjustment the microprocessor will measure the focus positioning requirements at the
wide and telephoto position of the zoom lens.
1) Camera ÒE-EÓ.
2) Focus chart (Attached on the last page of this manual).

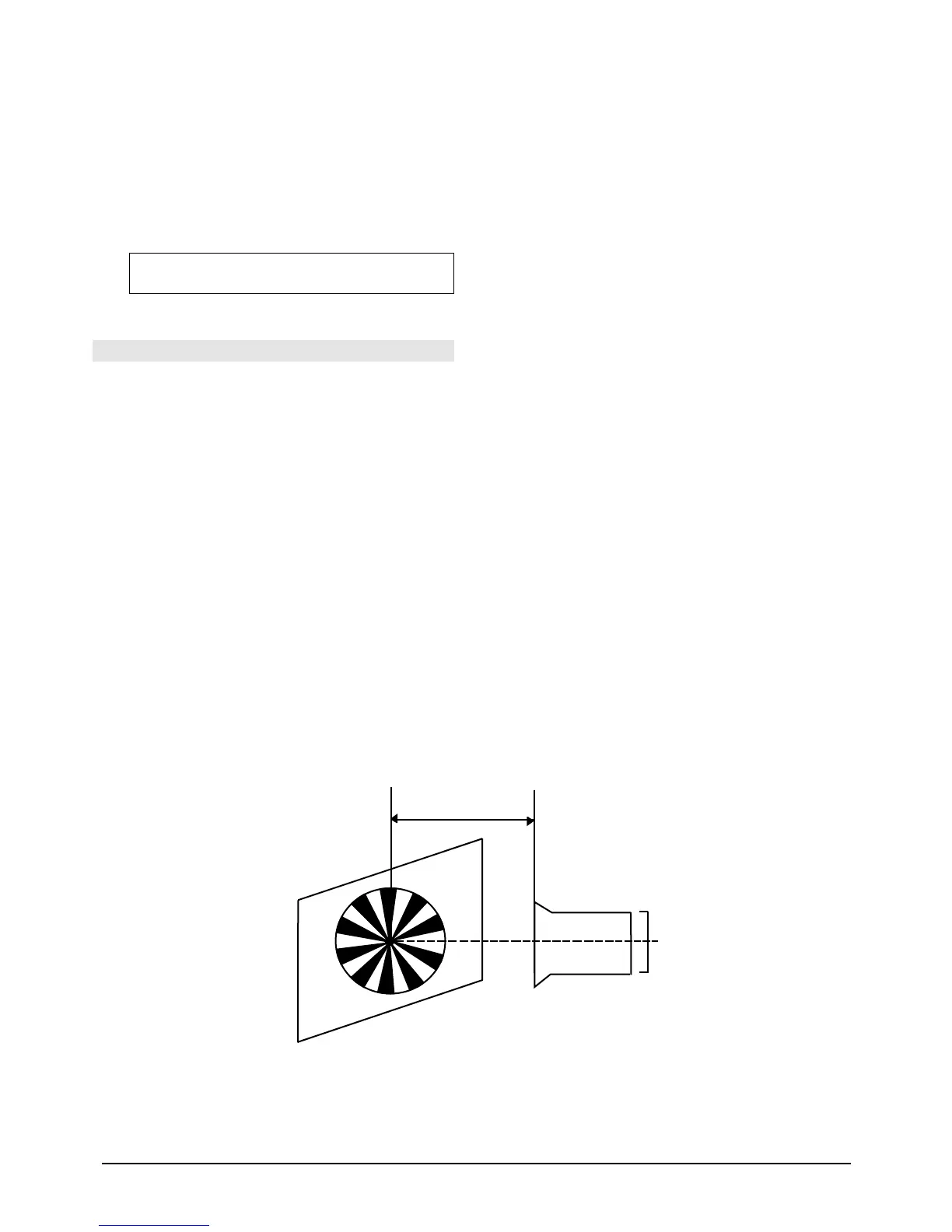

3) Aim the camera at the focus chart placed 3 meters away and perpendicular to the center of the lens.
The chart should be placed on the flat, gray or white wall.
4) Connect monitor TV jack to video output jack.
5) Press the ÒTITLE (MODE UP)Ó and ÒDATE/TIME (MODE DOWN)Ó button, so that the OSD start is
Ò0DE. 3M LEN XX XXÓ.
6) Press ÒMENU/ENTER (CONFIRM)Ó button.
The camera will move both zoom and focus lens. Be sure to do not tremble the lens.
The adjustment is finished when the O.K! message appears on the TV screen.
At the wide zoom position, the brightness of picture depends on data of Addr. 0C9, if the picture is dark,
decrease the data of Addr. 0C9.
Note : The on-screen display information.
ÒXX XXÓ means arbitrary value.
It can be different number depend on the
conditions.
ODF T.INI XX XX
