Samsung Electronics 3-5
Disassembly and Reassembly
3-1-5 Ass’y Case Right Removal
2
PULL OUT THE CASE LEFT
ASSEMBLY IN THE DIRECTION
OF ARROW "A" .
DISCONNECT FPC FROM THE
CONNECTOR OF THE MAIN PCB.
REMOVE 1 SCREWS.
1
REMOVE 4 SCREWS.
1
"A"
1
1
1

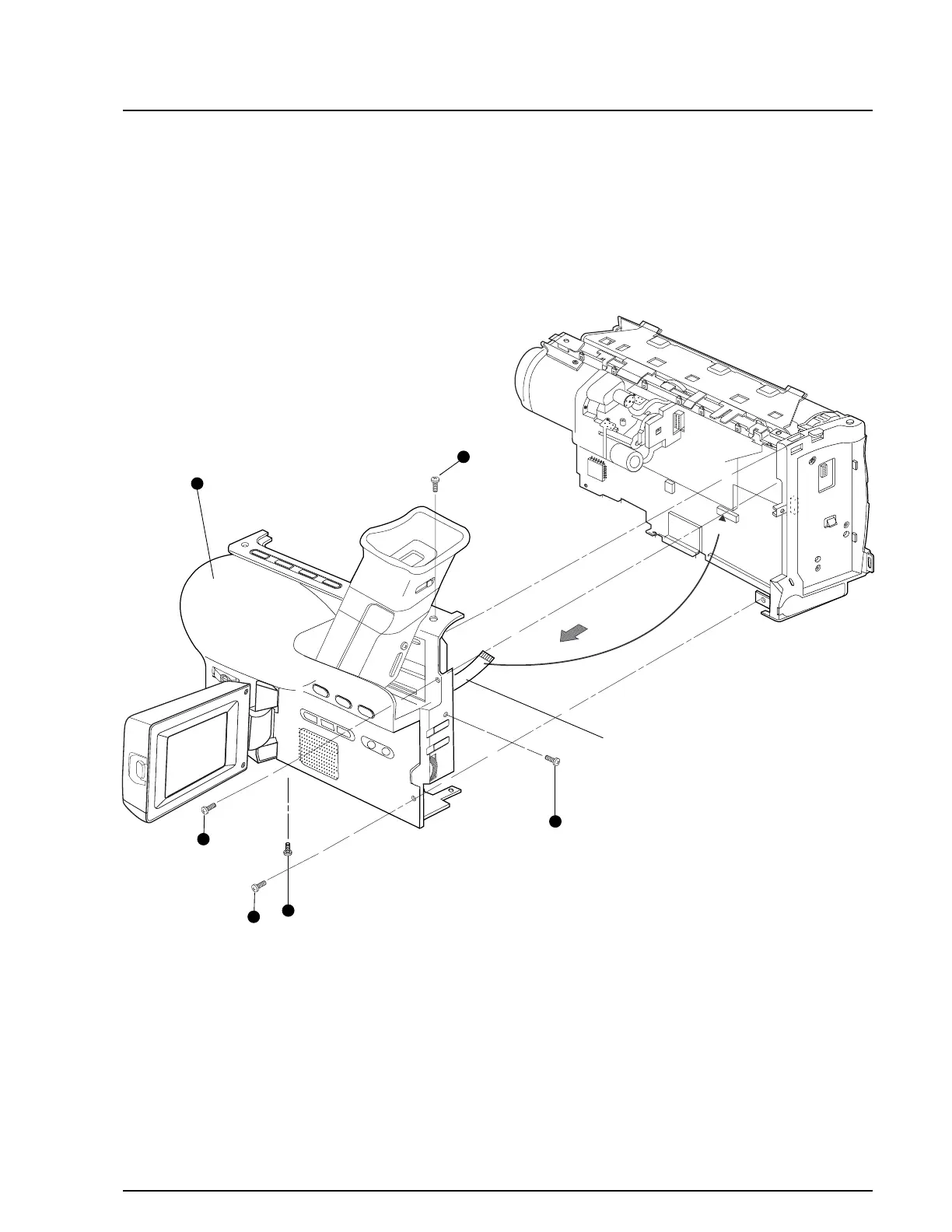

Fig. 3-5 Ass’y Case Right Removal
