3-1-8 Ass’y Rear Board Removal
2
REMOVE THE ASS’Y FUNCTION
BOARD IN THE DIRECTION OF
ARROW "A".
1
REMOVE 2 SCREWS.
"A"

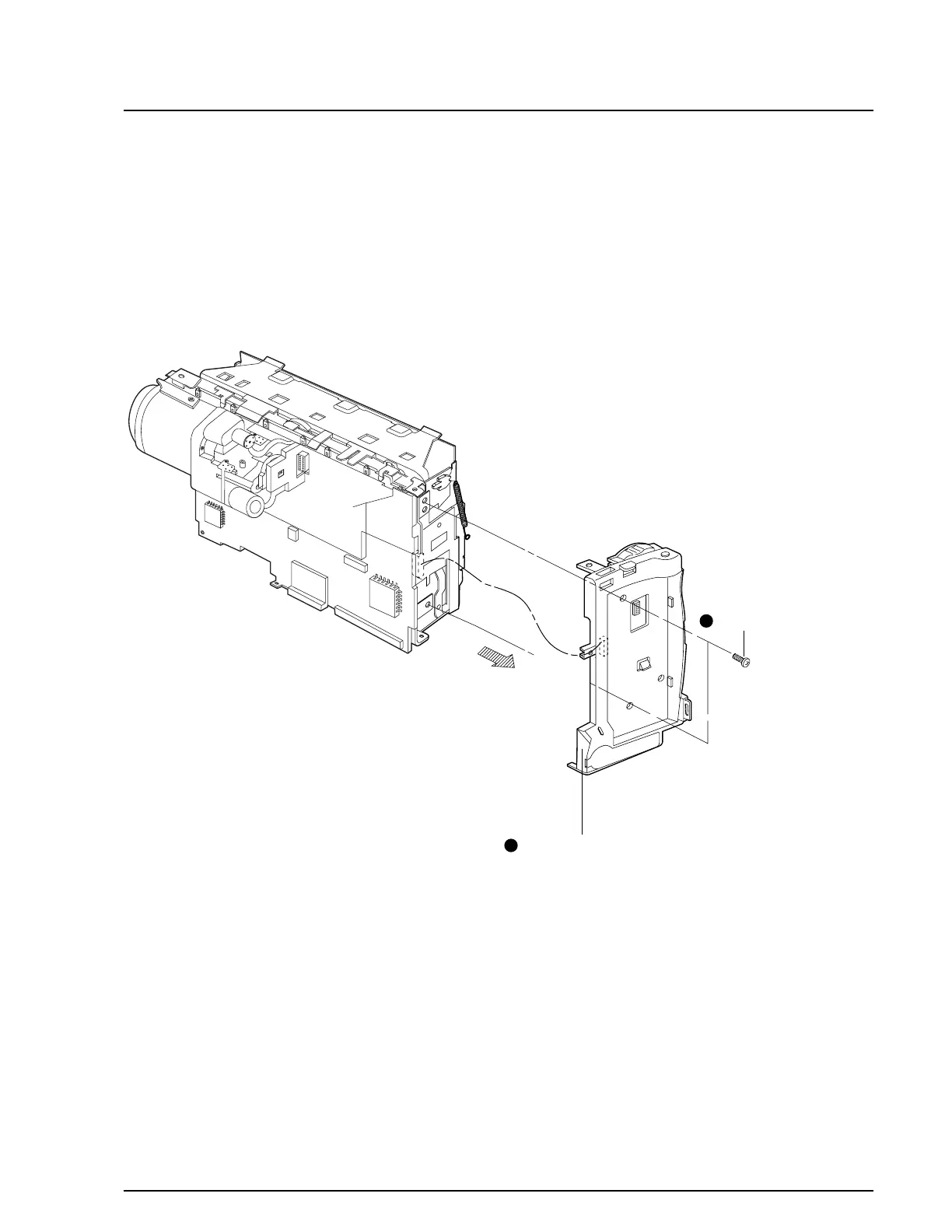

Fig. 3-8 Ass’y Rear Board Removal
