Samsung Electronics1-8
Introduction
11.Black Level Adj:
12.AE Adjustment: Adjust the Hall value automatically.
13.3100K W/B test : Set 3100K(incandescent light temperature) white balance.
14.5100K W/B test : Set 5100K(fluorescent light temperature) white balance.
15.Thumbnail Down load : Transfer thumbnail image in the smart media card into PC.
16.JPEG Down Load : Transfer image in the smart media card into PC.
17.Shot 0: Function SHUTTER in camera photo mode.
18.Shot 0: Function SHUTTER in camera photo mode.
19.Shot 0: Function SHUTTER in camera photo mode.
• Run the PI program.
The settings of the Test Options (see Figure 7) are applied as a sequence.
Click the START button to run.
The edit function is enabled when Vs appear in the check boxes of Enable Scroll Inspect Item Window
and Enable Scroll Information Window.

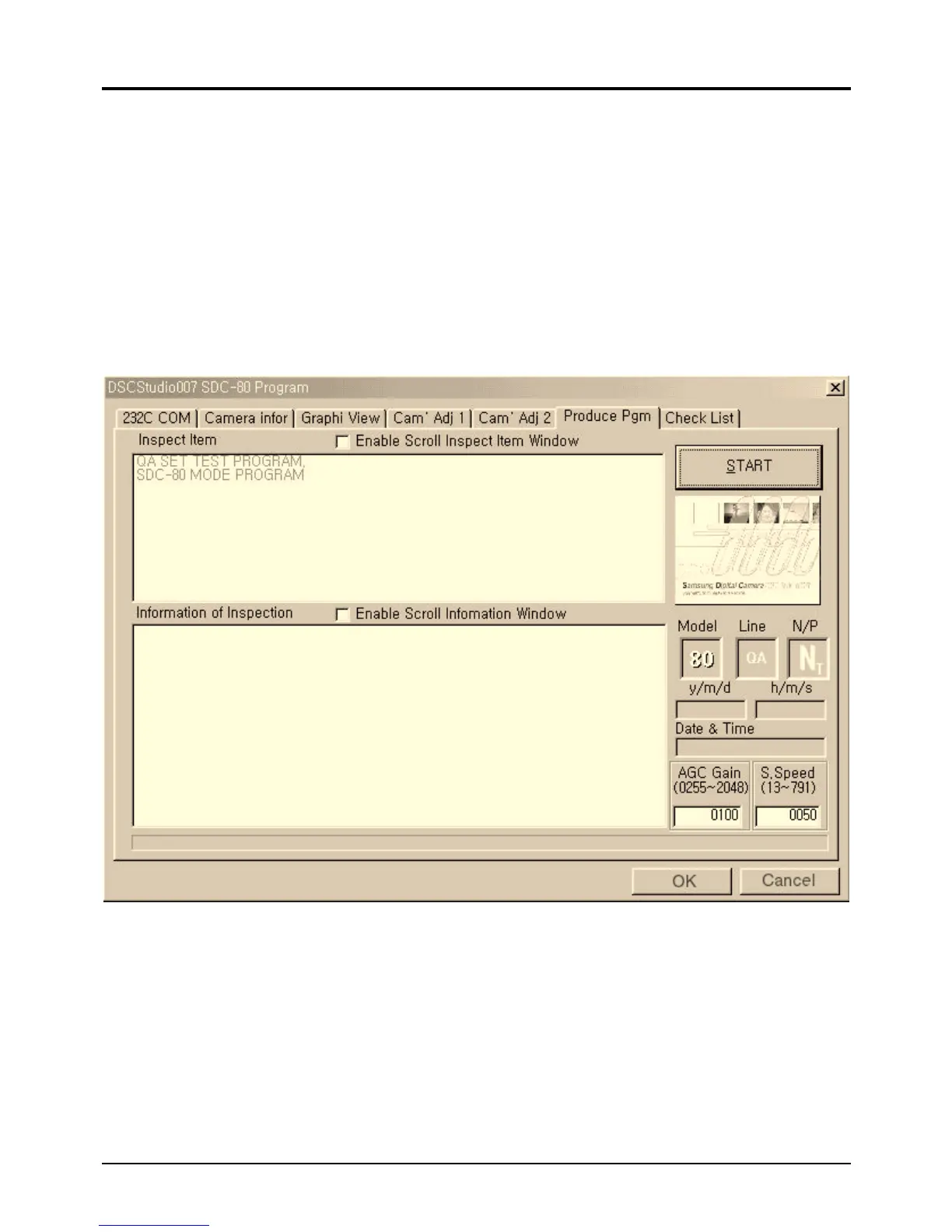

(Figure 9) PGM for Manufacturing
