Parts List
1 PCB-DISPLAY FR-1 1 SNA
2 TACT SWITCH YTP-1280A 1 SNA
3 CONNECTOR SMSW200-08(WHT) 1 SNA
4 LED-LAMP GRN(SM3517) 2 SNA
5 LED-LAMP ORG(SO3517) 1 SNA
6 RESISTOR 470ohm,1/2W 1 SNA
7 MODULE REMOCON FRP4021H10 1 SNA
8 DIODE 1N4148 1 SNA
9 C-CERAMIC 1nF/50V 1 SNA
10 C-CERAMIC 100nF/50V 1 SNA
11 JUMPER 10mm 1 SNA
No. Q'TY RemarkDescription Specification

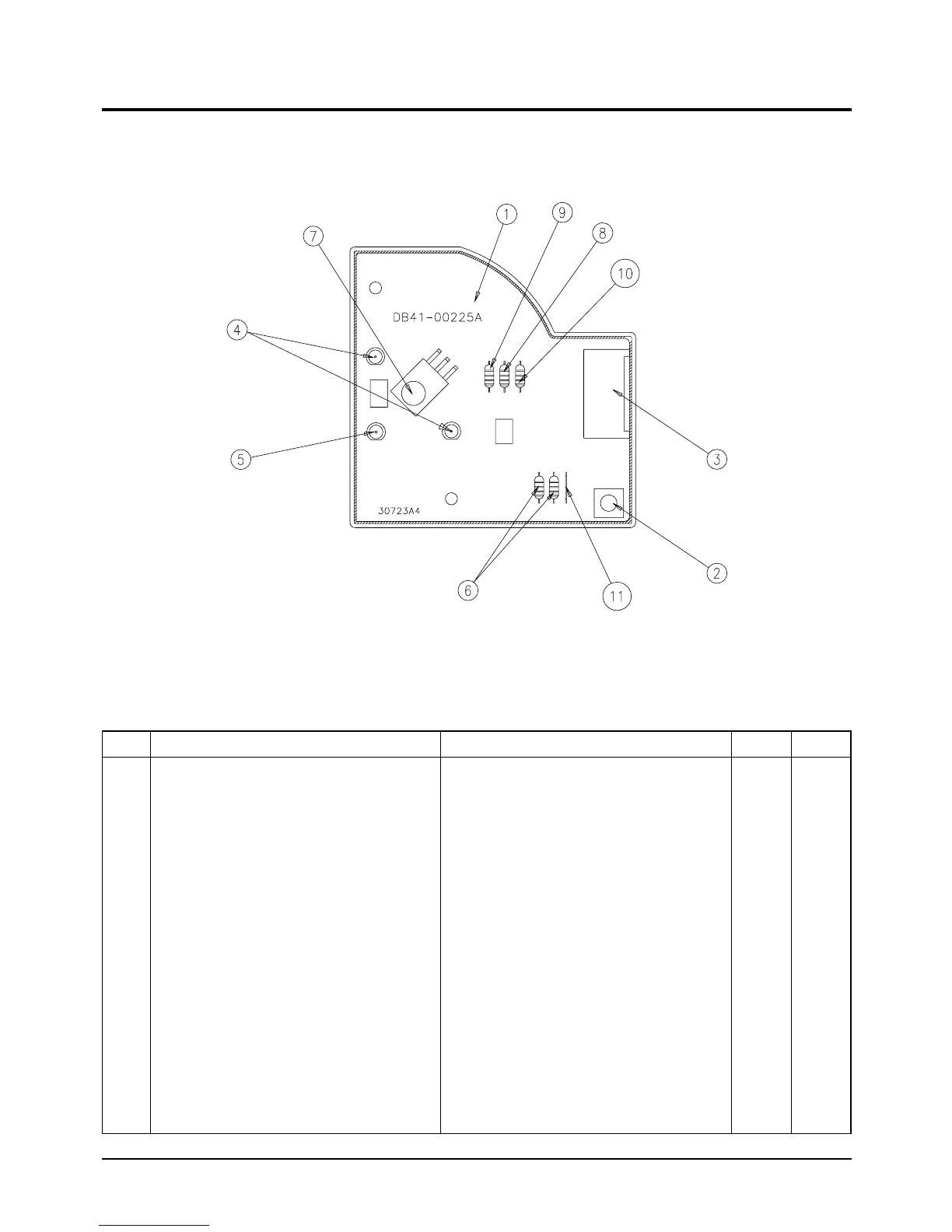

9-2 ASS'Y SUB PCB(7K/9K/12K) : DB93-02525A
