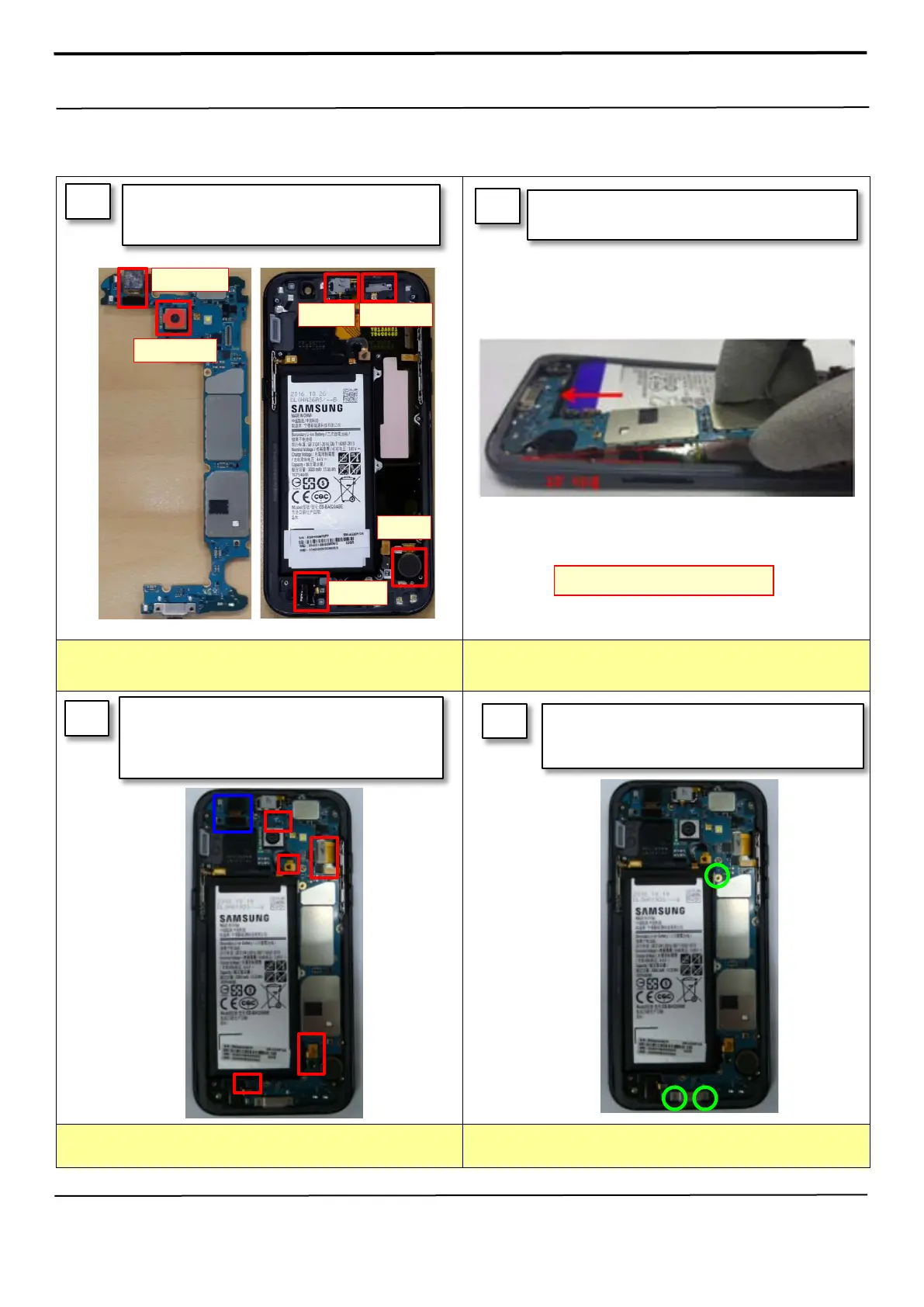

7-5. Assembly
※
1) Be care of FPCB damage and tilt
2) Be care of press power/time
※ Caution
1) Be care of chip damage nearby screw point
※ Caution
1) Be care of Battery damage.
※ Caution
1) Be care not to damage the PBA.
1
Attach components on Front.
(RCV module, Sensor FPCB, Motor) and then
2
Attach PBA assy In Front Assy.
(PBA+ Front)
3
Attach Battery connect and the other
connectors. (7 Points)
Attach Front Camera on PBA.
4
Screw PBA 3 points.
(Torque:1.2 Kgf·cm±7%)
PCB 15°angle
To Next Page
