FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
installation.
NOTE: If your cabinet is metal, use the nylon
grommet in the power cord hole to prevent the cord
from being cut.
NOTE: Filler blocks are required when mounting this
unit under any cabinet with a recessed bottom or
front overhang. (See page 9.)
from over tightening screws if you do not use
NOTE: When mounting the microwave oven, thread
the power cord through hole in the bottom of top
cabinet. Keep it tight throughout Steps 1–3. Do not
pinch the cord or lift the oven by pulling cord.

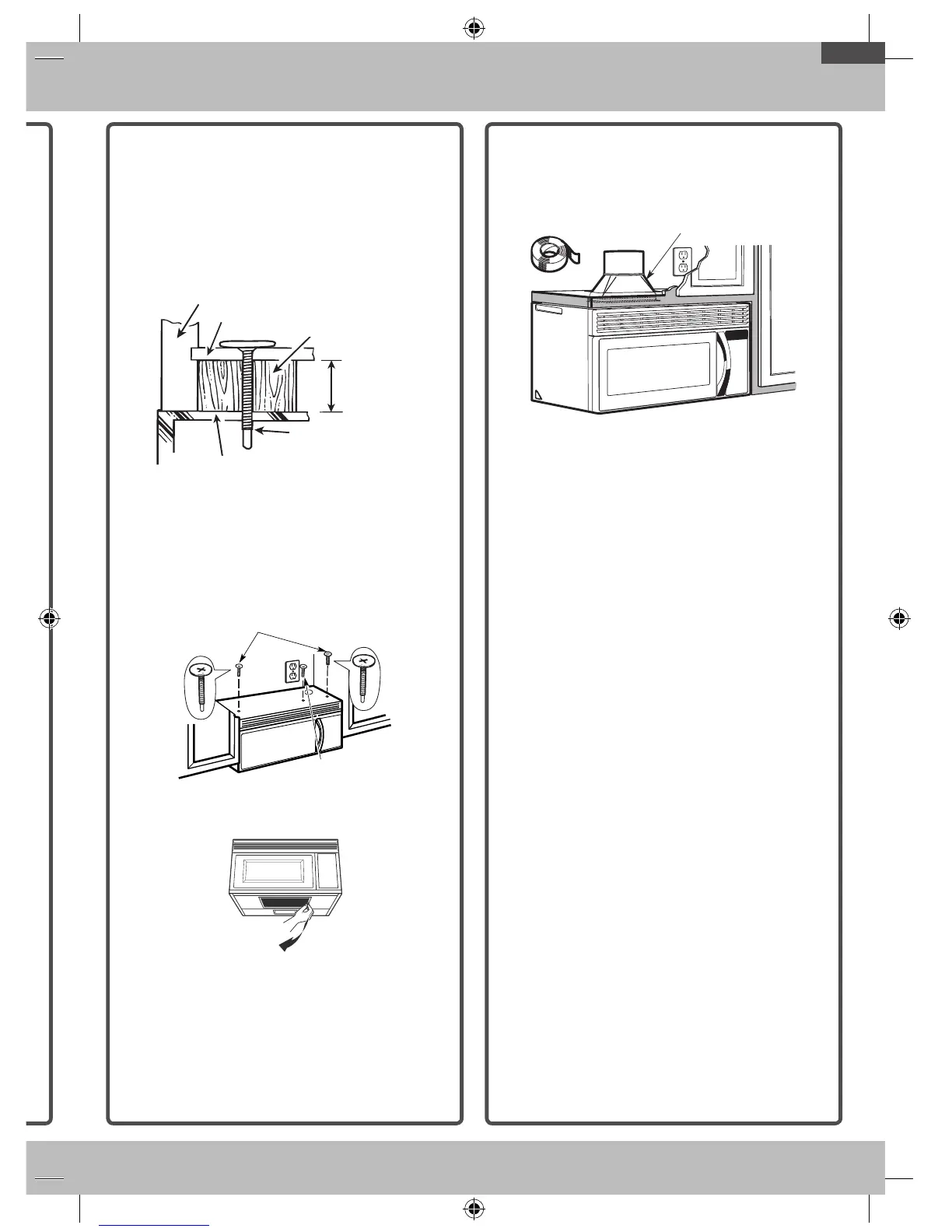

3. Insert a self-aligning screw through the top
center cabinet hole. Temporarily secure the oven
by turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later.) B
cord tight. Be careful not to pinch the cord,
especially when mounting flush to the
bottom of cabinet.
Cabinet Front
Filler Block
Microwave Oven Top
Self-Aligning Screw
Equivalent to
Depth of
Cabinet Recess
Cabinet Bottom Shelf
to Depth of
Microwave Oven Top
4. Attach the microwave oven to the top cabinet.
5. Insert the 2 self-aligning screws through the
cabinet bottom shelf and filler block into the
outer top cabinet of the unit. Continue to
support the unit until both screws are inserted
and engaged at least two full turns, then fully
tighten both screws until the unit is secure.
6. Install the grease filters. See the Owner’s Manual
packed with the microwave for instructions.
FOR OUTSIDE TOP
House Duct
1. Extend the house duct down to connect to the
exhaust adaptor.
2. Seal exhaust duct joints using duct tape.
SMH1816_XAA-DE68-03943A-02-EN_120725.indd 17 2012-07-25 �� 7:49:19
