User’s Manual 22
Setup
Attaching a base
NOTE : This monitor accepts a 75mm x 75mm VESA-compliant mounting interface pad.

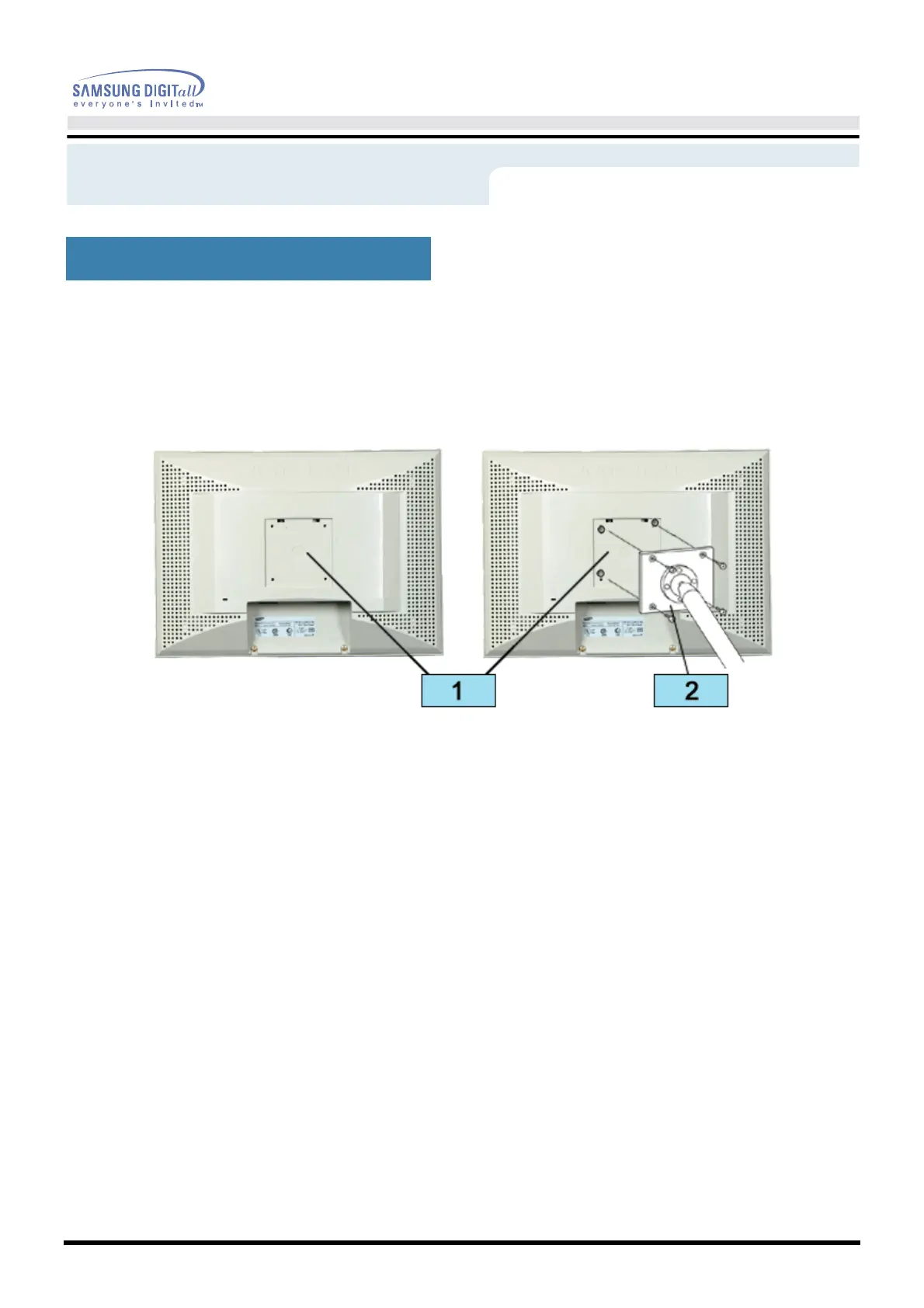

1 Rear cover mounting pad
2 Mounting interface pad
Align the Mounting Interface Pad with the holes in the Rear Cover Mounting Pad and secure it with
the four screws that came with the arm-type base, wall mount hanger or other base.
Installing VESA compliant mounting
