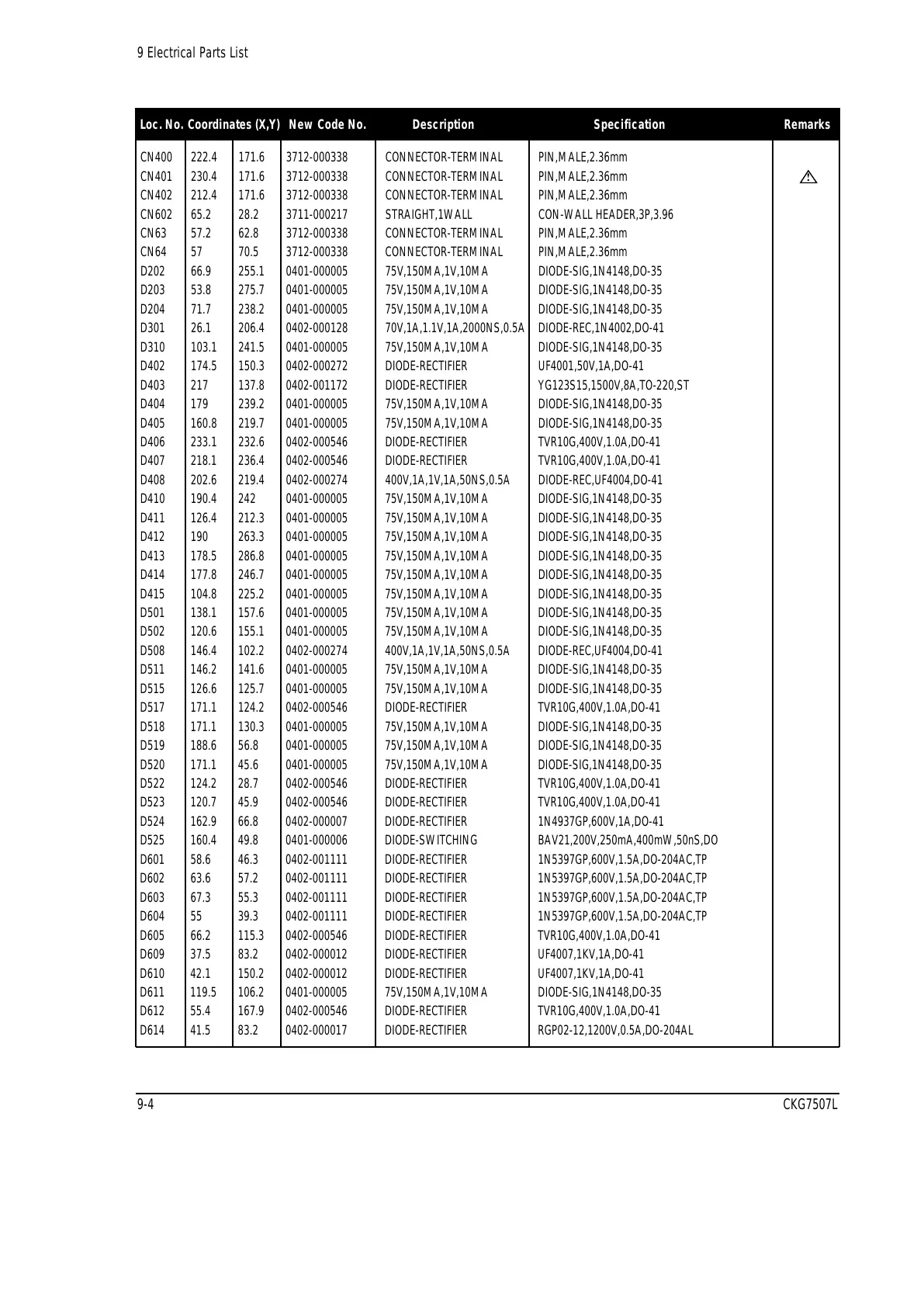

Samsung SyncMaster 700s Plus - Page 44

CN400 222.4 171.6 3712-000338 CONNECTOR-TERMINAL PIN,MALE,2.36mm
CN401 230.4 171.6 3712-000338 CONNECTOR-TERMINAL PIN,MALE,2.36mm
CN402 212.4 171.6 3712-000338 CONNECTOR-TERMINAL PIN,MALE,2.36mm
CN602 65.2 28.2 3711-000217 STRAIGHT,1WALL CON-WALL HEADER,3P,3.96
CN63 57.2 62.8 3712-000338 CONNECTOR-TERMINAL PIN,MALE,2.36mm
CN64 57 70.5 3712-000338 CONNECTOR-TERMINAL PIN,MALE,2.36mm
D202 66.9 255.1 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D203 53.8 275.7 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D204 71.7 238.2 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D301 26.1 206.4 0402-000128 70V,1A,1.1V,1A,2000NS,0.5A DIODE-REC,1N4002,DO-41
D310 103.1 241.5 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D402 174.5 150.3 0402-000272 DIODE-RECTIFIER UF4001,50V,1A,DO-41
D403 217 137.8 0402-001172 DIODE-RECTIFIER YG123S15,1500V,8A,TO-220,ST
D404 179 239.2 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D405 160.8 219.7 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D406 233.1 232.6 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41
D407 218.1 236.4 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41
D408 202.6 219.4 0402-000274 400V,1A,1V,1A,50NS,0.5A DIODE-REC,UF4004,DO-41
D410 190.4 242 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D411 126.4 212.3 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D412 190 263.3 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D413 178.5 286.8 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D414 177.8 246.7 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D415 104.8 225.2 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D501 138.1 157.6 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D502 120.6 155.1 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D508 146.4 102.2 0402-000274 400V,1A,1V,1A,50NS,0.5A DIODE-REC,UF4004,DO-41
D511 146.2 141.6 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D515 126.6 125.7 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D517 171.1 124.2 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41
D518 171.1 130.3 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D519 188.6 56.8 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D520 171.1 45.6 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D522 124.2 28.7 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41
D523 120.7 45.9 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41
D524 162.9 66.8 0402-000007 DIODE-RECTIFIER 1N4937GP,600V,1A,DO-41
D525 160.4 49.8 0401-000006 DIODE-SWITCHING BAV21,200V,250mA,400mW,50nS,DO
D601 58.6 46.3 0402-001111 DIODE-RECTIFIER 1N5397GP,600V,1.5A,DO-204AC,TP
D602 63.6 57.2 0402-001111 DIODE-RECTIFIER 1N5397GP,600V,1.5A,DO-204AC,TP
D603 67.3 55.3 0402-001111 DIODE-RECTIFIER 1N5397GP,600V,1.5A,DO-204AC,TP
D604 55 39.3 0402-001111 DIODE-RECTIFIER 1N5397GP,600V,1.5A,DO-204AC,TP
D605 66.2 115.3 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41
D609 37.5 83.2 0402-000012 DIODE-RECTIFIER UF4007,1KV,1A,DO-41
D610 42.1 150.2 0402-000012 DIODE-RECTIFIER UF4007,1KV,1A,DO-41
D611 119.5 106.2 0401-000005 75V,150MA,1V,10MA DIODE-SIG,1N4148,DO-35
D612 55.4 167.9 0402-000546 DIODE-RECTIFIER TVR10G,400V,1.0A,DO-41
D614 41.5 83.2 0402-000017 DIODE-RECTIFIER RGP02-12,1200V,0.5A,DO-204AL
!
9 Electrical Parts List
9-4 CKG7507L
Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks
