16
English
Connections

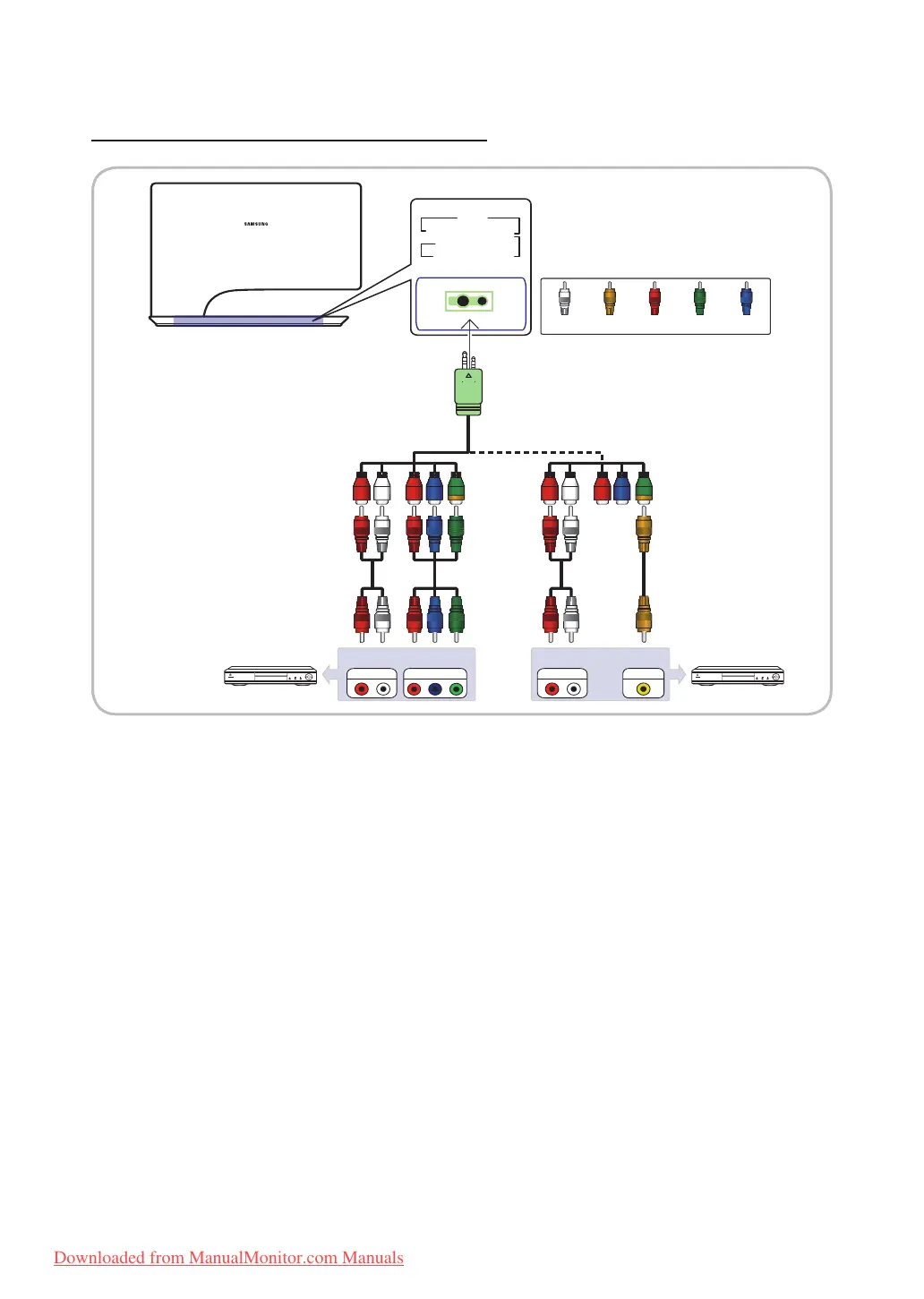

Using a Component (up to 1080p) or an Audio/Video (480i only)
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, VCR
✎
When connecting to AV IN, the colour of the AV IN [VIDEO] jack (green) will not match the video cable (yellow).
✎
To obtain the best picture quality, the Component connection is recommended over the A/V connection.
BR G Y
Y
R W
BR GYW
R W
R W
R WBR G
AV IN
VIDEO
Y P
B R
P
AUDIO
COMPONENT IN
Device
VCR / DVD
Device
RedWhite Yellow BlueGreen
COMPONENT OUT VIDEO OUTAUDIO OUT AUDIO OUT
