Using a Component (up to 1080p) or an Audio/Video (480i only)
✎ When connecting to AV IN, the colour of the AV IN 1 [VIDEO] jack (green) will not match the video cable
(yellow).
✎ To obtain the best picture quality, the Component connection is recommended over the A/V
connection.
AUDIO OUT
R-AUDIO-L
VIDEO OUT
AUDIO OUT
R-AUDIO-L
VIDEO OUT
AUDIO OUT
R-AUDIO-L
P
R
P
B
Y
COMPONENT OUT
G
G
B
B
R
RR
R
W
W
R
R
Y
Y
W
W

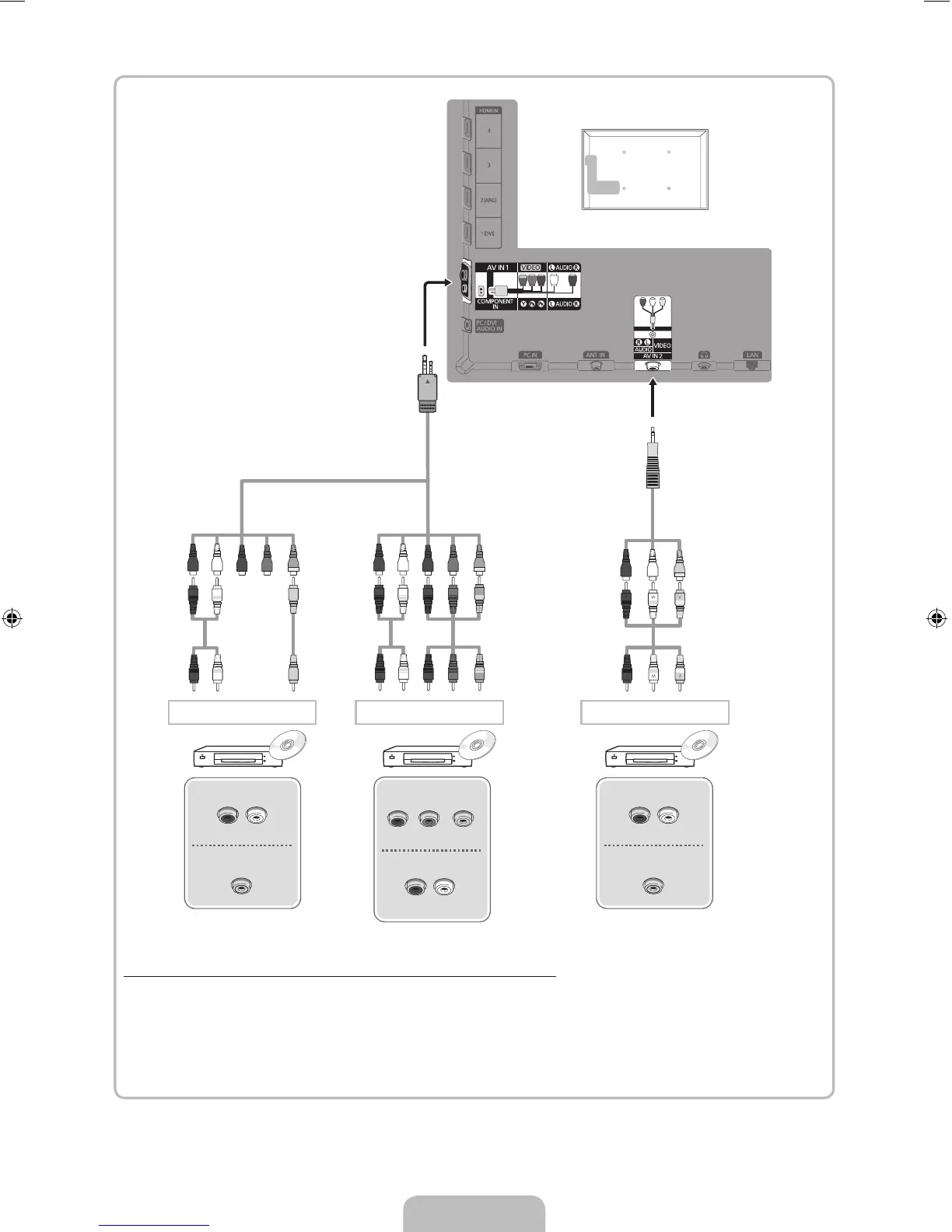

Component connection AV connectionAV connection
