02 Connections

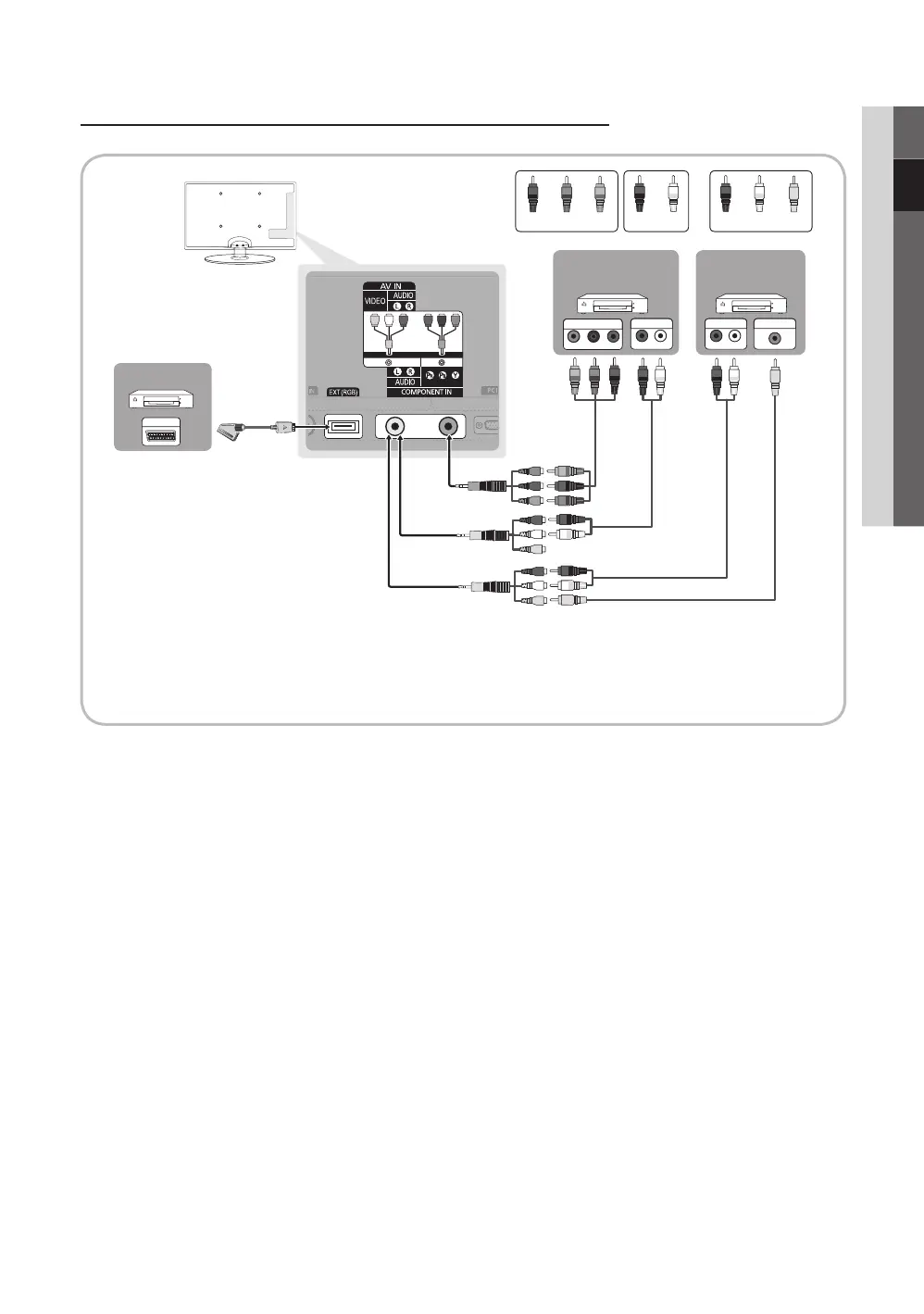

Using a Component (up to 720p/1080i) or Audio/Video (480i only) and Scart Cable
Available devices: VCR, DVD, Blu-ray player, cable box, STB satellite receiver
✎
In Ext. mode, DTV Out supports MPEG SD Video and Audio only.
✎
To obtain the best picture quality, the Component connection is recommended over the A/V connection.
✎
If the size of the cable mold part was an abnormal shape, the part may not be connected to the input port
properly.
Y
W
R
W
R
R
G
B
EXT
PRPBY
COMPONENT OUT
VIDEO OUTAUDIO OUT
R-AUDIO-L
AUDIO OUT
R-AUDIO-L
G
B
W R
Y
W R
R
B
G
Y
WRWR
R
VCR / DVD
VCR
RedRed WhiteWhite YellowRed Blue Green
DVD /
Blu-ray player
