Samsung UE32ES6307U User Manual

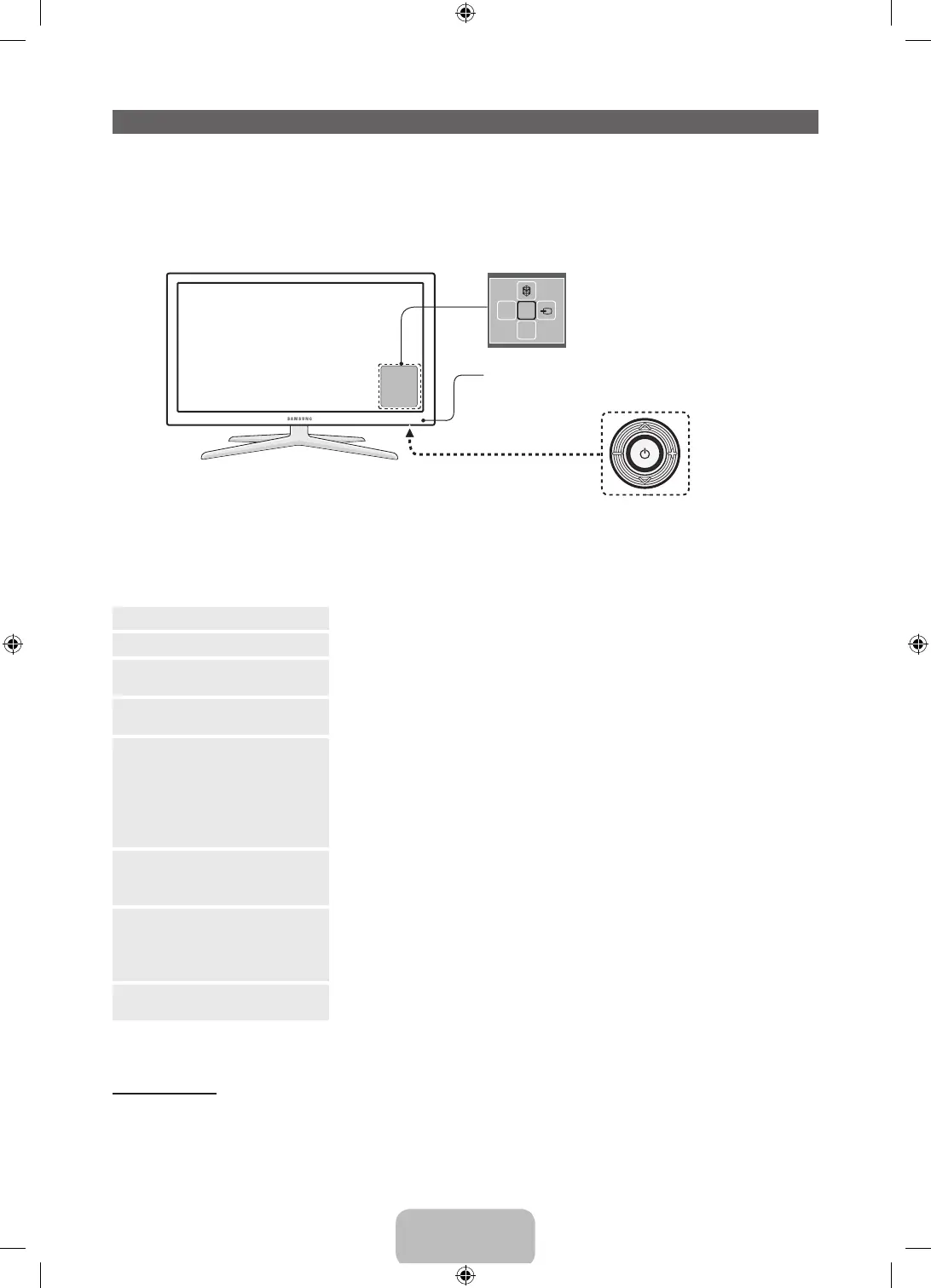

Using the TV's Controller (Panel Key)
TV Controller is a multi directional button that helps navigate without remote control.
✎
Some functions which require a PIN code may not be available.
✎
The product colour and shape may vary depending on the model.
✎
The TV's Controller, a small joy stick like button on the rear right side of the TV, lets you control the TV
without the remote control.
mR
P
Function menu
Remote control sensor
TV Controller
The image is drawn by facing
the front side of the TV.
✎
Follow these instructions facing the front of your TV.
✎
When selecting the function by moving the controller to the upwards/downwards/left/right directions,
be sure not to press the controller. If you press it first, you cannot operate it to move the upwards/
downwards/left/right directions.
Power on Turn the TV on by pressing the Controller when the TV is in standby mode.
Adjusting the volume Adjust the volume by moving the Controller from side to side when the power is on.
Selecting a channel Select a channel by moving the Controller upwards and downwards
when the power is on.
Using the Function menu
To view and use the Function menu, press and release the Controller when the
power is on. To close the Function menu, press and release the Controller again.
Selecting the MENU (m) With the Function menu visible, select the MENU (m) by moving the
Controller to the left. The OSD (On Screen Display) Menu appears.
Select an option by moving the Controller to the right. Move the
Controller to the right or left, or upwards and downwards to make
additional selections. To change a parameter, select it, and then press
the Controller.
Selecting the SMART HUB
(™)
With the Function menu visible, select SMART HUB (™) by moving the
Controller upwards. The SMART HUB main screen appears. Select an
application by moving the Controller, and then pressing the Controller.
Selecting a Source (s)
With the Function menu visible, open the Source (s) by moving the Controller
to the right. The Source screen appears. To select a source, move the Controller
upwards and downwards. When the source you want is highlighted, press the
Controller.
Power off (P) With the Function menu visible, select Power off (P) by moving the
Controller downwards, and then press the Controller.
✎
To close the Menu, Smart Hub, or Source, press the Controller for more than 1 second.
Standby mode
Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric
power. To be safe and to decrease power consumption, do not leave your TV in standby mode for long
periods of time (when you are away on vacation, for example). It is best to unplug the power cord.
English - 5
[UE6300-RU]BN68-04108V-00L03.indb 5 2012-05-11 �� 11:33:44

Samsung UE32ES6307U Specifications

General

Display diagonal	32 \
LED backlighting type	-
Display diagonal (metric)	80 cm
3D	Yes
Tuner type	Analog & digital
Digital signal format system	DVB-C, DVB-S2, DVB-T2
RMS rated power	20 W
Number of speakers	2
PC in (D-Sub)	No
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Number of OSD languages	29
Product color	Black, Grey
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	50 W
Package weight	9800 g

Weight and Dimensions

Depth (with stand)	241.3 mm
Height (with stand)	514.8 mm
Weight (with stand)	7700 g
Depth (without stand)	46.9 mm
Width (without stand)	739.6 mm
Height (without stand)	448 mm
Weight (without stand)	6500 g
