English - 5

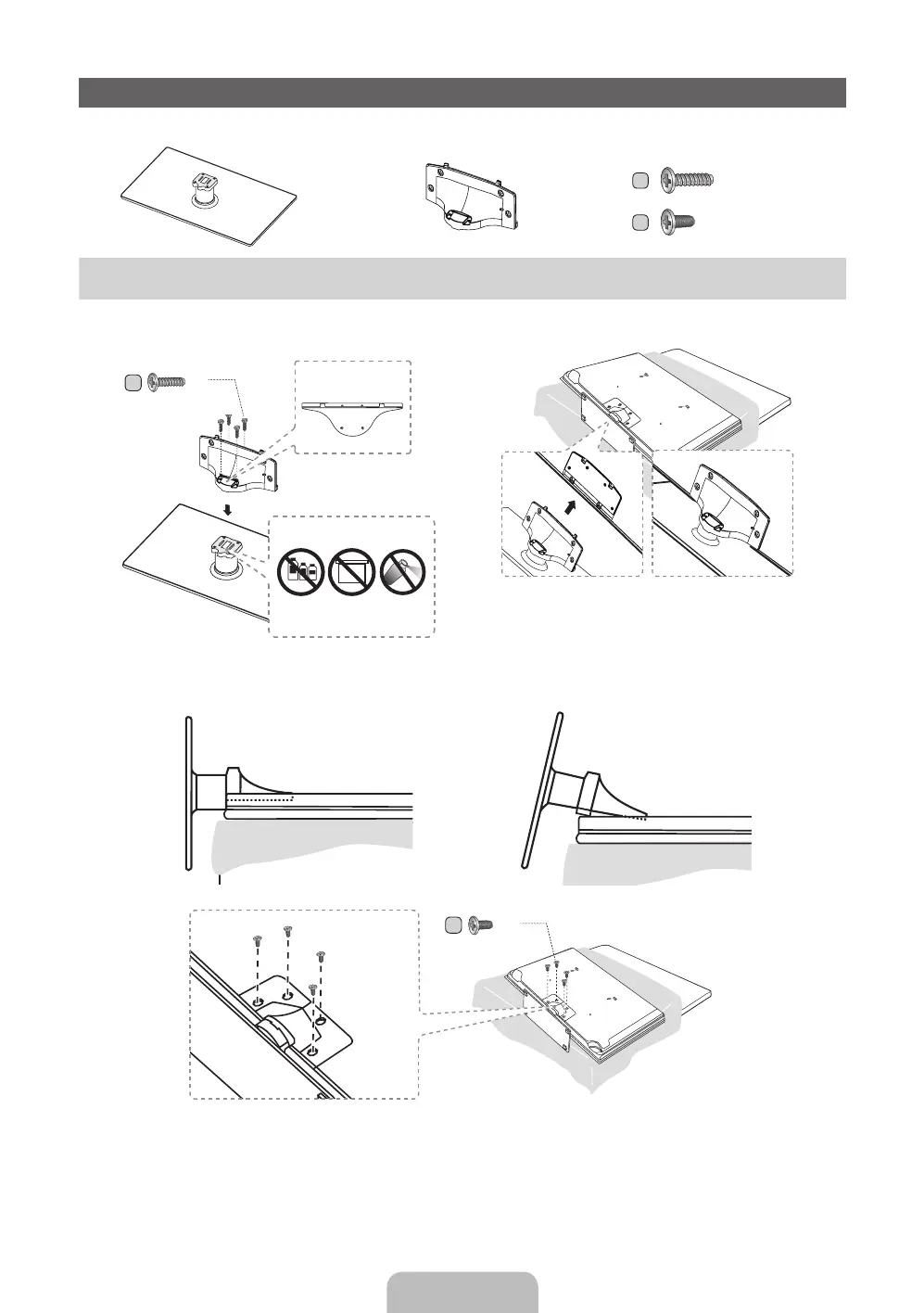

Install the Stand
See the separate stand installation guide for more detailed instructions.
Stand (1EA)
(depending on the model)
Guide Stand (1EA) Screws (9EA)
Follow the steps below to connect the TV to the stand.
1 2
✎
Place a soft cloth over the table to protect the TV, and
then place the TV on the cloth screen side down.
✎
Place a soft cloth over the table to protect the TV, and
then place the TV on the cloth screen side down.
3 Side View
4
✎
NOTE
y Make sure to distinguish between the front and back of each component when assembling them.
y Make sure that at least two persons lift and move the TV.
x 4 (M4 X L8)
x 4 (M4 X L12)
C
D
Top view
C
x 4
(M4 X L12)
ATTENTION
DO NOT USE
CHEMICALS
DO NOT USE
GREASE
DO NOT
USE OIL
(Correct assembly)
(Incorret assembly)
D
x 4
(M4 X L8)
[UD5550-ZA]BN68-03372A-00Eng.indb 5 2011-01-20 오후 9:33:48
