Samsung UN55D7000LF - LED 7050 Series Stand Assembly; LED 7050 Series Stand Assembly Steps; Notes on Stand Assembly

English - 6
for LED 7050 Series
Assembling the Holder-Wire stand
✎ NOTE
x
Make sure to distinguish between the front and back of each component when assembling them.
x
Make sure that at least two persons lift and move the TV.
x
Stand the product up when you fasten the screws. If you fasten the screws with the TV lying down, it may lean to one
side when you stand it up.

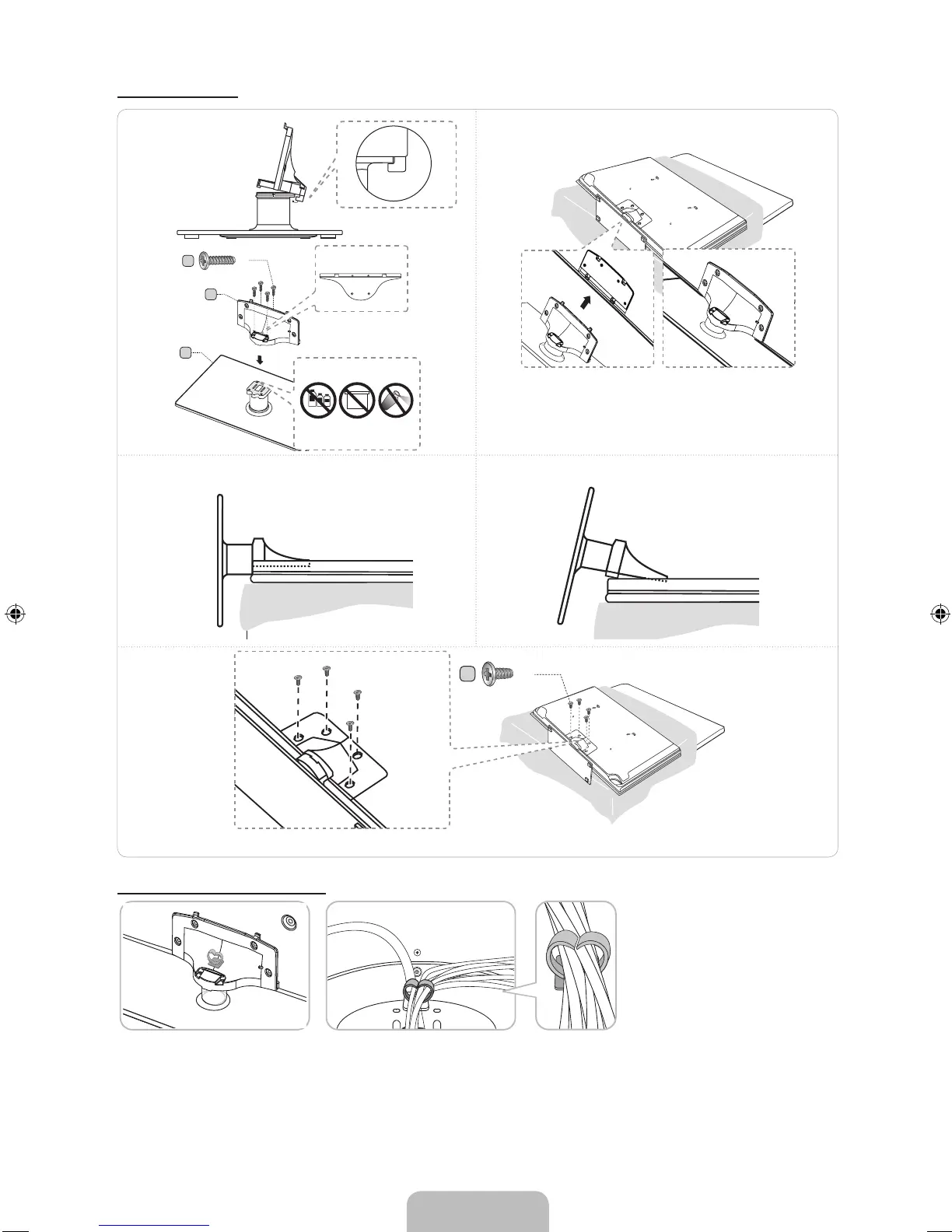

Side View
(Correct assembly) (Incorrect assembly)
1
2
3
4
5
D
(M4 X L8)
x4
B
A
Front
C
(M4 X L12)
x4
Top View
DO NOT USE
CHEMICALS
DO NOT USE
GREASE
DO NOT USE
OIL
ATTENTION
✎ P lace a soft cloth over the table to protect the TV,
and then place the TV on the cloth screen side down.
✎ Insert the Stand Guide into the slot of TV bottom
side.
Rear
