Alignment and Adjustment
2-1-2 Test point location for adjustment mode setting

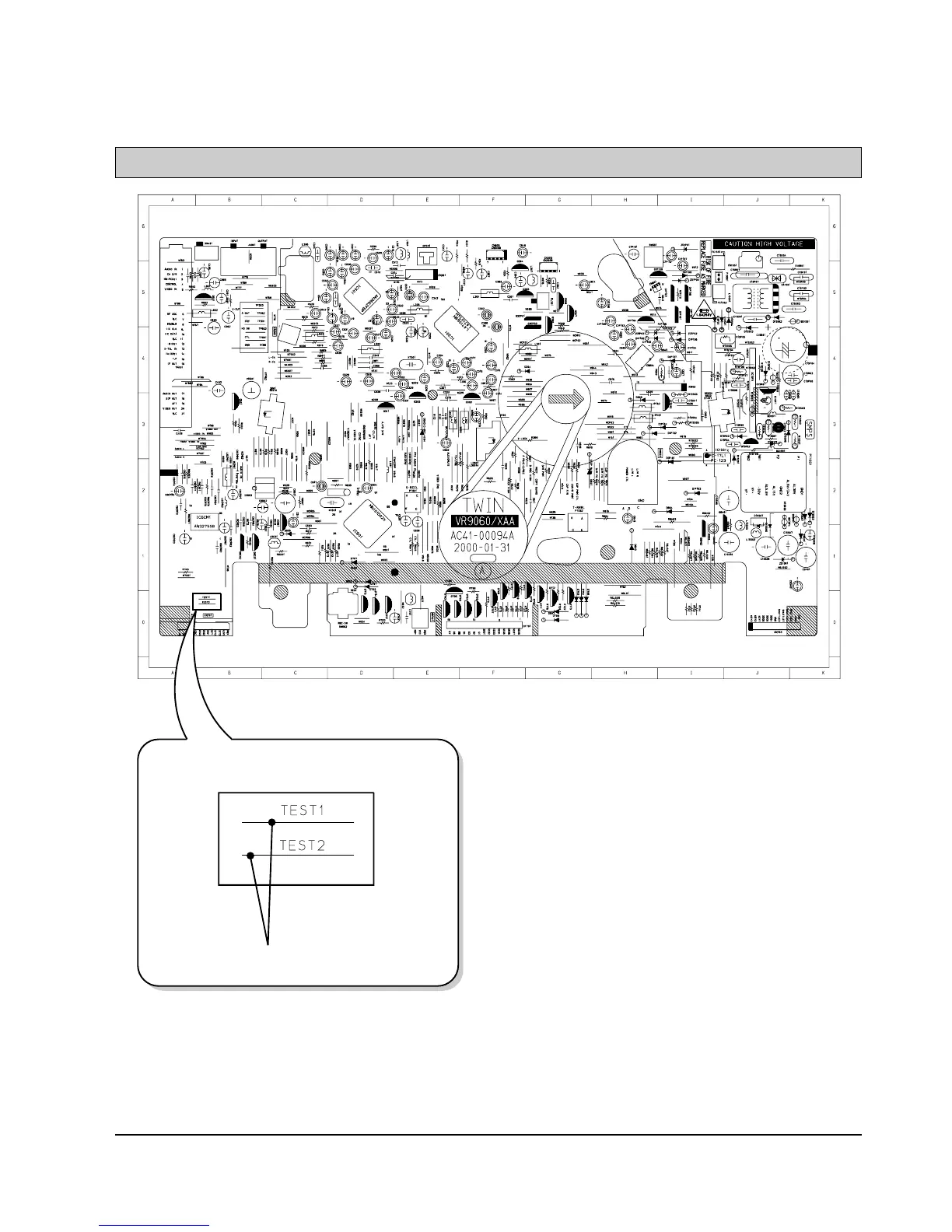

Fig. 2-2 Main PCB (Top View)
Short-Circuit for a seconds (Just one time)
Application Models ; VR9070/9060/9800C/9770C
