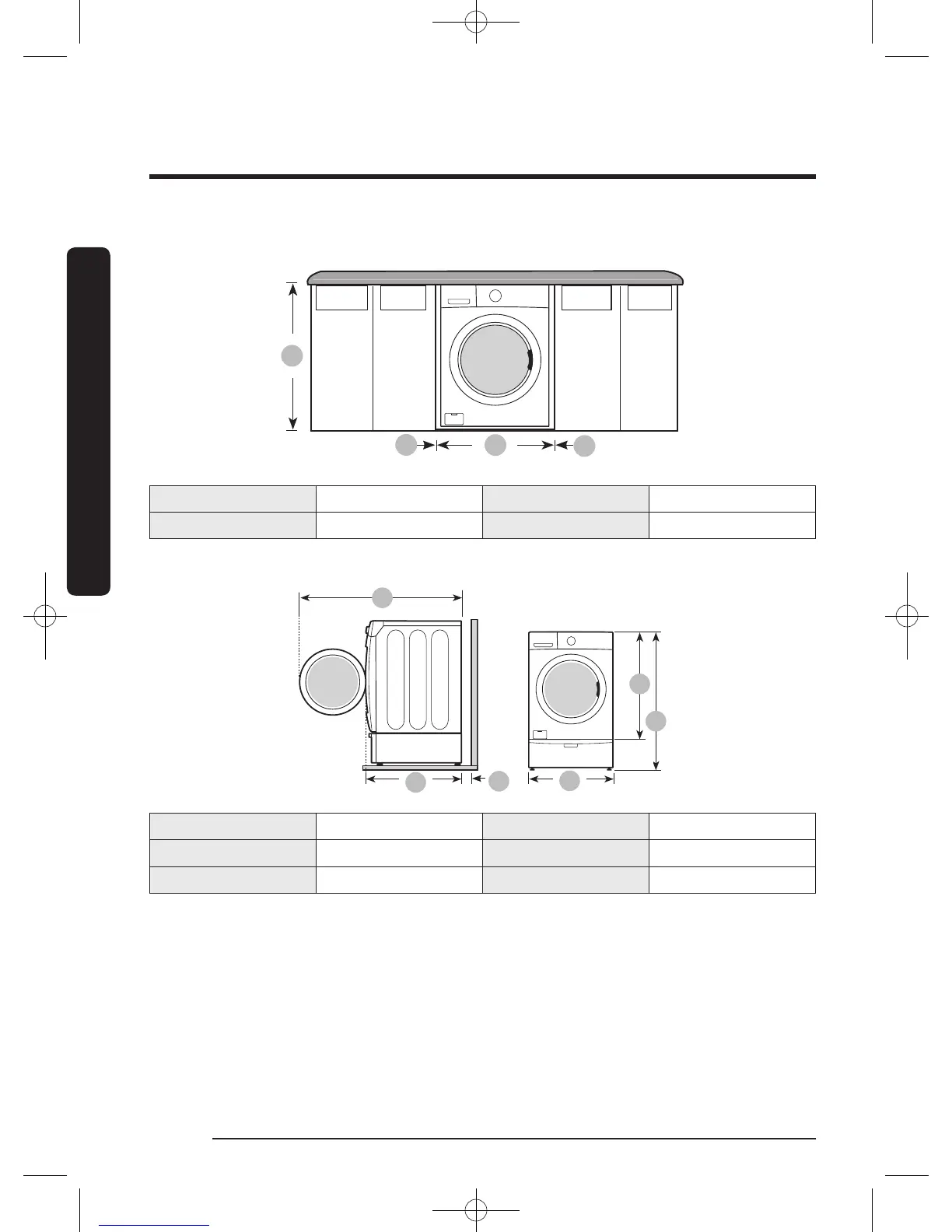

Undercounter installation
B
D
C
A
A 39.6 in. (1006 mm) C 27 in. (686 mm)
B 1 in. (25 mm) D 1 in. (25 mm)
Installation on a pedestal
A
B
D
E
F
C
A 54.6 in. (1386 mm) D 27 in. (686 mm)
B 34 in. (864 mm) E 38.7 in. (984 mm)
C 5.9 in. (150 mm) F 53.4 in. (1356 mm)
