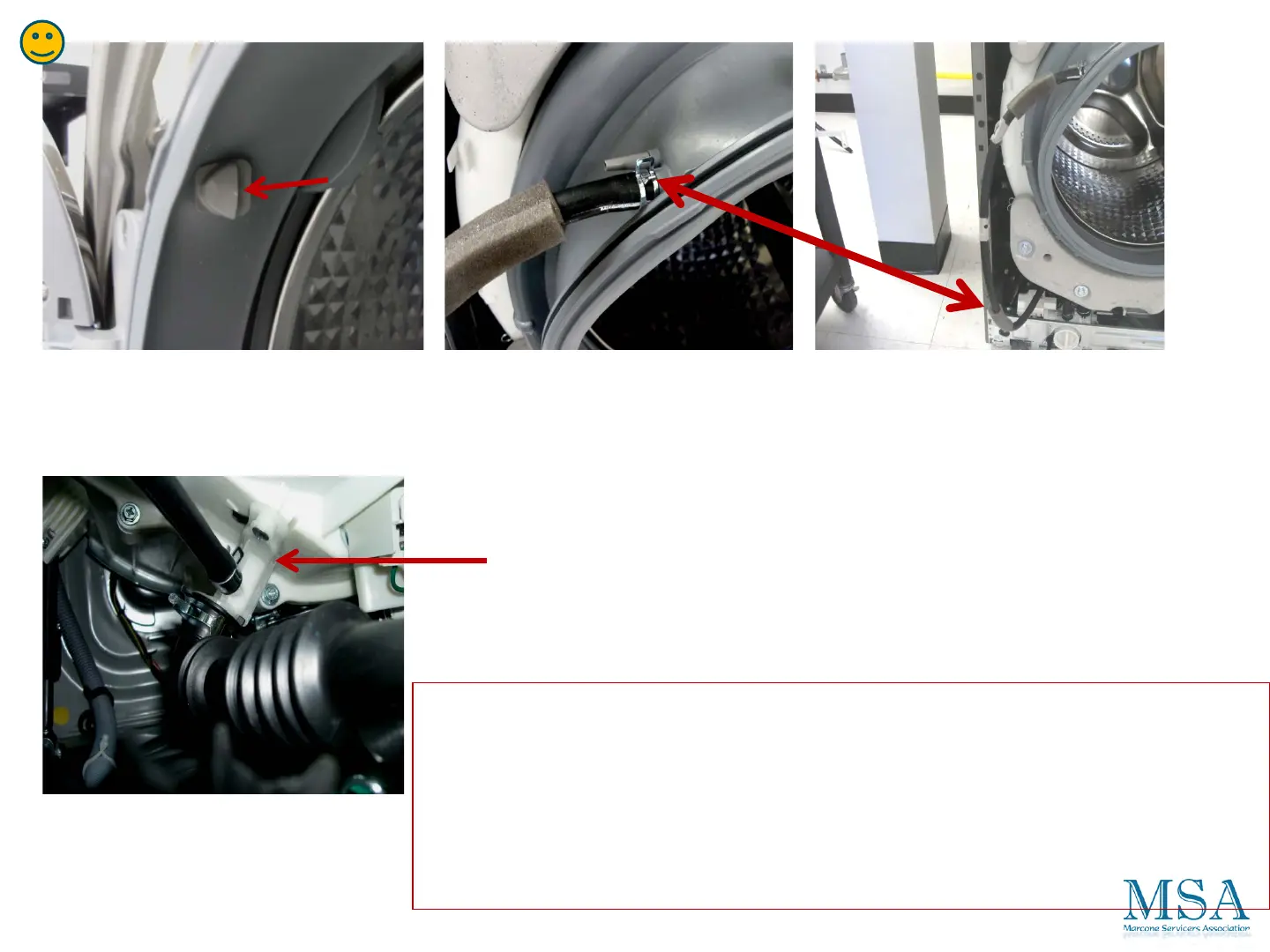

Air is being drawn in
from this nozzle.
The air passes through this hose to the
bottom of the outer drum.
At this point the air mixes with the
detergent and water that is in the
outer tub.
Air is drawn in from the inner tub and re-
circulated down into the bottom of the outer tub.
Once the air enters the bottom of the outer tub it
then mixes with the water and detergent that is at
the bottom of the tub which creates the foam.
Recirculation Pump is
our new “Bubble”
creating device.
