Welcome for choosing and using our PS1016 intelligent pressure gauge. This manual enunciates the
functions and methods for use of intelligent pressure gauge in detail. Before using this intelligent pressure
gauge, please refer to this manual for your correct use.
Functions and Purpose of Use
Researched and manufactured by our company, PS1016 intelligent pressure gauge is a control instrument,
first of it’s kind produced in China. Not only does it assimilate the strongpoint of the similar foreign
products, but also it boasts its own characteristics, especially applicable for measuring and controlling
temperature and pressure at an identical point for high-temperature melting articles. This instrument
features fine appearance and complete functions with excellent anti-jamming performance, which ensures
reliable operation of the system.
This instrument adopts two-level four-bit led, respectively displaying actual pressure value and setting
value. Annunciate or be possessed of pressure upper limit or lower limit, which can be output via relay
contact, voltage pulse, bi-directional silicon-controlled trigger, and two-circuit constant current (or constant
pressure). Programs can be debugged fully automatically through panel operation and what you should do
for system calibration is just to push down buttons lightly. This instrument employs three kinds of
anti-jamming methods to ensure reliable functioning of the instrument: firstly, separate input from
microprocessor via photoelectric isolation circuit; secondly, adopt anti-jamming methods by applying of
software to ensure steady operation of software; and lastly, apply hardware program to monitor the system
and to enable automatic recovery of system program to normal operation after being jammed. It has been
proved through practice that high reliability can be ensured of system software by using the above
anti-jamming methods. System can thus function steadily and reliably.
This instrument is widely used for measuring and controlling of pressure of high-temperature melting
articles in industries such as petroleum, chemical fibers and plastics.
Main Technical Specifications and Performance
1). Digital display: two-level four-bit display;
2). Internal resolution: 32000;
3).External resolution: pressure, 0.01Mpa, 0.02Mpa, 0.05Mpa
panel switch (power-off protection installation40 years);
4). Nonlinearity:
0.5%±1 word, 0.2%±1 word, 0.1%±1 word, 0.05%±1 word;
5). Two-circuit alarm setup: pressure upper limit:
0~99.99Mpa, lower limit: 0~99.99Mpa;
6). Rated value of relay: 250VAC, 5A;
7). Operation environment:-10~+50, 80%RH;
8). Power supply: 85~265VAC;
9). Continuous working time: long period;
10). Aperture size: 9090110(mm).
Outside and structural dimensions

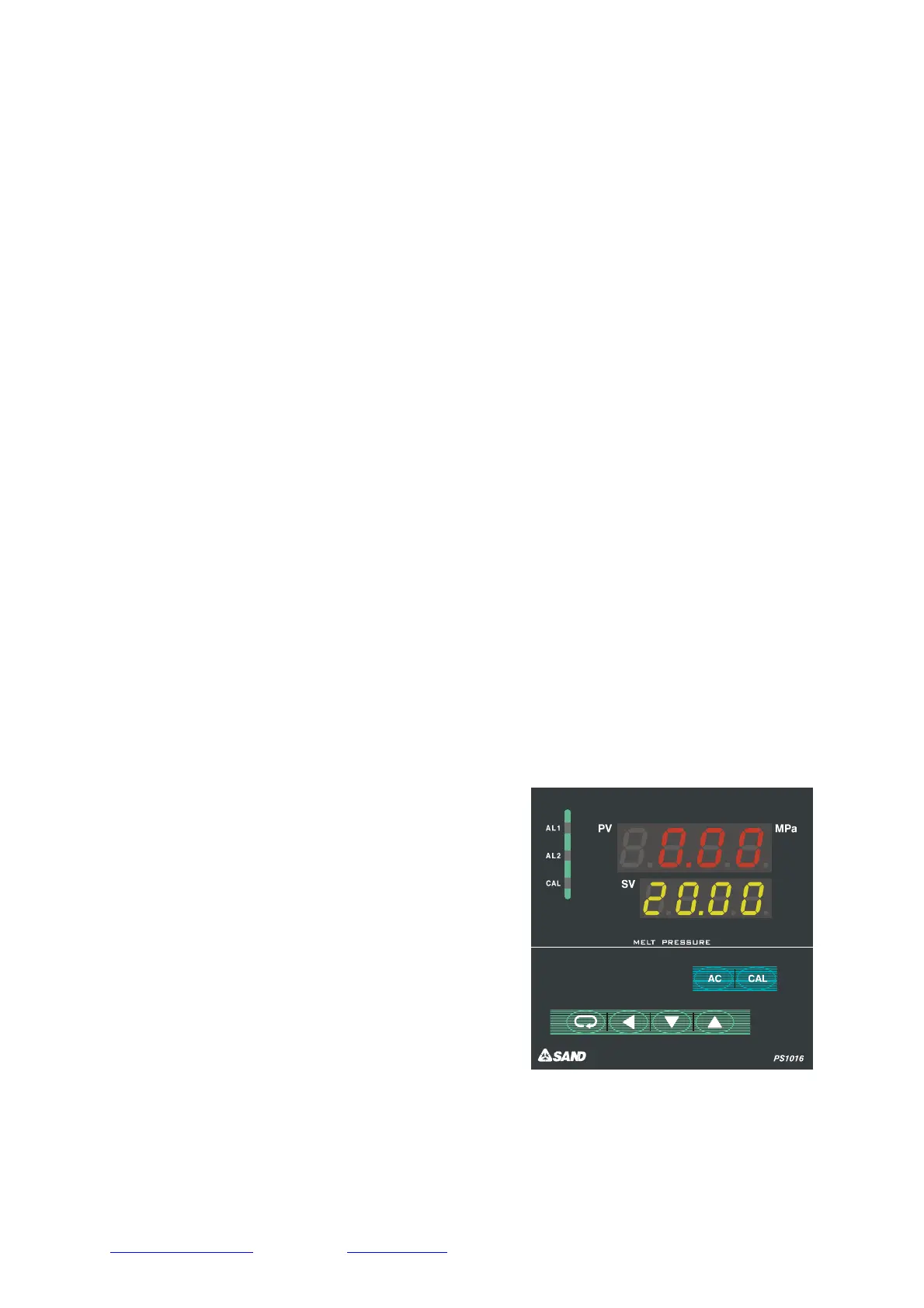

Display Window
Upper display window: displays measured value of actual pressure as well as parameter codes when
modifying internal parameters.
Lower display window: displays measured value of actual pressure as well as parameter amended when
modifying internal parameters.
