S&C PME Pad-Mounted Gear User Manual

10 S&C Instruction Sheet 665-506
Installation
After mounting the enclosure to the mounting pad, the deflectors are to be assembled
to the unit. First, bolt one of the large deflectors to the bottom of a switch or fuse compart-
ment frame using the supplied B\zn-inch serrated nuts. Refer to Figures 6, 7, and 8. Repeat
for the other compartment(s).

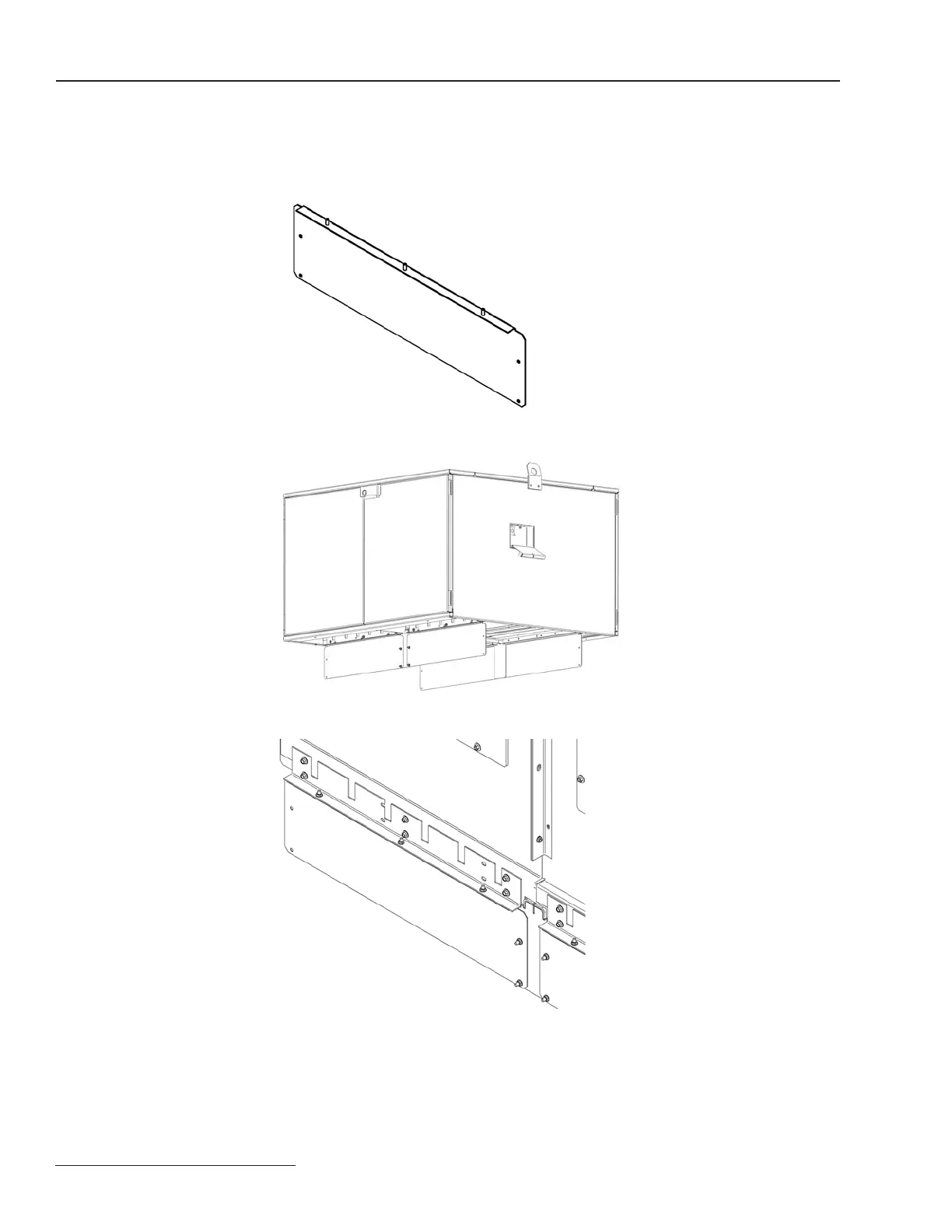

Figure 6. Large deflector.
Figure 7. Deflector assembly.
Figure 8. Close-up of deflector assembly.
