S&C Instruction Sheet 665-506 7
Installation
TO CLOSE DOORS: Close the left-hand door, where applicable, and secure it with the
latch by rotating the latch downward over the stop on the outer edge of the door. See
Figure 3. The right-hand door of double-door models of pad-mounted gear is equipped with
the Penta-Latch Mechanism which latches automatically when the door is closed. To close
a door equipped with the Penta-Latch Mechanism, place one hand at the midpoint of the
door-front near the edge and firmly push the door closed. See Figure 2 on page 6. When
the latch points are positively engaged, the spring mechanism will trip to latch the door.
Pull outward on the cover of the Penta-Latch Mechanism to verify that the door has
latched securely. If it has not, use a pentahead (or hexhead, when applicable) socket
wrench or tool to rotate the actuator counterclockwise until a distinct “click” is heard
and the actuator reaches its stop. If the actuator will not rotate counterclockwise, the
mechanism was already charged for closing but was not closed properly. Close the door
again, making sure that all latch points engage completely and simultaneously. Once the
door is securely latched, a padlock may be inserted into the hasp.

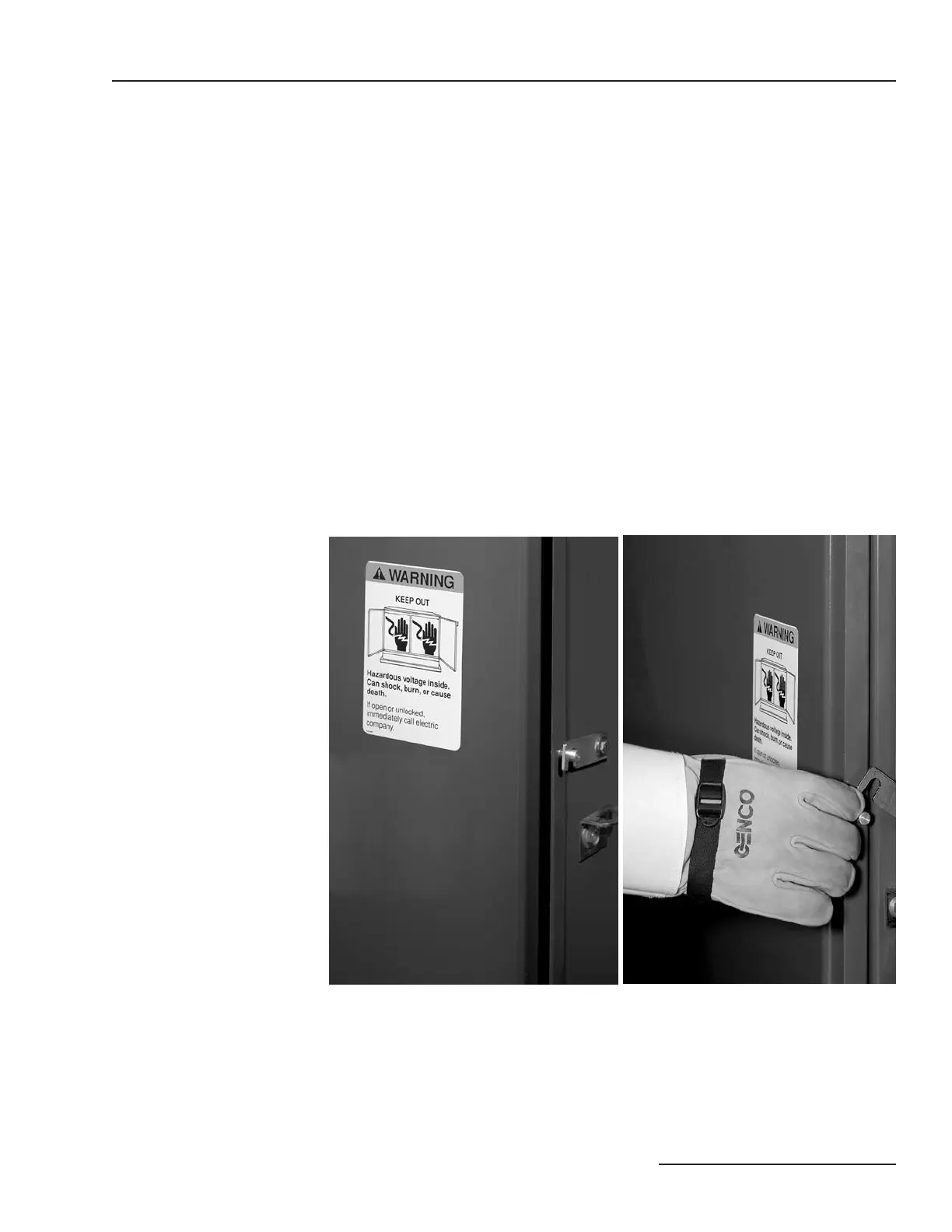

Rotating latch secures left-hand-door of
double-door models closed.
Rotate latch upward to disengage left-hand
door as shown above. To secure left-hand
door closed, rotate latch downward over stop
on outer edge of door.
Figure 3. Left-hand door retainer.
