V21 Parts & Service Manual
All V21 Identified Equipment
REV A – 10/2013
P/N: 1230247
V21 General Information | G-9
ALIGNMENT CHECKS
REFRIGERATION AREA CHECK:

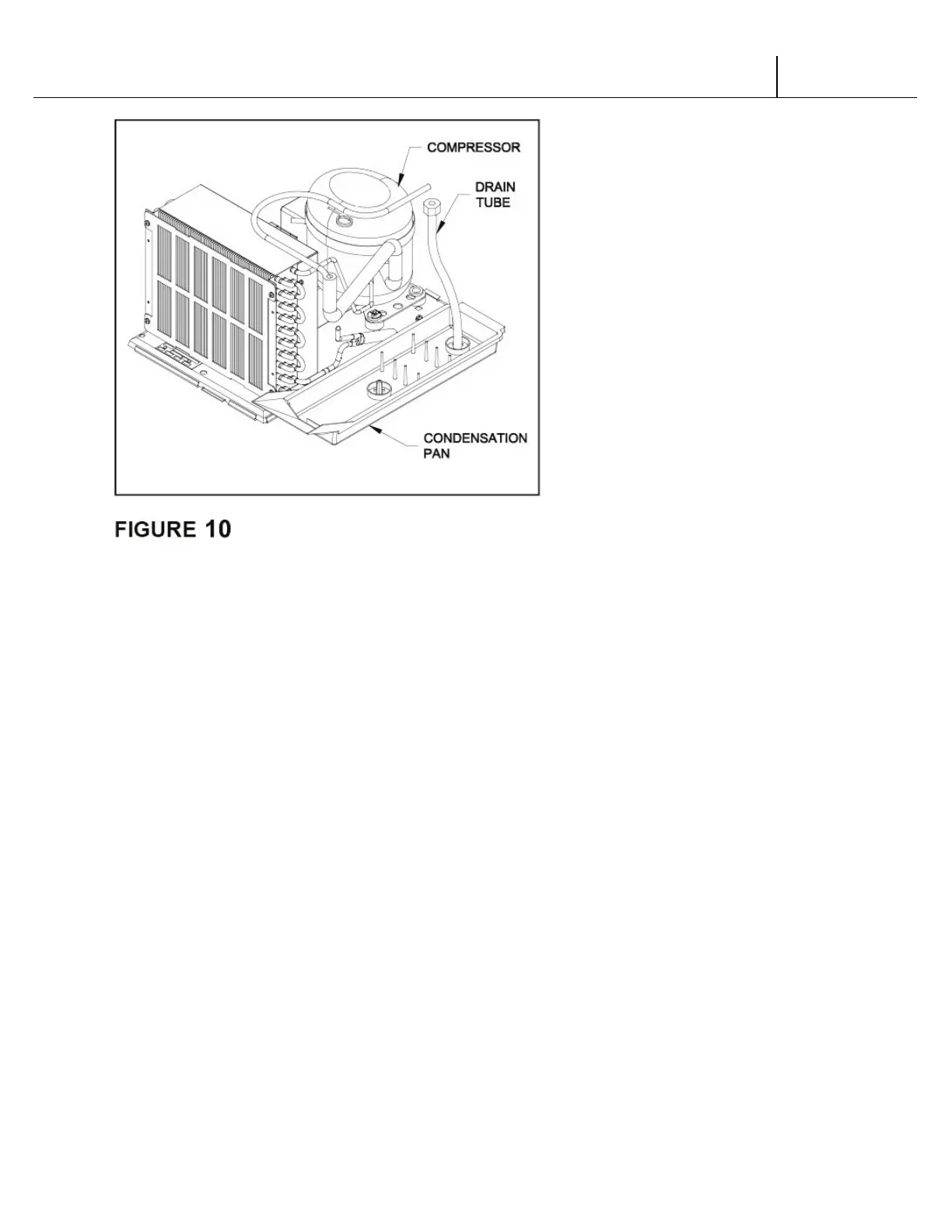

Check the position of the condensation pan (see Figure 10). The correct position of the pan is on
the right hand side of the vendor with the ramp of the pan just outside the right hand air dam.
Be sure the drain tube is attached to the pan and is free of kinks. A water trap is installed into
the condensation pan and will prevent warm, moist air from reaching the evaporator area.
LOADING INSTRUCTIONS
BASIC LOAD SET-UP (see Figure 11 on next page):
The V21 machine is capable of vending a variety of products. For specific information, refer to
the product set-up label on the machine inner door or contact the Technical Services
Department of the SandenVendo America, Inc. office in your area.
Load product evenly. Product is to be loaded differently depending on the type of product
being vended. Use the directions in Figure 6 in the PRODUCT LOADING section to determine
how to load a specific product.
To maintain the integrity of the stack, never move a vending machine when it is loaded.
