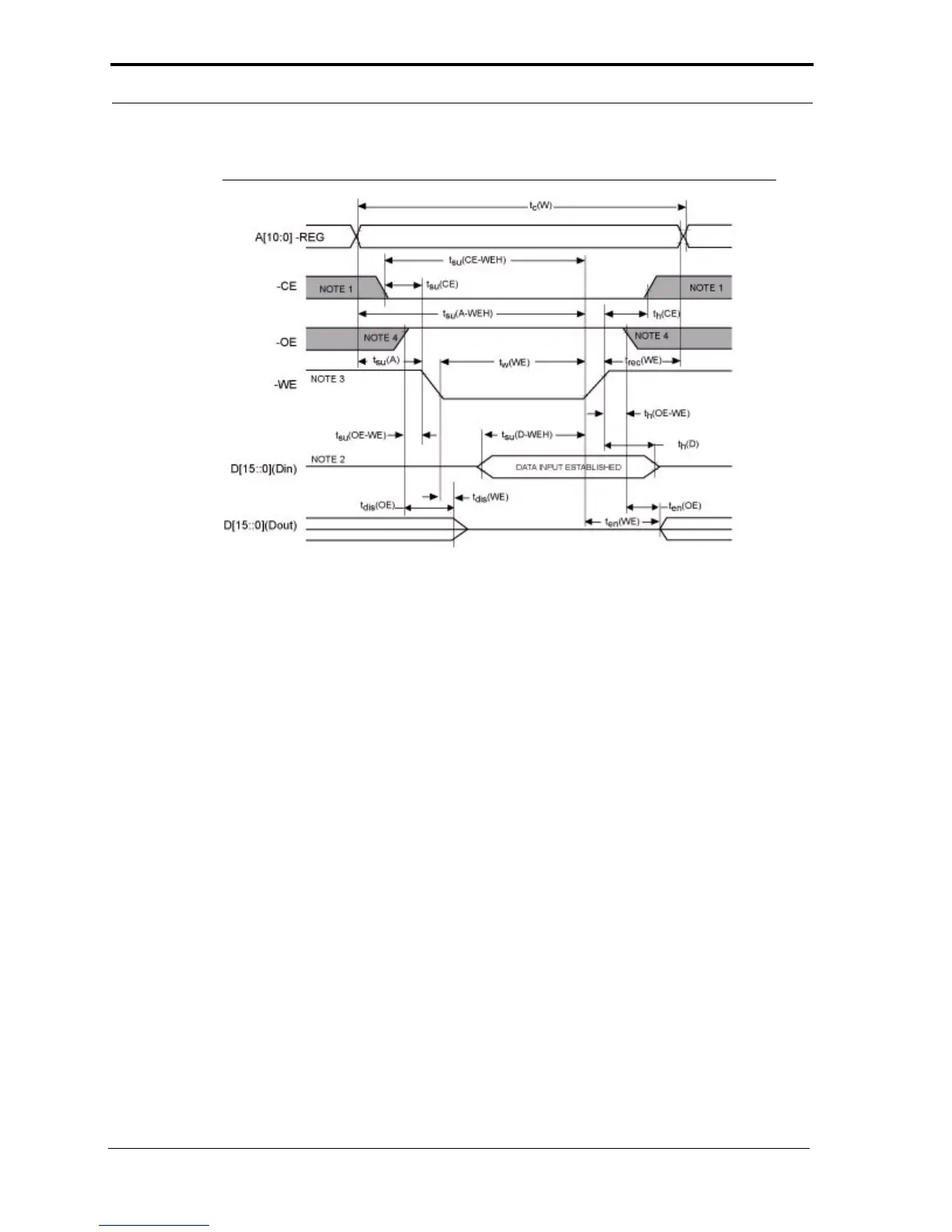

Figure 3-4 Common and Attribute Memory Write Timing Diagram
NOTE 1: Shaded areas may be high or low.
NOTE 2: When the data I/O pins are in the output state, no signals shall be applied to
the data pins (D[15::0]) by the host system
NOTE 3: May be high or low for write timing, but restrictions on -OE from previous
figures apply.
NOTE 4: SanDisk CompactFlash Memory Cards do not assert the -WAIT signal.
