Interface Description SanDisk CompactFlash Card OEM Product Manual
Table 3-13 I/O Read (Input) Timing Specification
Item
Symbol
IEEE Symbol Min. (ns) Max. (ns)
-IOIS16 Delay falling from Address t
df
IOIS16(ADR) t
AVISL
---
35
a
-IOIS16 Delay rising from Address t
dr
IOIS16(ADR) t
AVISH
---
35
a
a. The maximum load on -INPACK and -IOIS16 is 1 LSTTL with 50 pF total load.
3.3.9 I/O Write (Output) Timing Specification

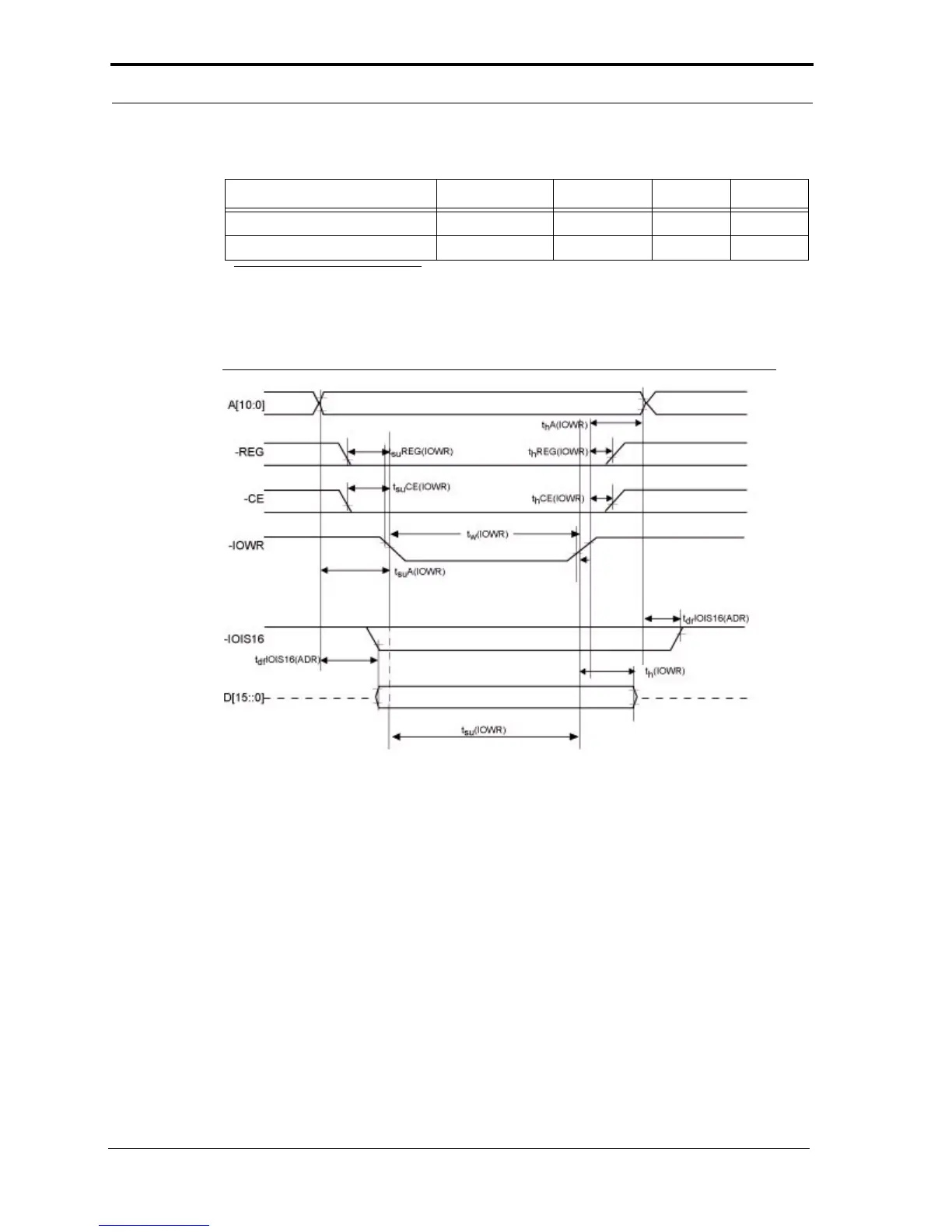

Figure 3-6 I/O Write Timing Diagram
NOTE 1: All timings are measured at the CompactFlash Memory Card.
NOTE 2: Skews and delays from the host system driver/receiver to the
CompactFlash Memory Card must be accounted for by the system design.
NOTE 3: D[15::0] signifies data provided by the host system to the CompactFlash
Memory Card.
