SanDisk CompactFlash Card OEM Product Manual Interface Description
• PIO Data Transfers
Figure 3-8 defines the relationships between the interface signals for PIO data transfers.
For PIO Modes 3 and above, the minimum value of t
0
is specified by Word 68 in the
IDENTIFY DEVICE parameter list. Table 3-16 defines the minimum value that will be
placed in Word 68.

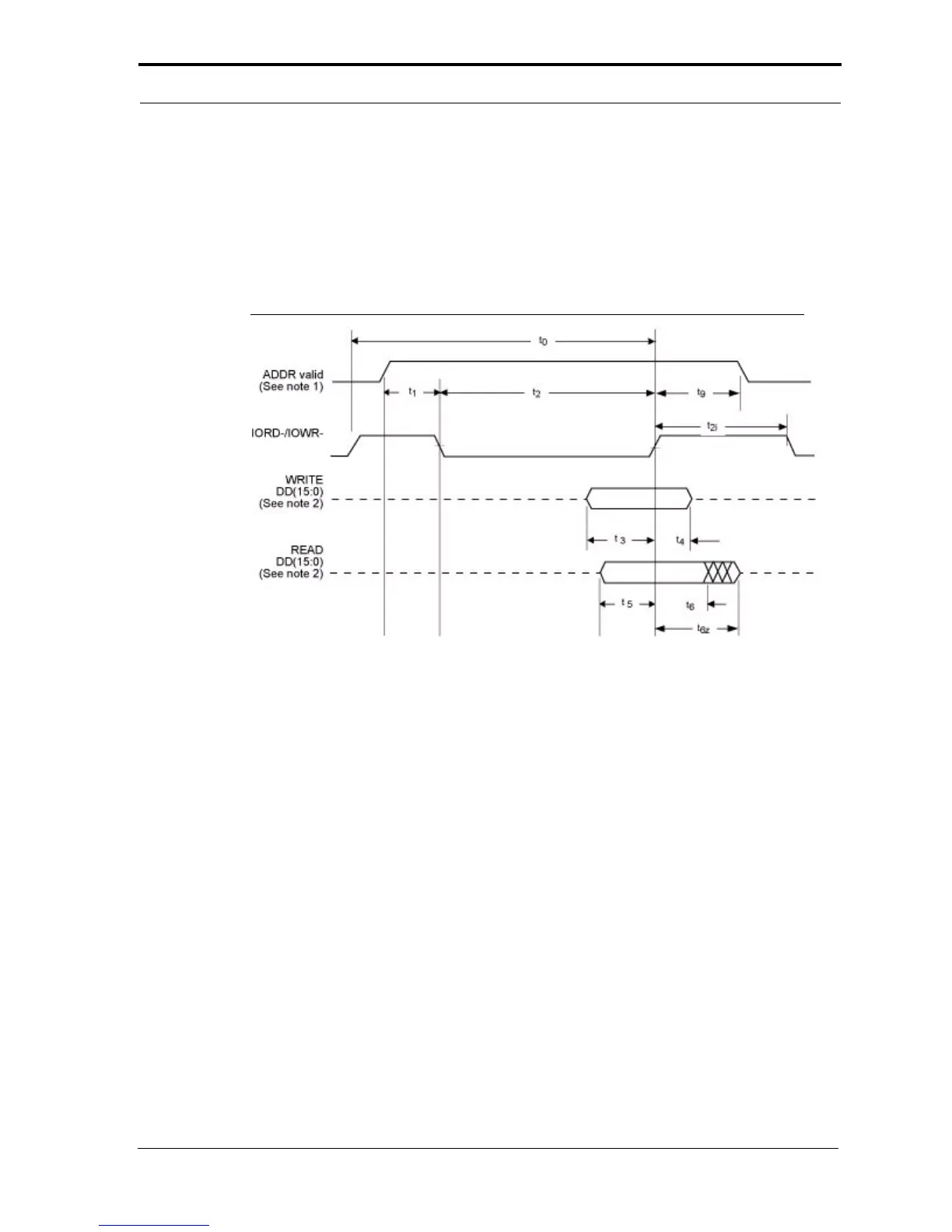

Figure 3-8 PIO Data Transfer to/from Device
NOTE 1: Device address consists of signals -CS0, -CS1 and -DA(2:0).
NOTE 2: Data consists of DD(15:0).
© 2007 SanDisk Corporation 3-19 Rev. 12.0, 02/07
