S&P CONTROL ECOWATT - Page 13

13
ENGLISH

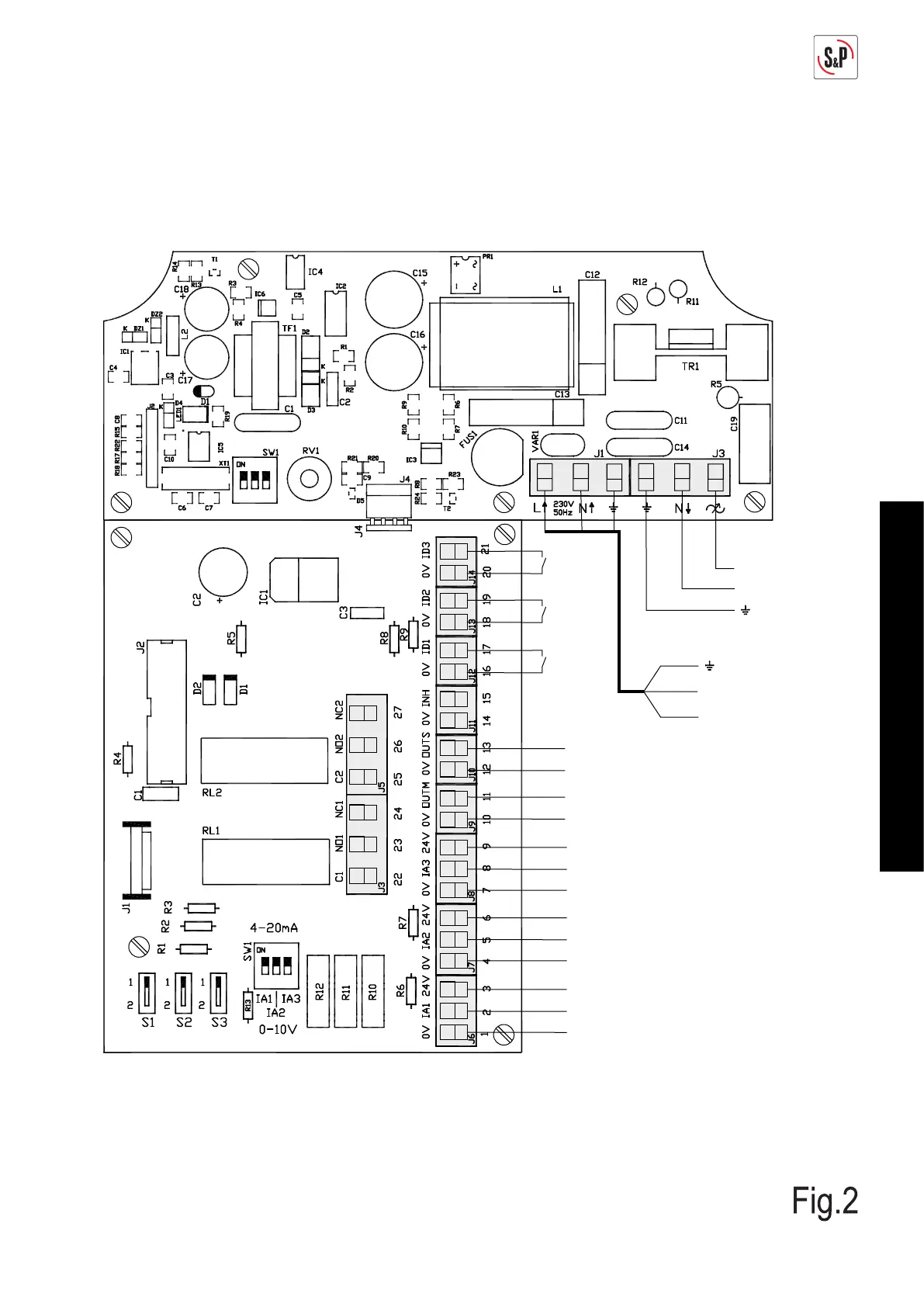

CONTROL ECOWAT AC/4A
}
}
}
}
}
}
}
}
+V
IN
GND
+V
IN
GND
+V
IN
GND
OUT
GND
OUT
GND
}
L
N
Single phase
motor output
230V 50Hz
}
L
N
Analogical
input
0-10V/4-20mA
S1
Analogical
input
0-10V/4-20mA
S2
Analogical
input S3
0-10V/4-20mA
“Slave” output
0-10V
“Master” output
0-10V
Digital
input E3
Digital
input E1
Digital
input E2
Main supply
230V 50Hz
