22
FRANÇAIS

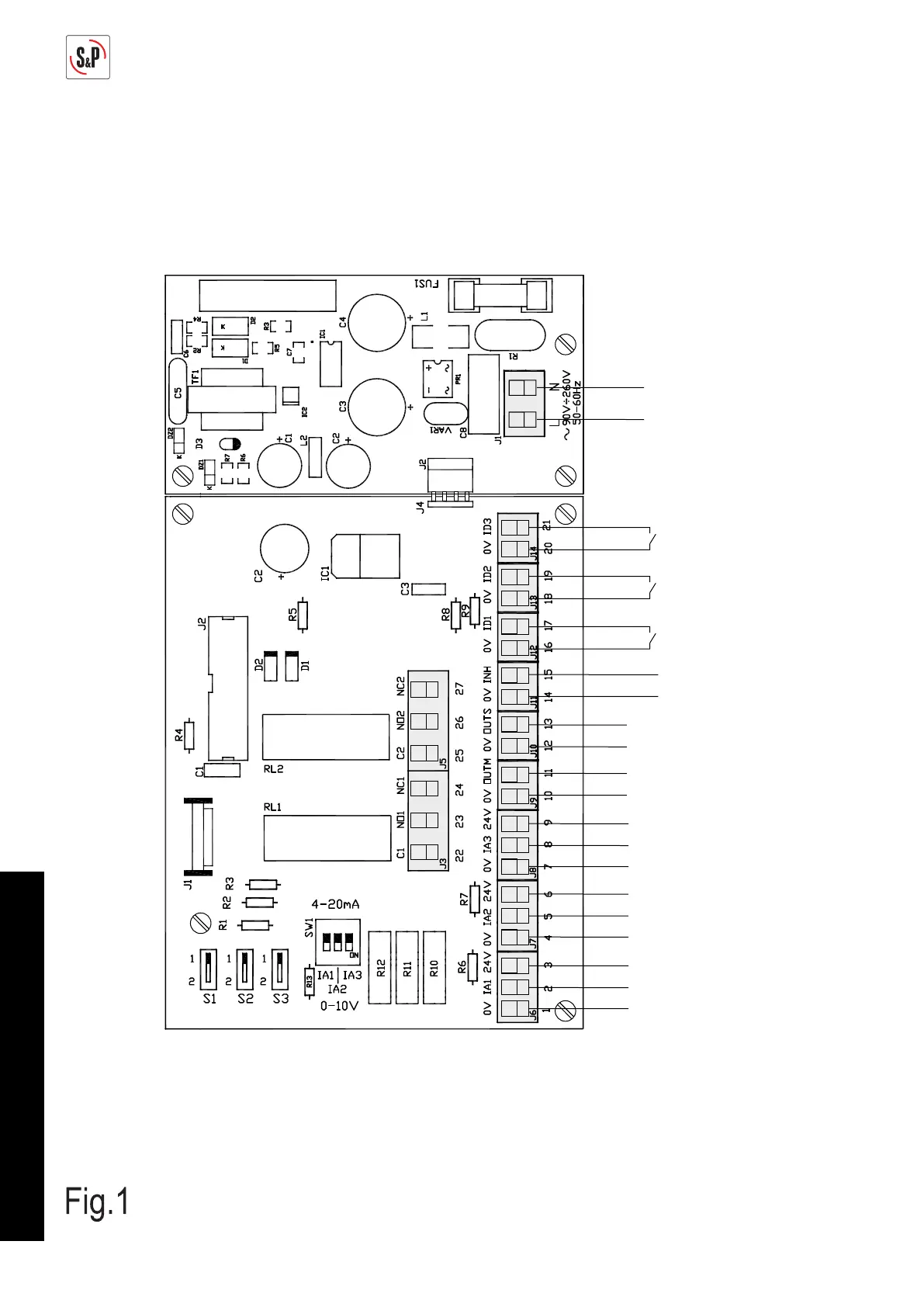

CONTROL ECOWAT AC/DC
}
}
}
}
}
}
}
}
}
}
+V
IN
GND
+V
IN
GND
+V
IN
GND
Sortie 0-10V
“slave”
Sortie 0-10V
“master”
Entrée
“Hall”
OUT
GND
OUT
GND
Alimentation
monophasée
90-230V 50/60Hz
L
N
Entrée
analogique S1
0-10V/4-20mA
Entrée
analogique S2
0-10V/4-20mA
Entrée
analogique S3
0-10V/4-20mA
Entrée
digitale E3
Entrée
digitale E1
Entrée
digitale E2
