(h) Never place a switch where it can be reached from a tub or shower.
(i) CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or
Explosive Materials And Vapors.
(j) CAUTION: MOUNT WITH THE LOWEST MOVING PARTS AT LEAST 2.4 M (8 FEET)
ABOVE THE FLOOR OR GRADE LEVEL.
(k) All units are suitable for use with solid-state speed control.
The TD - MIXVENT series can be mounted in any orientation, horizontal or vertical, and is suitable
for numerous types of applications. See Figure (1). Illustration of some typical applications.
If the installation is made to rigid or exible ducting, then we would recommend the correct
diameter ducting is used to couple to the fan anges. If it is necessary to bend the duct at the
discharge of the fan, then the bend radius should be as large as possible. When rigid duct is
used, make sure to use round elbows.
Before installing the product check the following points: (1) the fan impeller turns freely and (2)
there are no obstructions to the airow.
All models include a robust mounting bracket which enables easy and quick installation of the fan.
See Figure (2) Installation Diagrams For TD - MIXVENT Duct Fans.
Ductwork connection should be made with duct tape or duct fast-clamps (available through your
local distributor) to ensure a good seal and secure connection.
Ensure duct joints and exterior penetrations are sealed with caulk or other similar material to
create an air-tight path and to minimize building heat loss and gain and reduce the potential for
condensation.
Place/wrap insulation around duct and/or fan to in order to minimize possible condensation
buildup within the duct, building heat loss and gain.

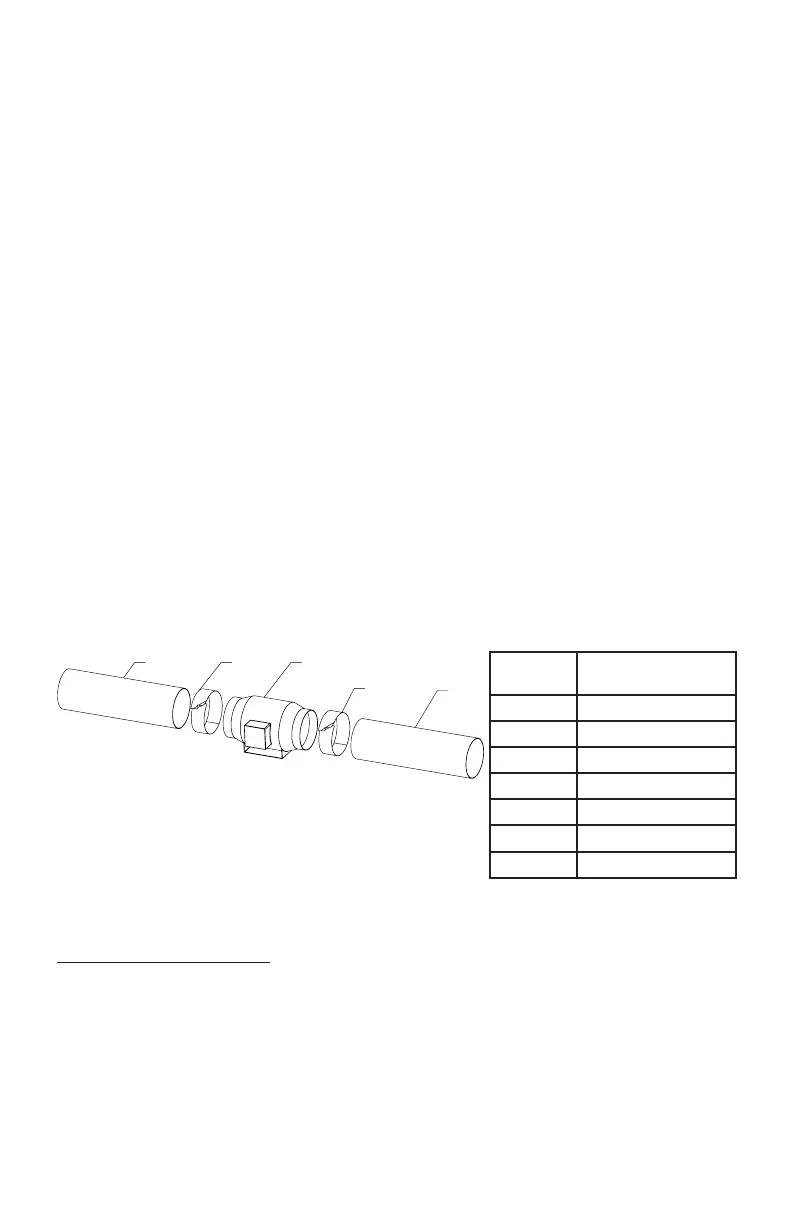

Duct
Tape
Tape
Duct
Fan
To ensure quiet operation of ENERGY STAR qualied inline
and remote fans, each fan shall be installed using sound
attenuation techniques appropriate for the installation. For
bathroom and general ventilation applications, at least 8 feet of
insulated exible duct shall be installed between the exhaust
or supply grille(s) and the fan. For remote ventilation applications, where metal duct is generally
required by code, a metal sound attenuator shall be installed between the hood and the fan.
ELECTRICAL CONNECTION
All TD - MIXVENT series fans operate from a standard 120V 60Hz AC electrical supply. All wiring
must be carried out in accordance with National Electrical Code and all applicable state and local
buildings codes.
Electrical connections should be made in accordance with the following diagrams: Figure (3)
Electrical Wiring.
Model
Recommended
Round Duct Size (in.)
TD-100 4”
TD-100X1 4”
TD-125 5”
TD-150 6”
TD-200 8”
TD-250 10”
TD-315 12”
