3. Install the three screws in the backplate as illustrated in Picture 4.
Picture 4
¼" - 20
Screws
Installed
NOTE: The screws will thread in with some resistance due to the slight
interference t of the threads in backplate.
4. Install the supplied o-ring in groove as illustrated in Picture 5.
A small dab of grease makes it easier to keep the o-ring in place
during installation.
Picture 5
5. Locate the two ⁄"-16 breather bolts and the eight rubber coated
washers. Put one washer on each breather bolt and pass through
the backplate mounting holes. Install another rubber coated
washer onto each breather bolt. As illustrated in Picture 6.
Backplate Mount
Breather Bolt
Rubber
Coated
Washer
Rubber Coated Washer
Picture 6
Picture 3
WA RNING
•The safety of the motorcycle rider is dependent of proper
installation of this product. If you are not certain of your
capabilities or do not have the correct tools for this installation,
please consult a shop to have it done. Improper installation of this
product could result in injury or death to the rider.
•Be sure to disconnect the battery of your motorcycle before
starting on this procedure. Accidental starting of the motorcycle
could cause injury to you or others around you during the
installation.

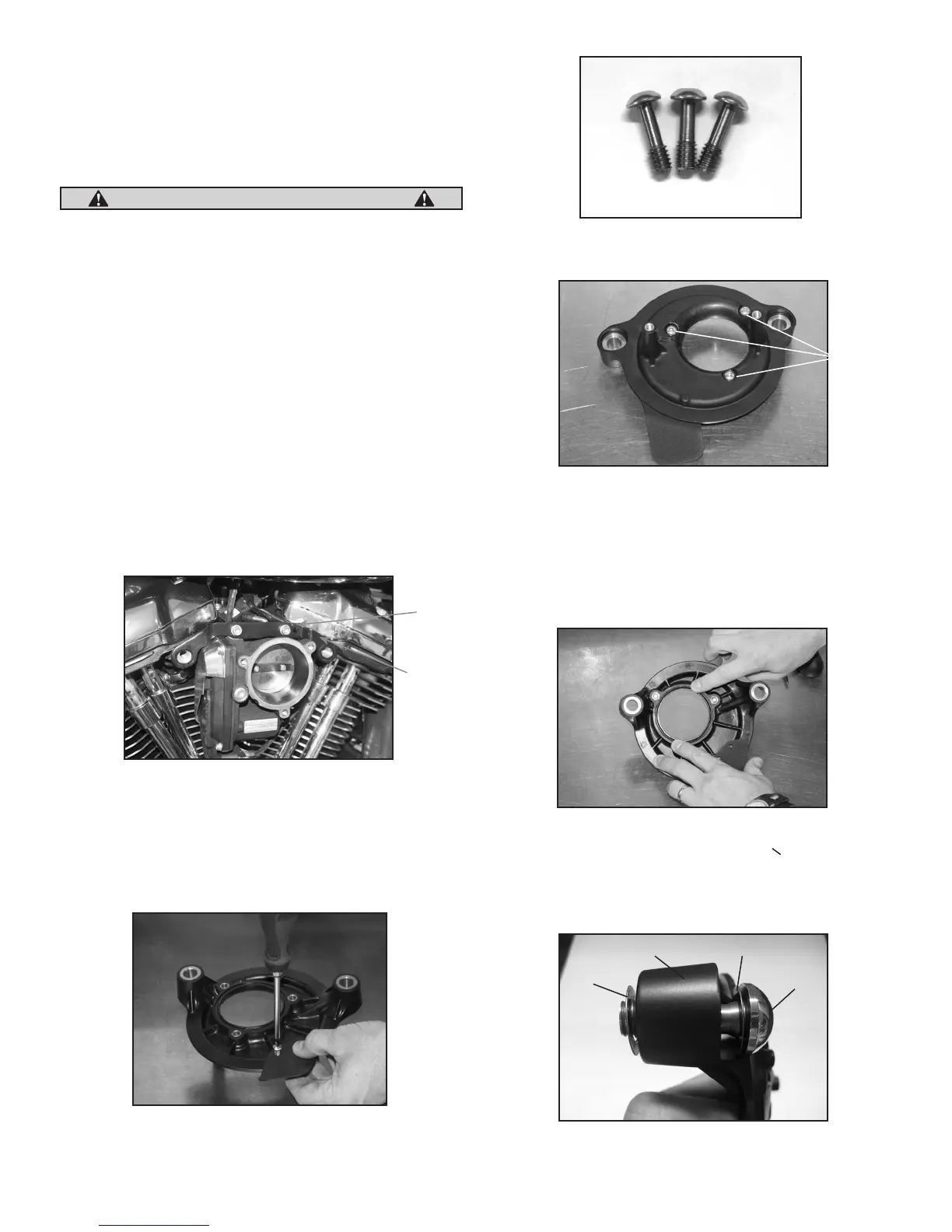

Disassembly
Stock Air Cleaner Removal
1. Disconnect the negative battery cable from the motorcycle and
route it away from any metal parts in the area.
2. Remove the stock air cleaner cover and backplate assembly
following your service manual for the specic year and model bike
you are working on.
3. If equipped, remove the throttle body support bracket and plastic
wiring harness retaining clip. Picture 1 illustrates the bracket and
clip.
Picture 1
Plastic
Retaining
Clip
Support
Bracket
Installation
Installing the S&S Stealth AC Kit
1. Hold the electrical plug cover on the back side of the air cleaner
backplate with one hole over the locating boss. Fasten with the
#10-14 x .375" self-tapping screw provided, in the other hole. As
shown in Picture 2
Picture 2
2. Locate the three back plate screws. See Picture 3.
Kit Contents:
• Backplate
• Wiring cover
• Filter
• Filter Top Plate
• 243 Blue Loctite
• QTY of 3 - ¼" X 20
Backplate Screws
• QTY of 2 – ⁄" X 16
Breather Bolts
• QTY of 2 – ¼" X 20
Flanged Button
Head Screws
• QTY of 8 – Rubber
Coated Washers
• Electrical Plug
Cover Kit
• Cover Screw
• Backplate O-Ring
• CARB EO# Label
