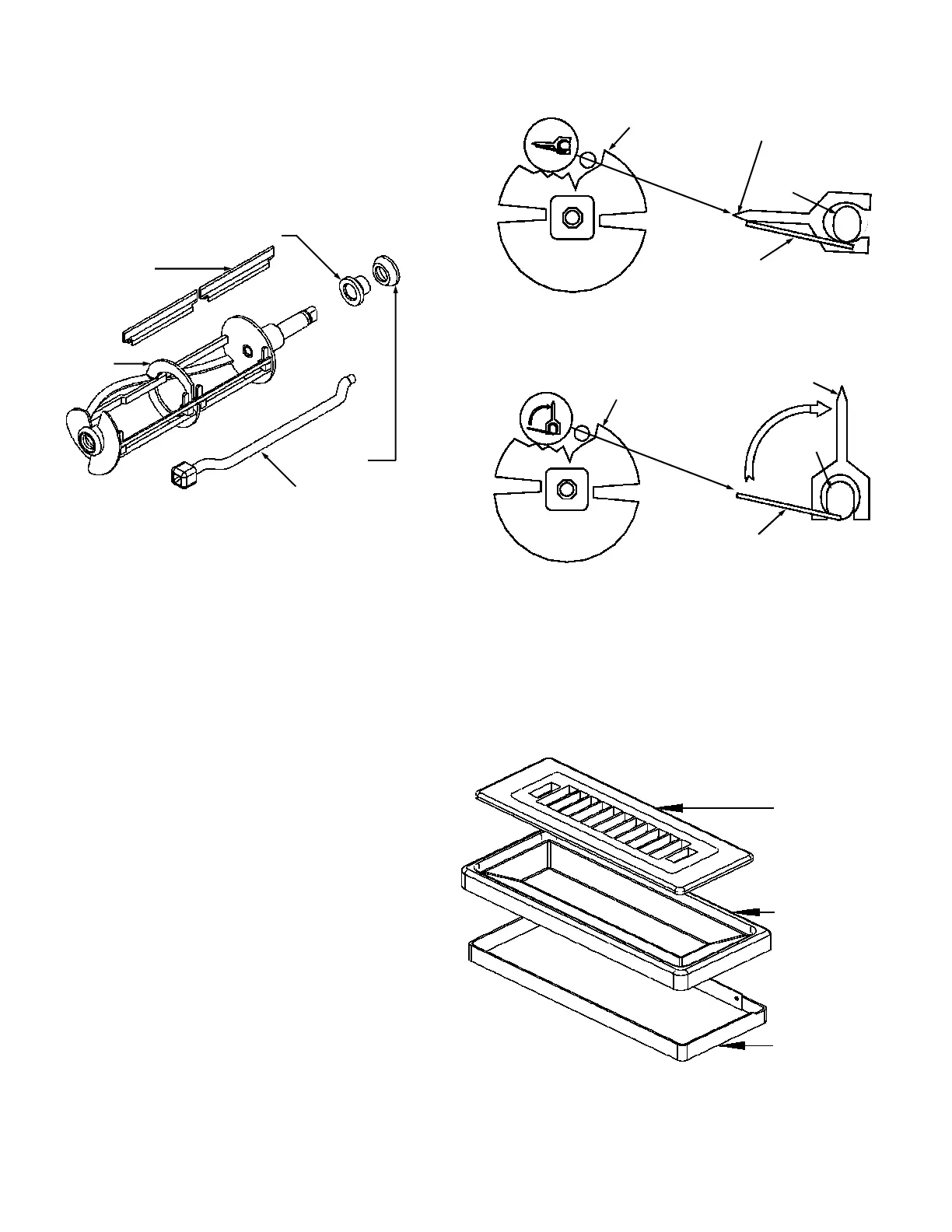

9. Remove the dasher assembly (Fig. 10) being careful
not to damage the scraper blades, then disassemble
in the following manner:
a. Remove and take apart the rear seal assembly.
b. Remove the stator rod from the dasher.
c. Remove the blades from the dasher (Fig. 10) by
first rotating blade upward (Fig. 11) and then
unsnapping one end from the support rod.
BLADES MUST BE REMOVED FOR CLEANING
10. Remove the mix pan lid, drip tray and drip tray
Dasher Front
View
Scraper Blade
Blade Support
Tab
Support
Rod
Blade Support
Tab
Support
Rod
Dasher Front
View
Scraper Blade
Fig. 11
Scraper Blade Removal
DISASSEMBLY and CLEANING
PAGE 5
Fig. 12
Drip Tray Assembly
Drip Tray Insert
Drip Tray
Drip Tray Support
Remains Attached
To Machine Front
Fig. 10
Dasher Assembly
Scraper Blade
Rear Seal
Rear Bearing
Dasher
Stator Rod
To Next Page
