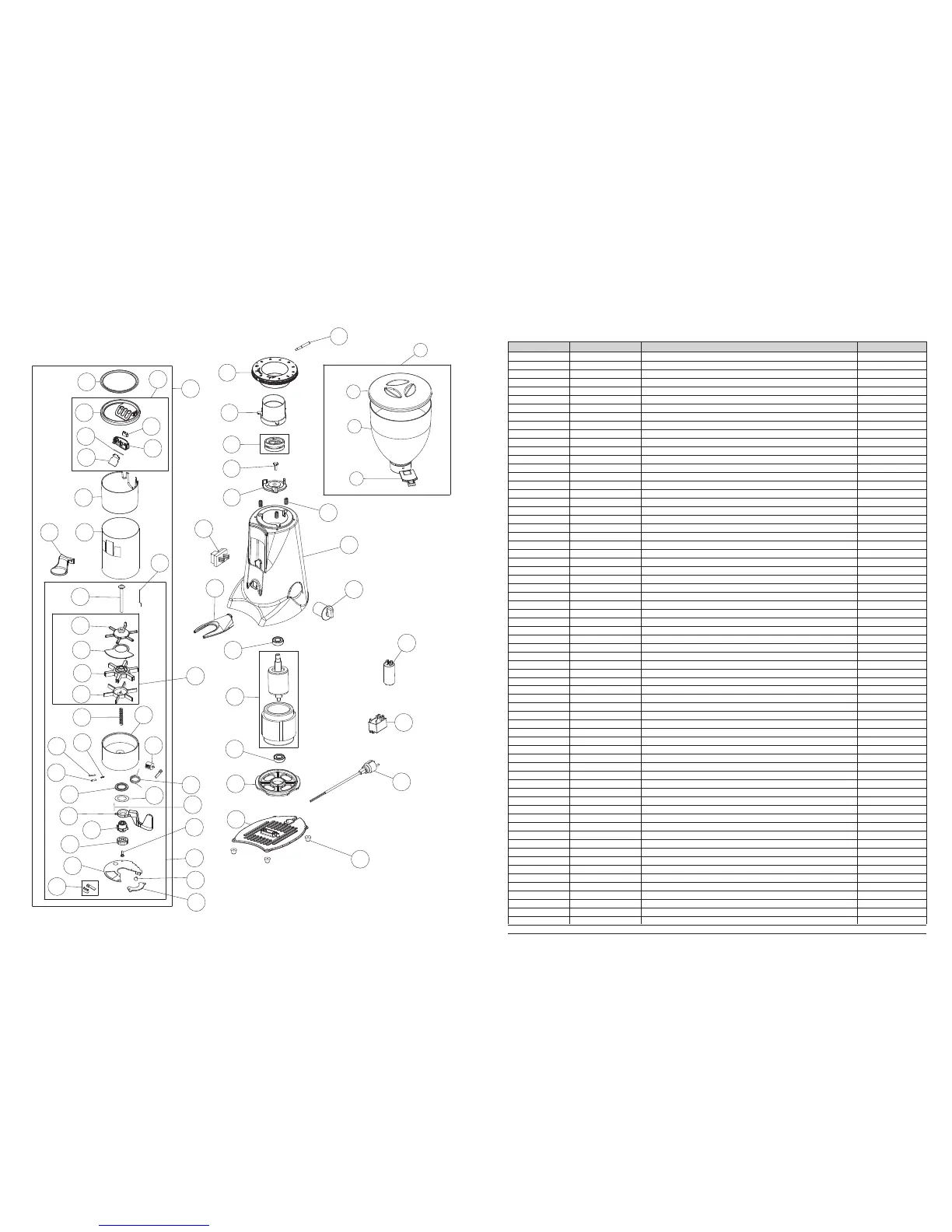

mod. SR50 Coffee grinder-doser
mod. SR50-6 Coffee Grinder-doser
POSITION CODE DESCRIPTION PC
1 10751000 COMPLETE BELL 1
2 10751002 BELL COVER 1
3
10751001 BELL 1
4 10751003 BELL TAB 1
5 10752022 STANDARD ADJUSTING RING NUT 1
6 10752016 D64 FIXED GRINDER HOLDER 1
7 10752009 PAIR OF D 64 GRINDERS 1
8 10752008 TE 8X20 LH MOTOR SHAFT SCREW 1
9 10752006 D64 ROUND GRINDER HOLDER 1
10 10752011 GRINDER HOLDER CONTRAST SPRING 3
1
1A 10754017 GREY BODY 1
11B 10754015 RED BODY 1
11C 10754021 WHITE BODY 1
11D 10754022 ORANGE BODY 1
11E 10754023 SHINY ALUMINIUM BODY 1
11F 10754026 CHROME BODY 1
12A 10754013 0-1 START POWER SWITCH 1
12B 10754019 0-1 POWER SWITCH 1
13 10754018 YOKE 1
14 10754011 6202-ZZ BEARING 2
15 10754000 COMPLETE F5 MOTOR V220 1
16 10754003 D35 MOTOR CAP 1
17 10754002 END COVER 1
18 10754008 FOOT 4
20 10754020 12.5 MF (V220) CAPACITOR 1
21 10753020 RELÈ PER 6 DOSI 2F 1
22 10754012 SHUKO V220 PLUG 1
23 10753010 METERING UNIT COVER 1
24 10753011 TOP RING 1
25 10753009 GLASS 1
26 10753116 STAINLESS STEEL EXTERNAL PIPE 1
27 10753128 MECHANISM FIXING SCREW 1
28 10753037 MIXER ROD 1
29 10753145 ALUMINIUM TOP STAR 1
30 10753105 FOIL 1
31 10753144 ALUMINIUM EXTERNAL STAR 1
32 10753143 ALUMINIUM INTERNAL STAR 1
33 10753032 STAR CONTRAST SPRING 1
34 10753101 RH METERING UNIT BODY 1
35 10753124 PIN THRUST SPRING 1
36 10753126 PIN COVER PLATE 1
37 10753123 CRICK DRIVING PIN 1
38 10753107 METERING UNIT WASHER 1
39 10753029 DOSE COUNTER 1
40 10753148 TORSION LEVER RETURN SPRING 1
41 10753181 RH BRASS CRICK 1
42 10753047 RH ALUMINIUM LEVER 1
43 10752024 DOSER ADJUSTING RING NUT 1
44 10753077 RH LOWER COVER 1
45A 10753049 F5 COMPLETE DOSER AUTOMATIC RH ALUMINIUM LEVER 1
45B 10753158 COMPLETE DOSER MANUAL RH ALUMINIUM LEVER 1
46 10753118 MICROSWITCH 1
47 10753114 MICROSWITCH COVER 1
48 10753119 LEVER PIN 1
49 10753117 F5 MICRO-SWITCH LEVER 1
50 10755000 STELKLA COMPLETE METERING UNIT 1
51 10753057 COMPLETE RH ALUMINIUM DOSER BODY 1
52 10753113 D55 PRESSING UNIT
53 10755110 F5 COMPLETE MICRO-SWITCH 1
54 10755120 RING NUT LEVER 1
55 10753127 MICROSWITCH WITH LEVER 1
56 10753153 RH DOSE COUNTER ROD 1
57 10753046 DOSER KNOB SELF-LOCKING SCREW 1
58 10752023 DOSER 0.4MM THICKNESS 1
59 10752165 DOSER/LEVER BLACK RUBBER PLUG 1
60 10753079 LOWER COVER CLOSING METAL SHEET 1
61 10754082 0-1 GENERAL SWITCH 1
