6
PRECAUTIONS BEFORE USE
Confirmation of the product
Check the following items before installation.
Check if correct products and optional items are provided as specified in the order.
[Main body]
[Option]
3 models of conversion boards, 21A, 33, 33U, are
available.
Refer to the “INSTRUCTION MANUAL for Con-
version Board” for details.
Check if necessary PT and CT are pro-
vided for the unit when equipped with an
optional conversion board (UF-TB ).
Check if the product has no damage due
to accident during transportation or other
causes.

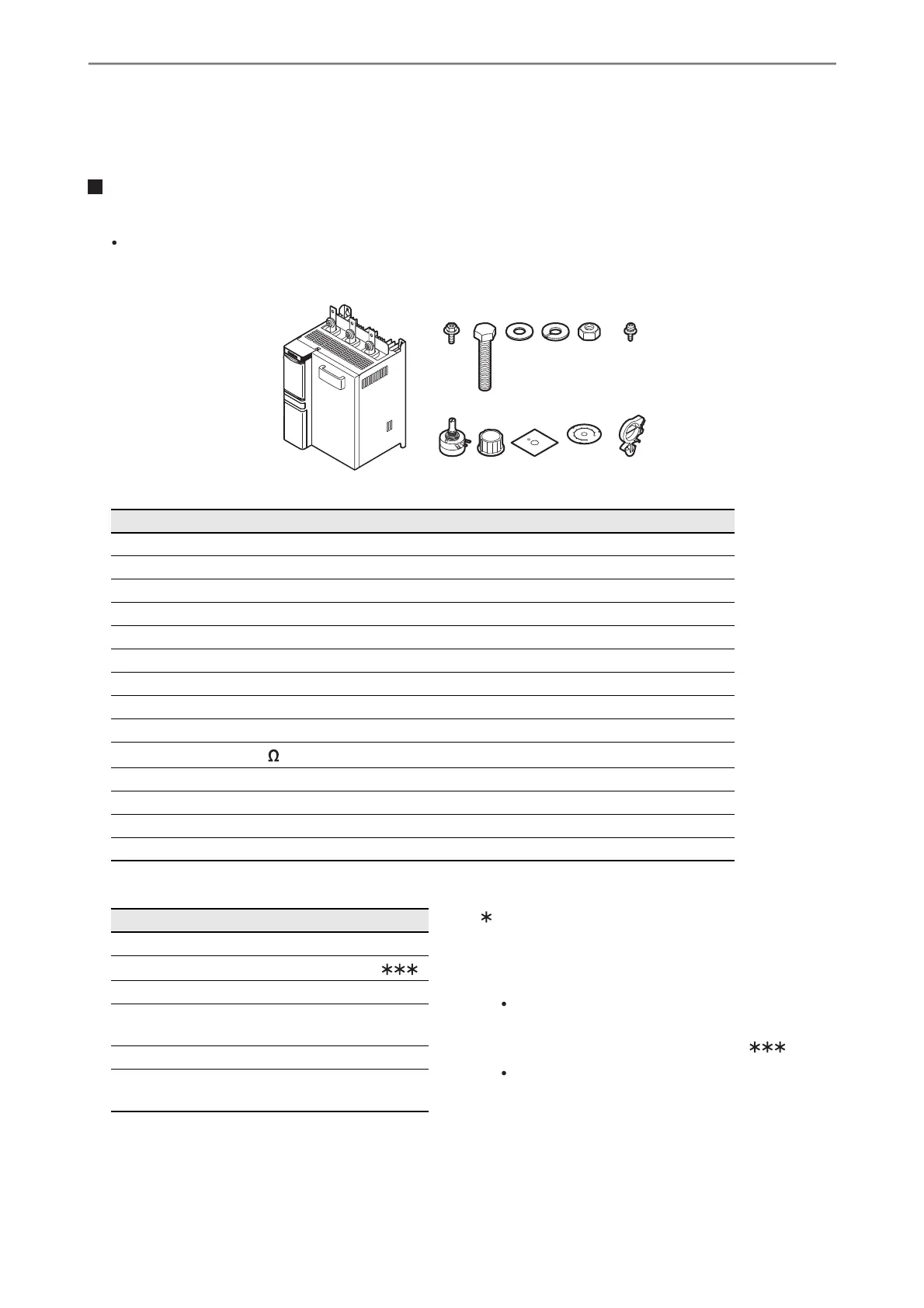

No. Included items Q’ty
1 UF3 unit body 1 unit
2 Screws, nuts, and others for the connection of output wires
a: Screw (25A-250A only) 6 pcs
b: Bolt (350A and 450A only) 6 pcs
c: Washer (350A and 450A only) 12 pcs
d: Spring washer (350A and 450A only) 6 pcs
e: Nut (350A and 450A only) 6 pcs
3 Screw for the connection of a grounding terminal 1 pcs
4 Attachment volume set 1 set
a: Volume (1k B characteristic)
1 pcs
b: Knob 1 pcs
c: Insulation sheet 1 pcs
d: Nameplate (manual output adjustment, setting of the grade) 2 pcs
5 Easy lock 3 pcs
Option name Model
Display panel UF-DP
Conversion board
UF-TB
RS485 communication unit UF-RS485
DeviceNet
communication unit
UF-DN
CC-Link communication unit UF-CL
PROFIBUS
communication unit
UF-PB
To Next Page
