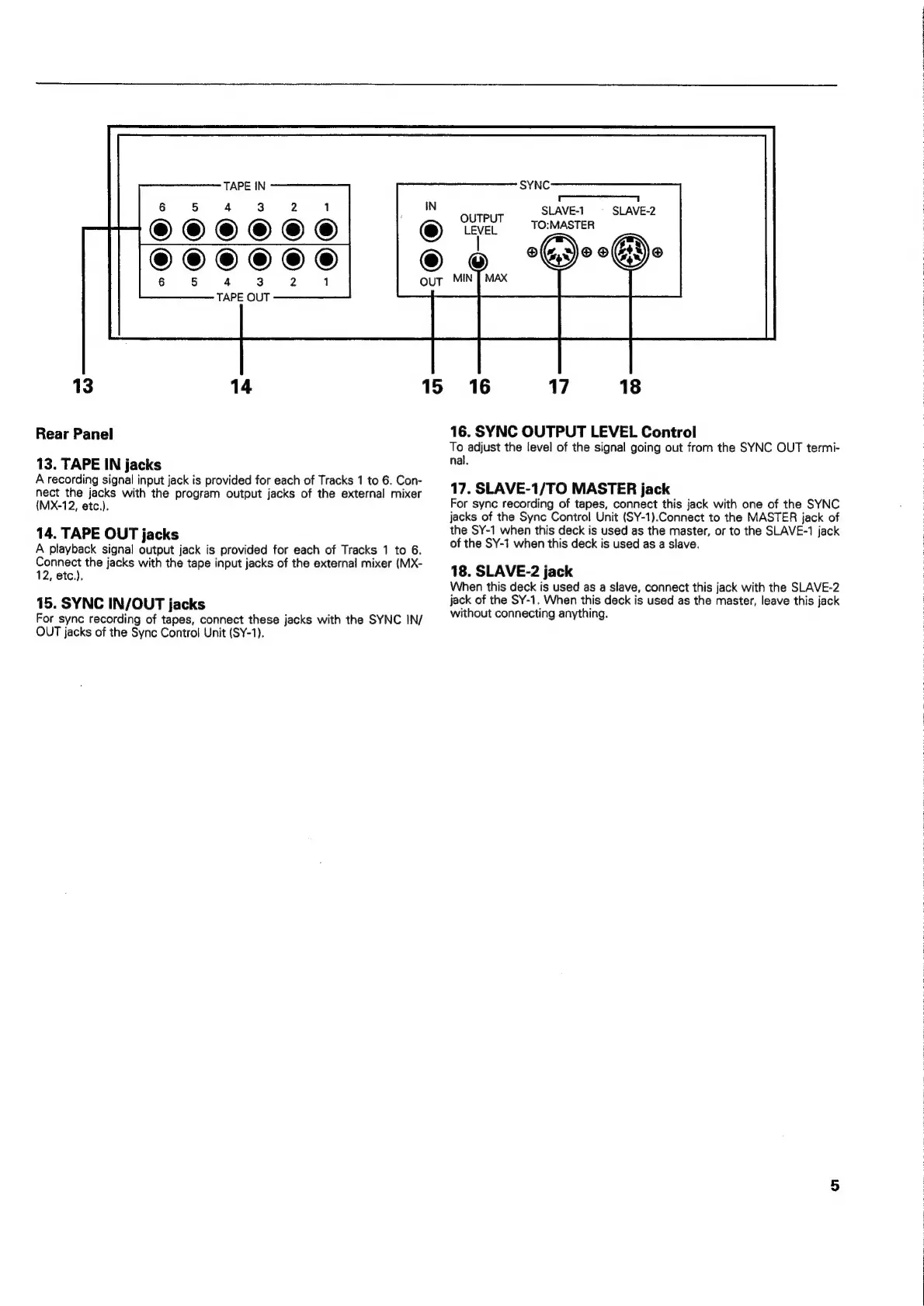

Rear

Panel

13.

TAPE

IN

jacks

A

recording

signal

input

jack

is

provided

for

each

of

Tracks

1

to

6.

Con-

nect

the

jacks

with

the

program

output

jacks

of

the

external

mixer

(MX-12,

etc.).

14.

TAPE

OUT

jacks

A

playback

signal

output

jack

is

provided

for

each

of

Tracks

1

to

6.

Connect

the

jacks

with

the

tape

input

jacks

of

the

external

mixer

(MX-

12,

etc.),

15.

SYNC

IN/OUT

jacks

For

sync

recording

of

tapes,

connect

these

jacks

with

the

SYNC

IN/

OUT

jacks

of

the

Sync

Control

Unit

(SY-1).

IN

@©

ae

SYNC

i.

SLAVE-1

_

SLAVE-2

OUTPUT

To:

MASTER

16

17

18

16.

SYNC

OUTPUT

LEVEL

Control

To

adjust

the

level

of

the

signal

going

out

from

the

SYNC

OUT

termi-

nal.

17.

SLAVE-1/TO

MASTER

jack

For

sync

recording

of

tapes,

connect

this

jack

with

one

of

the

SYNC

jacks

of

the

Sync

Contral

Unit

(SY-1).Connect

to

the

MASTER

jack

of

the

SY-1

when

this

deck

is

used

as

the

master,

or

to

the

SLAVE-1

jack

of

the

SY-1

when

this

deck

is

used

as

a

slave.

18.

SLAVE-2

jack

When

this

deck

is

used

as

a

slave,

connect

this

jack

with

the

SLAVE-2

jack

of

the

SY-1.

When

this

deck

is

used

as

the

master,

leave

this

jack

without

connecting

anything.

|

|

|

|

|

:

|

|

|

,
