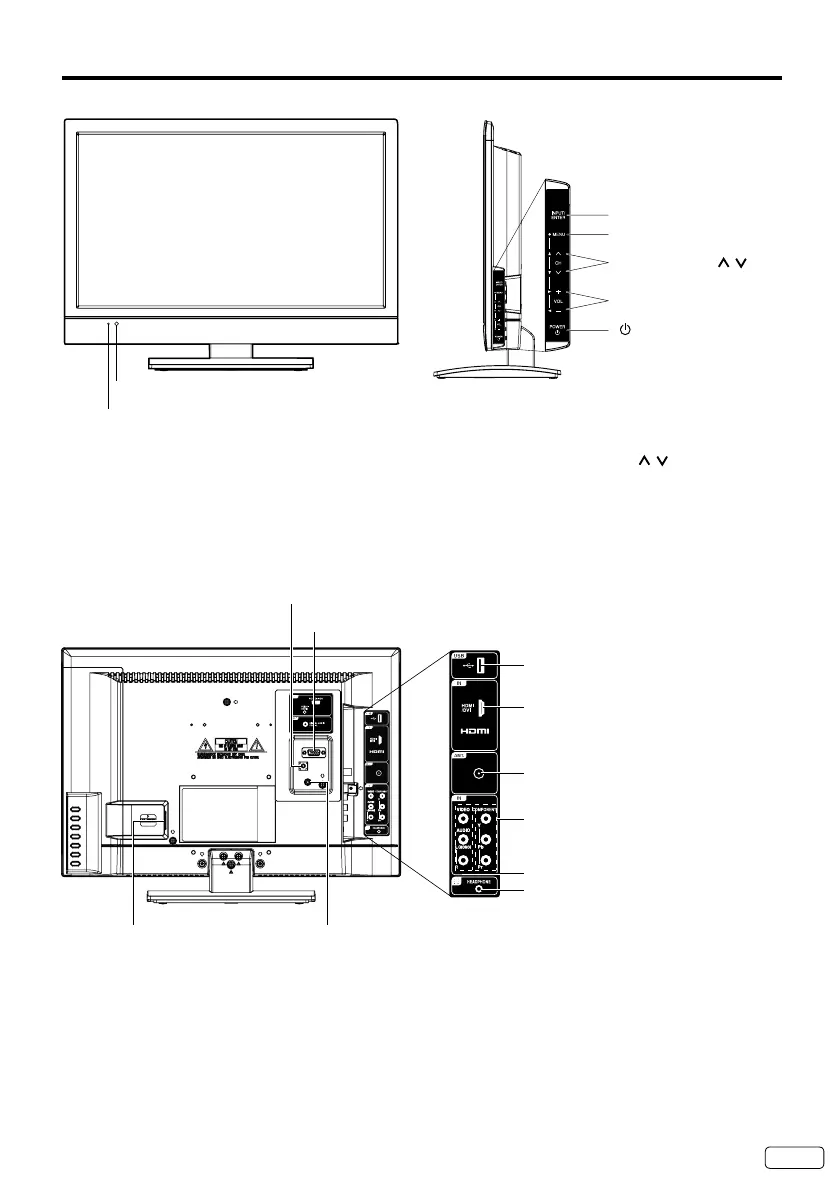

Parts and functions
Right sideFront
Remote sensor
POWER indicator
Red: Standby
Green: On
POWER button
INPUT/ENTER button
VOL (VOLUME) +/– buttons
CH (CHANNEL)
/ buttons
MENU button
Rear
To display the menu screen.
Press MENU button to display the menu
screen.
CH (CHANNEL)
/ buttons,
VOL
(VOLUME) +/– buttons and INPUT/
ENTER button can be used to select the
desired setting during the menu screen
operations.
AC INPUT jack
PC/DVI AUDIO IN jack
VIDEO IN jacks
(VIDEO/AUDIO (L(MONO)/R))
COMPONENT IN jacks
DIGITAL AUDIO COAXIAL OUT jack
ANT. (RF) IN jack
HEADPHONE jack
PC MONITOR IN jack
HDMI/DVI IN jack
USB
input
