Santint

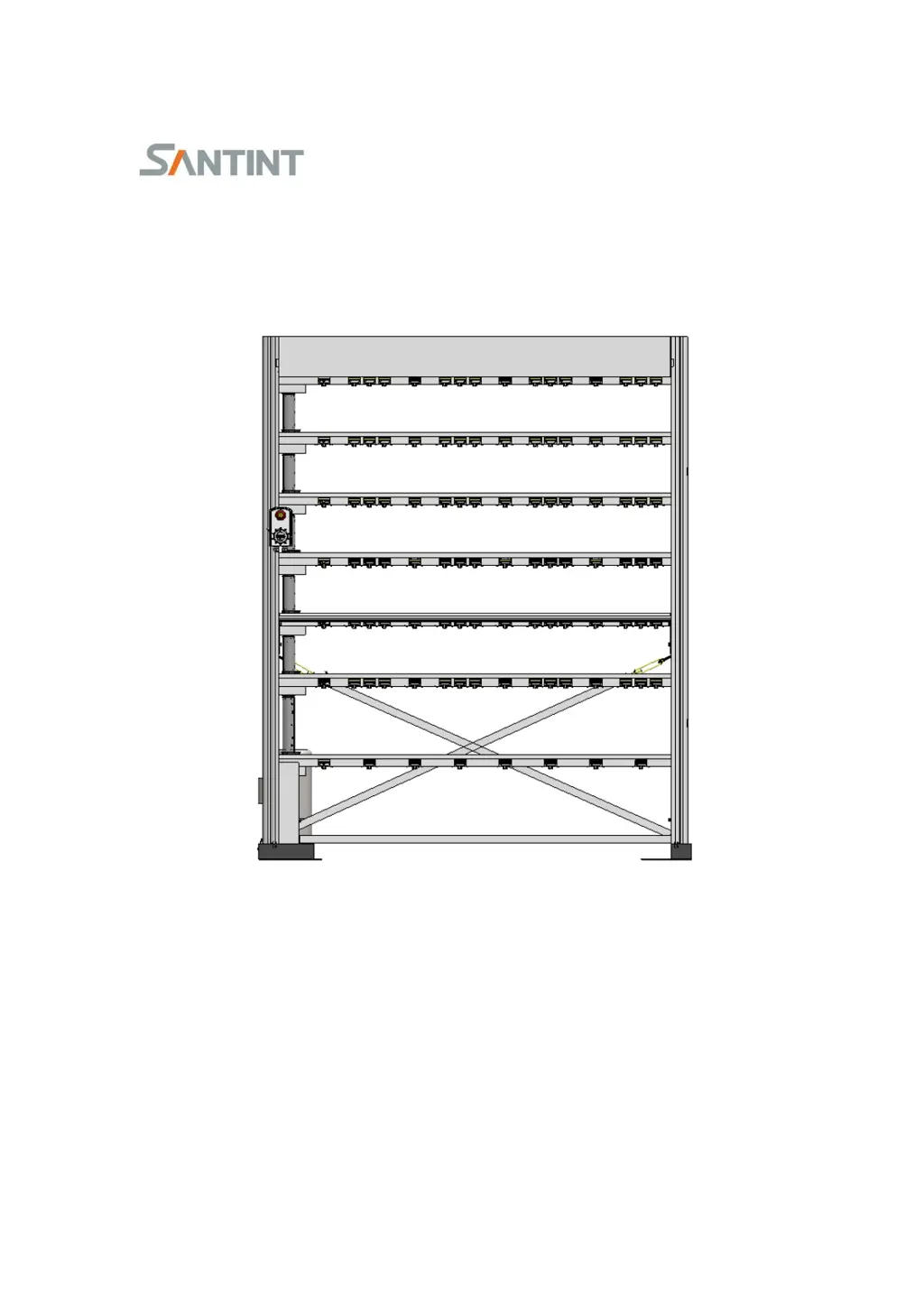

PA Series Paint Mixing Machine V1.1 1
Perfitall Series Paint Mixing Machine
User Manual
Please read this manual carefully prior to operation.

Questions and Answers

  • J
    joel21Aug 4, 2025
    What to do if the Santint Perfitall motor does not work?
    • S
      Shawn DennisAug 4, 2025
      If the motor of your Santint Mixer isn't working or seems overloaded, there are several potential causes. First, check the power supply by examining the socket, power cord, small circuit breaker, and fuse to ensure the Switch Box is working. If the Switch Box is faulty, it should be replaced. Also, ensure the voltage is within the local voltage range ±5%; if it's not, consider using a stabilizing transformer. Other possible issues include a broken capacitor (replace it) or a problem with the motor itself (replace it).
  • A
    alicia57Aug 9, 2025
    Why is my Santint Perfitall making noise?
    • J
      Juan SkinnerAug 9, 2025
      If you notice noise during the operation of your Santint Mixer, it's likely that the transmission parts need lubrication. Lubricate these parts.
  • D
    Denise JohnstonAug 14, 2025
    What to do if a whole layer doesn't work on my Santint Perfitall Mixer?
    • M
      Michael HayesAug 14, 2025
      If a whole layer of your Santint Mixer isn't working, the Link Rod Assembly or the main drive might be broken. In this case, the suggested solution is to replace the broken parts.
  • S
    sarahgarzaAug 19, 2025
    What to do if the motor is working, but reductor is not working on Santint Perfitall?
    • J
      James BrayAug 19, 2025
      If the motor of your Santint Mixer is running, but the reductor isn't functioning, it's likely that the reductor is broken and needs to be replaced.
  • L
    Lisa SinghAug 25, 2025
    What to do if partial of the whole layer doesn’t work on Santint Perfitall Mixer?
    • J
      Justin GonzalesAug 25, 2025
      If only a section of a layer isn't working on your Santint Mixer, it's possible that the sleeve tube or spring pin is broken. Replace the sleeve tube or the spring pin to resolve this issue.
  • S
    Stephen SanchezAug 29, 2025
    How to fix one mixing head that does not mix on Santint Mixer?
    • J
      Jeffrey MitchellAug 29, 2025
      If one of the mixing heads on your Santint Mixer isn't mixing, the slotted setscrew in the plastic cone-gear assembly might be damaged. Consider replacing it.

Summary

Introduction and Safety

Safety Instruction

Safety warnings and instructions for initial usage of the machine.

Circuit Diagram

Technical Parameters

Working Environment

Specifies the recommended temperature and humidity range for machine operation.

Setup Preparation

Machine Setup

Spare Parts Identification

Lists and identifies the various spare parts included with the machine.

Main Installation Process

Step-by-step instructions for unpacking, assembling side plates, shelves, link rods, and switch box.

Optional Parts Installation

Detailed steps for installing optional components such as platens, hanging plates, and back-storing shelves.

Usage and Operation

Pre-Operation Check-up

Pre-operation checks including voltage, can compatibility, lid fastening, and paint mixing.

Machine Operation Guide

Detailed instructions on how to operate the paint mixing machine, including timer and emergency stop.

Troubleshooting

Repair Procedures

Tension the Chain

Steps to tension the chain of the mixing machine, involving motor screws and pulling bolt.

Replace Spring Pin and Jackscrew

Procedure for replacing broken spring pins and jackscrews in the driving shaft assembly.

Replace Plastic Cone-Gear Assembly

Instructions for replacing the plastic cone-gear assembly, involving shelf dismantling and frame bolts.

Component Lubrication

Guidance on lubricating key components of the machine using grease.

Machine Maintenance

Daily Maintenance Tasks

Routine daily tasks for cleaning the machine and paint leftover on tins and mixing lids.

Long-Term Storage Maintenance

Steps for maintaining the machine when it will be stored for an extended period, including power cut and lubrication.
