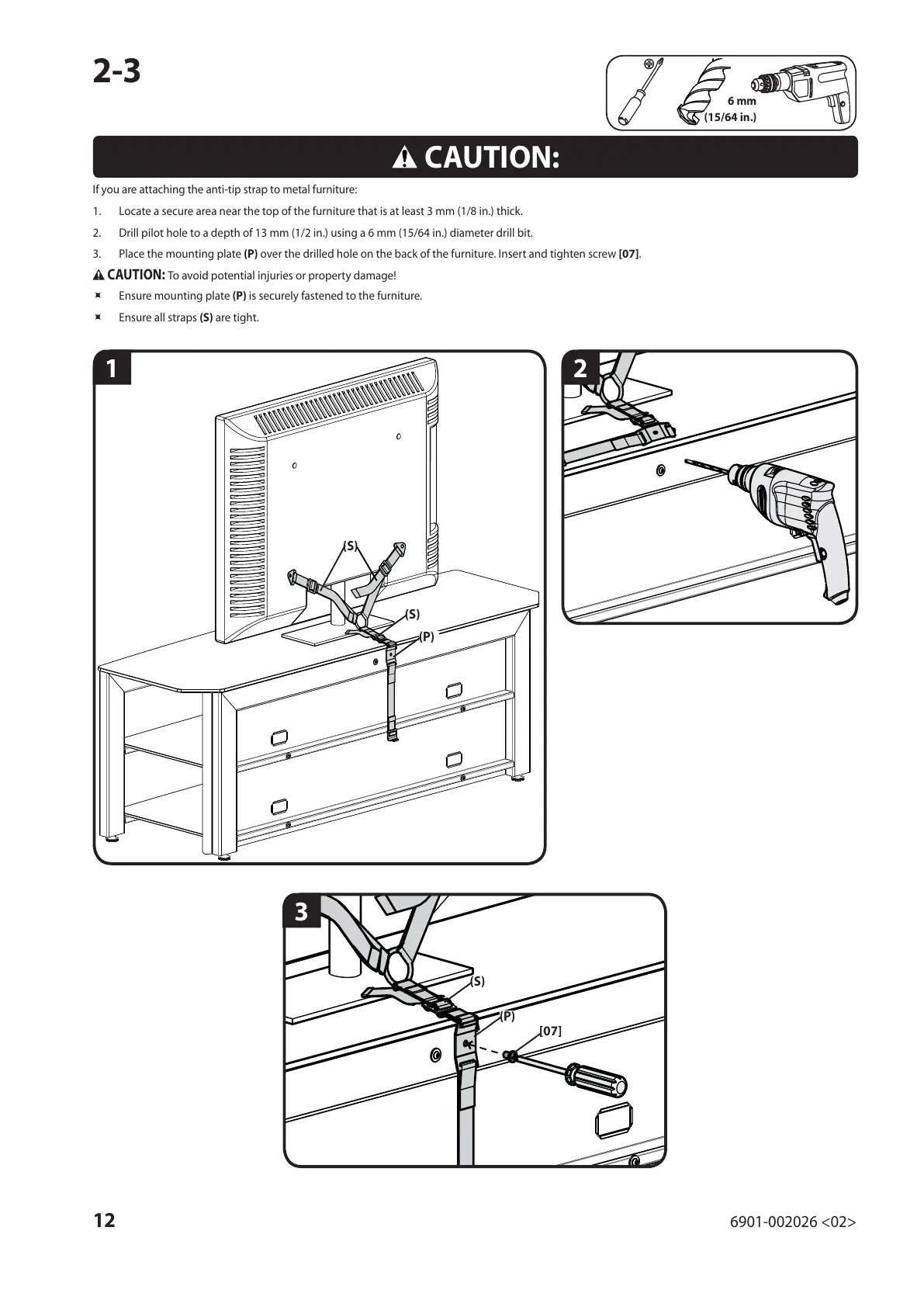

If you are attaching the anti-tip strap to metal furniture:
1. Locate a secure area near the top of the furniture that is at least 3 mm (1/8 in.) thick.
2. Drill pilot hole to a depth of 13 mm (1/2 in.) using a 6 mm (15/64 in.) diameter drill bit.
3. Place the mounting plate (P) over the drilled hole on the back of the furniture. Insert and tighten screw [07].
CAUTION:
To avoid potential injuries or property damage!
Ù Ensure mounting plate (P) is securely fastened to the furniture.
Ù Ensure all straps (S) are tight.
