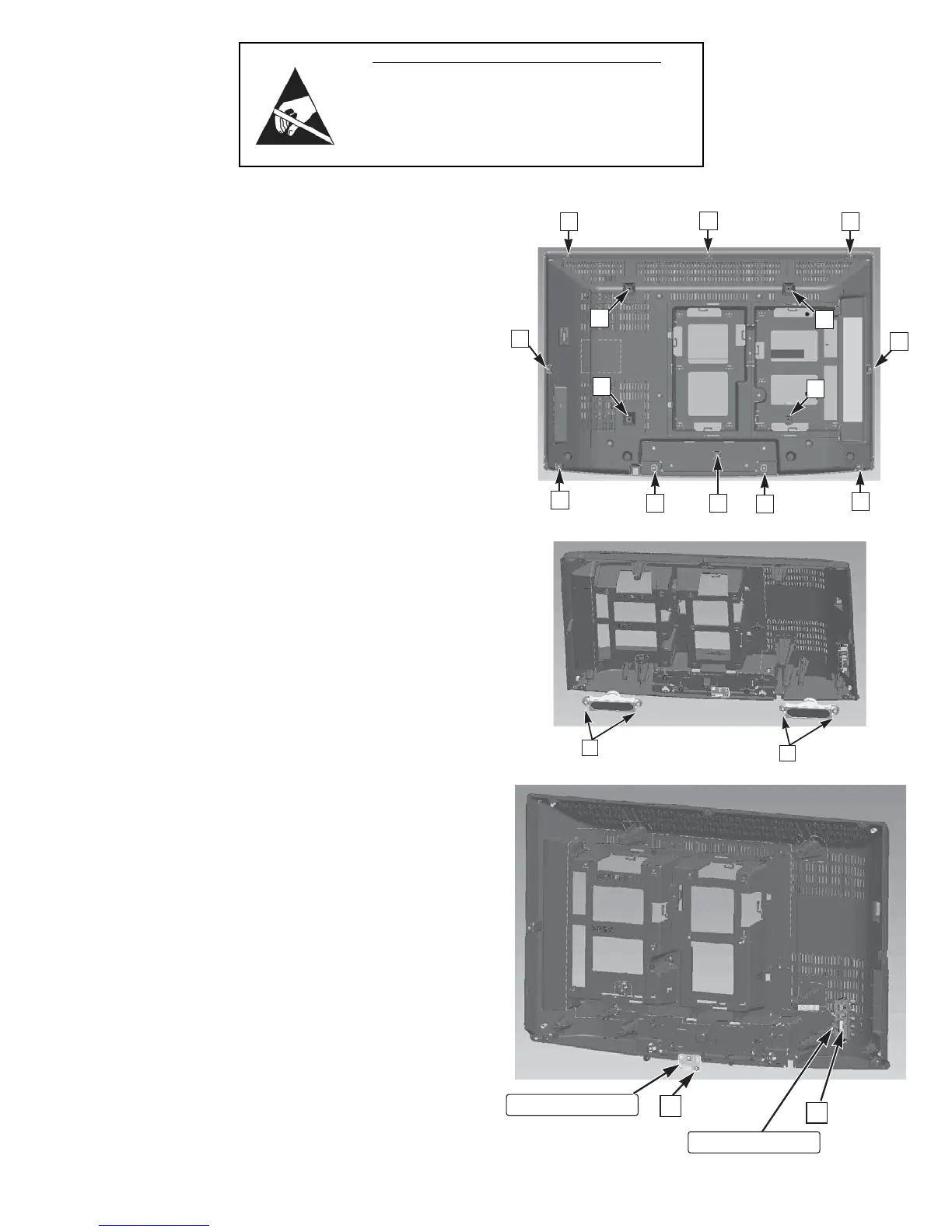

5. BACK CABINET REMOVAL
Remove 14 screws to take the back cabinet off.
(C: 3x14, 10 pcs; D: 4x8, 4 pcs)
ELECTROSTATICALLY SENSITIVE DEVICES
Many solid-state devices (especially Integrated
Circuits) are Electrostatically Sensitive, and, therefore,
require special handling techniques as described
under “Servicing Electrostatically Sensitive Devices,”
on page two in this service literature.
6. LCD PANEL RMOVAL
Lift up the LCD panel from front cabinet.
7. SPEAKER REMOVAL
Remove 2 screws (E: 3x14) to take off each speaker.
C
C
D
D
C
D
C
C
C
C
C
C
C
D
E
E
8. RC LED BOARD REMOVAL
Rremove 1 screw (C: 3x14) to take the RC LED board off.
RC LED Board
C
C
KEY SW Board
9. KEY SW BOARD REMOVAL
Remove 1 screw (C: 3x14) to take the KEY SW board off.
