- 4 -
Do not remove the pick-up from base mechanism because of
adjustment difficulty.
G-SANKOL CFD-409Z
or
G-HANARL SF-106B
G-SANKOL CFD-409Z
or
G-HANARL SF-106B
G-SANKOL CFD-409Z
or
G-HANARL SF-106B
A
: Clean the groove by alcohol well.
A
A
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R
Apply screw lock
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R
G-FLOIL GREASE SY-31S
or
G-FLOIL GREASE MEN-223R

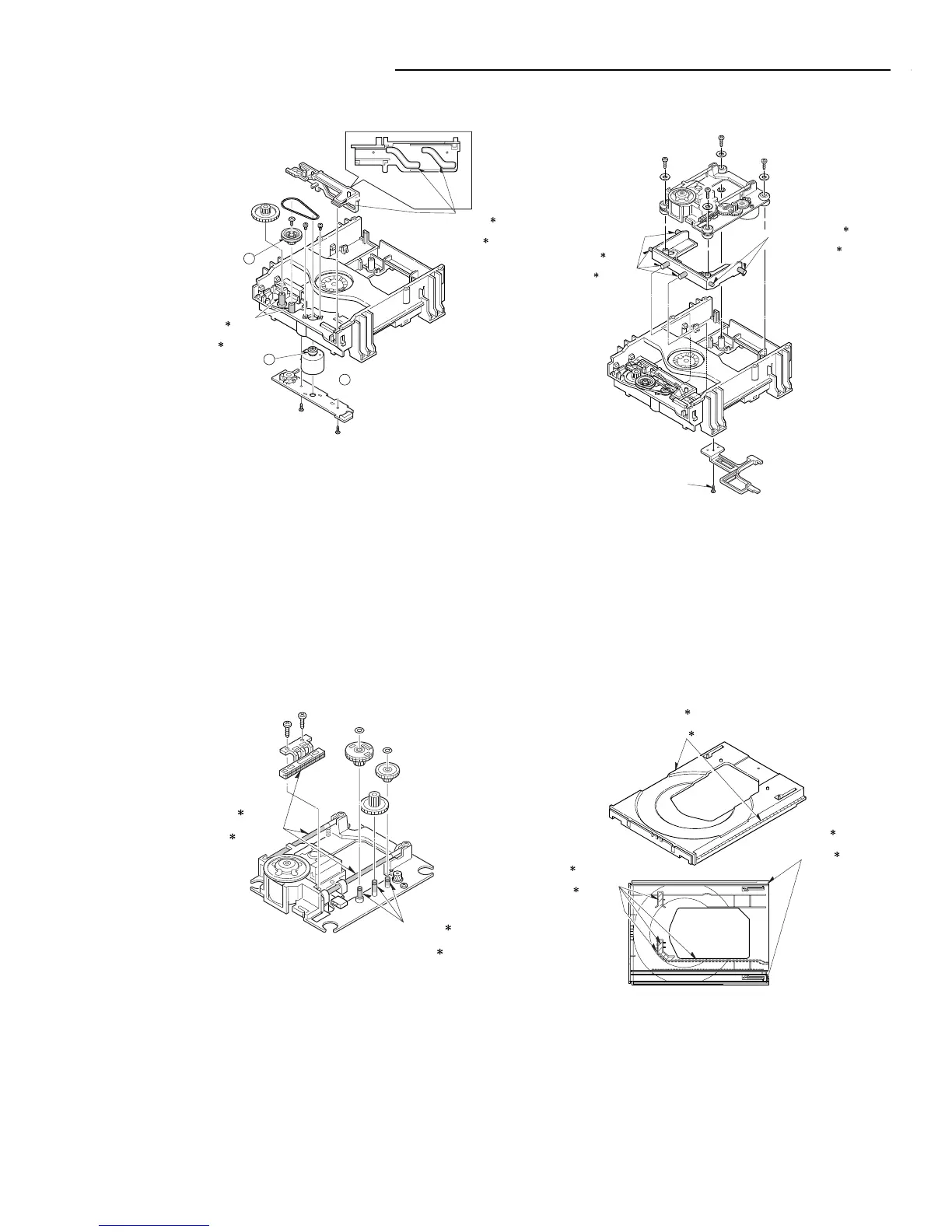

5. Base mechanism mounting parts.
6. Base mechanism parts.
7. Tray parts.
MECHANISM REPLACEMENT
