Analog Signal Connections—
Video1 (optional)
Connect an analog device, such as, an Analog
Cable Box, Satellite Receiver, or VCR
Composite connectors are included on your
new HDTV to provide continued compatibility
with older analog devices, such as a VCR. The
S-Video connector will provide the best analog
resolution. If you have an S-Video connector
on your old analog equipment, you should use
it instead of the standard video connector.
(Cables are not supplied.)

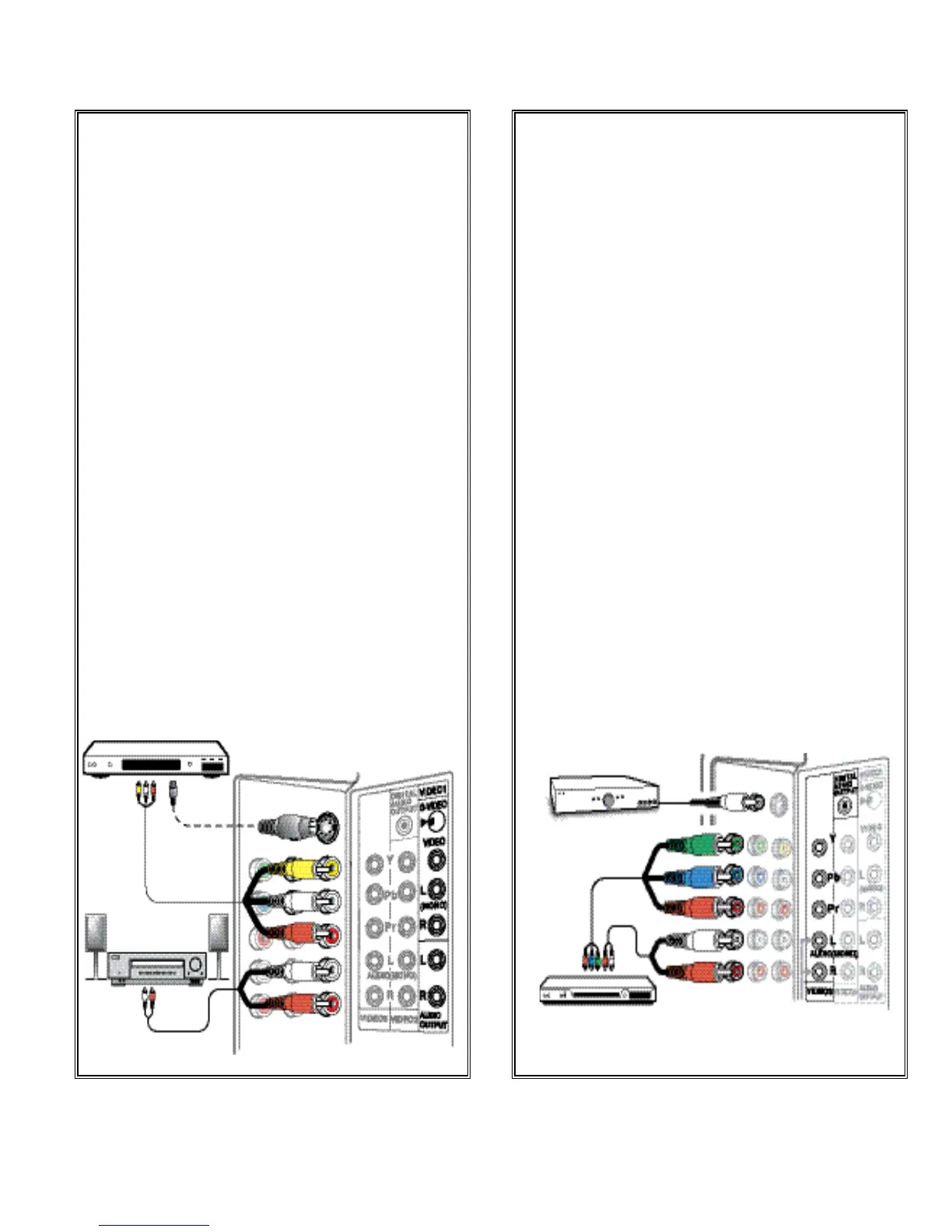

1. Connect an AV cable to the VIDEO 1 jacks on
the HDTV and to your analog AV equipment,
as shown. Match the connector colors to
jack colors.
2. Press the INPUT key to step through the
signal inputs to select Video 1.
STEREO AUDIO OUT JACKS (OPTIONAL STEP)
FIXED ANALOG
1A
Connect the Stereo Audio Out jacks to
a stereo amplifier, as shown.
NOTE:Do not connect external speakers directly to
the Stereo Audio out jacks.
ANALOG DEVICE
2
Digital Signal Connections—
Video2 & Video3 (optional)
Connect digital devices, such as, an HD Cable
Box, HD Satellite Receiver and/or DVD Player
The Component jacks on this HDTV will accept
various HDTV video signals, making Component
a great choice for picture quality and resolution.
1. Connect a Component cable to a set of
Green, Blue, and Red video jacks (Video2 or
Video3) on the HDTV and to your digital
device, as shown. (Cable is not supplied.)
2. Connect an Audio cable to the matching set
of White and Red audio jacks, as shown.
(Cable is not supplied.)
3. Press the INPUT key to step through the
signal inputs to select Video 2 or Video 3.
DIGITAL AUDIO OUT JACK (OPTIONAL STEP)
2A
Connect the Digital Audio output to a
multichannel receiver, as shown.
NOTE:Dolby
®
Digital 5.1 audio is available at the
Digital Audio Output only when received as
part of a Digital Antenna signal being viewed
on the screen.
DVD PLAYER OR
SIMILAR DEVICE
GETTING STARTED—CONNECTIONS
STEREO AMP
MULTICHANNEL
RECEIVER
