— 7 —
PROGRAM CODES
The microprossesor used in this model is a multi-purpose
type and is used in several different models. To ensure
proper operation and the correct features for your particu-
lar model, the program codes must be correct.
Note 1. Option Data 1 (NO. 83 OPT) should be hexadecimal
3C (00111100 binary). See page 4 INITIAL DATA SETUP,
step 32, for set up procedure. If this program code is wrong
the TV will not operate properly.
Note 2. Option Data 2 (NO. 84 OP2) should be hexadecimal
2E (00101110 binary). See page 4 INITIAL DATA SETUP,
step 33, for set up procedure. If this program code is wrong
the TV will not operate properly.
BIT FUNCTION
DATA
01
0 ~1 NOT USED — —
2 SCAN VELOCITY NONE YES
3 CLOCK NONE YES
4 COMB FILTER NONE YES
5 WIDE MODE NONE YES
6 SURROUND NONE YES
7 NOT USED — —
BIT FUNCTION
DATA
01
0
SHIPPING CONDITION
NORMAL COOL
OF COLOR ENHANCER
1 COLOR ENHANCER NONE YES
2 INITIAL CH & XDS NONE YES
3 FIXED/VARIABLE FIXED FIX/VAR
4 PIP NONE YES
5 AV INPUTS AV1/2 AV1/2/3
6 BASS & TREBLE / TONE BASS & TR TONE
7 V-GUIDE NONE
YES
Note 1.

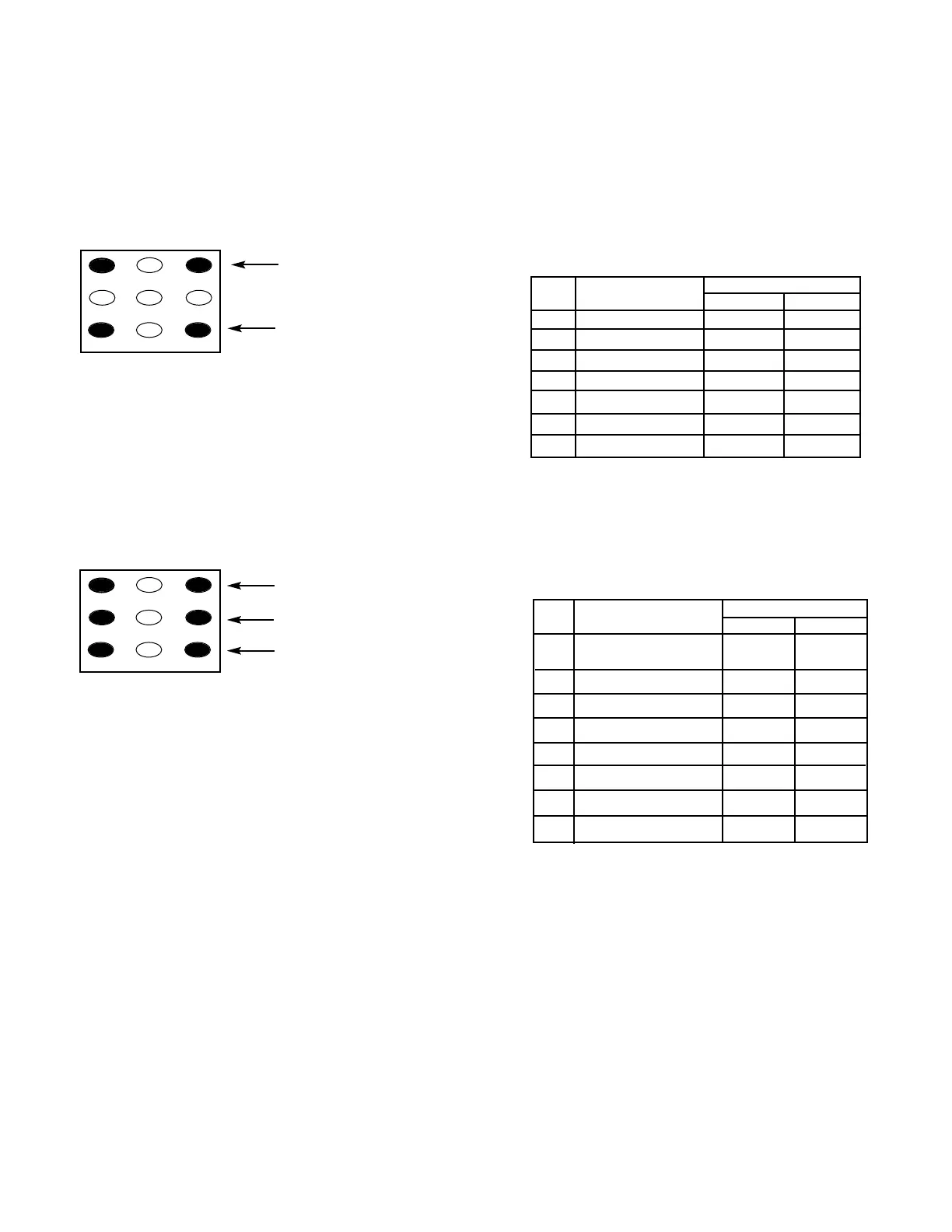

Red/Blue Drive Adjustments in Service Menu NO. AF DRV:
Adjust Red and Blue Drive Levels alternately with 1, 3, 7,
and 9 keys on the remote control. See Figure 2. The Drive
Level adjustment data will be written in the Service Menu
No. 4A RD and 4C BD automatically.
1
2
3
4 5 6
7 98
RB(–)
RB(+)
BB(–)
BB(+)
(N/A)
GB(–)
(N/A)
GB(+)
(N/A)
FOR RED BIAS ADJUSTMENT
FOR BLUE BIAS ADJUSTMENT
FOR GREEN BIAS ADJUSTMENT
Figure 2.
Figure 3.
1
2
3
4 5 6
7 98
RD(–)
RD(+)
BD(–)
BD(+)
(N/A)
(N/A)
(N/A)
(N/A)
(N/A)
FOR RED DRIVE ADJUSTMENT
FOR BLUE DRIVE ADJUSTMENT
Note 2.
Red/Green/Blue Bias Adjustments in Service Menu
between AF and B0 (No Vertical Sweep):
Adjust each Bias Level with 1, 3, 4, 6, 7, or 9 key on the
remote control. See Figure 3. The Bias Level adjustment
data will be written in the Service Menu No. 47 RB,
No. 48 GB, and No. 49 BB automatically.
DRIVE AND BIAS ADJUSTMENTS
