QuickTips
■
Make sure all cable
connectors are fully
seated on jacks.
See pages 13 ~ 15
before connecting
external audio/video
equipment.
■
Cables are not
supplied for connect-
ing your external
equipment.
■
A solid Blue screen
with the word
Video1, Video2, or
Component 3
displayed means that
the Video mode is
selected, but no
signal is being
detected at the
Video jack. Check
connection, and
turn on external
equipment.
■
Be sure batteries are
installed correctly.
■
Point the remote
control toward the
equipment you want
to operate. Objects
between the remote
control and the equip-
ment may cause
misoperation of the
remote control
function.
Need help?
Visit our Web site at
www.sanyoctv.com
or Call 1-800-877-5032

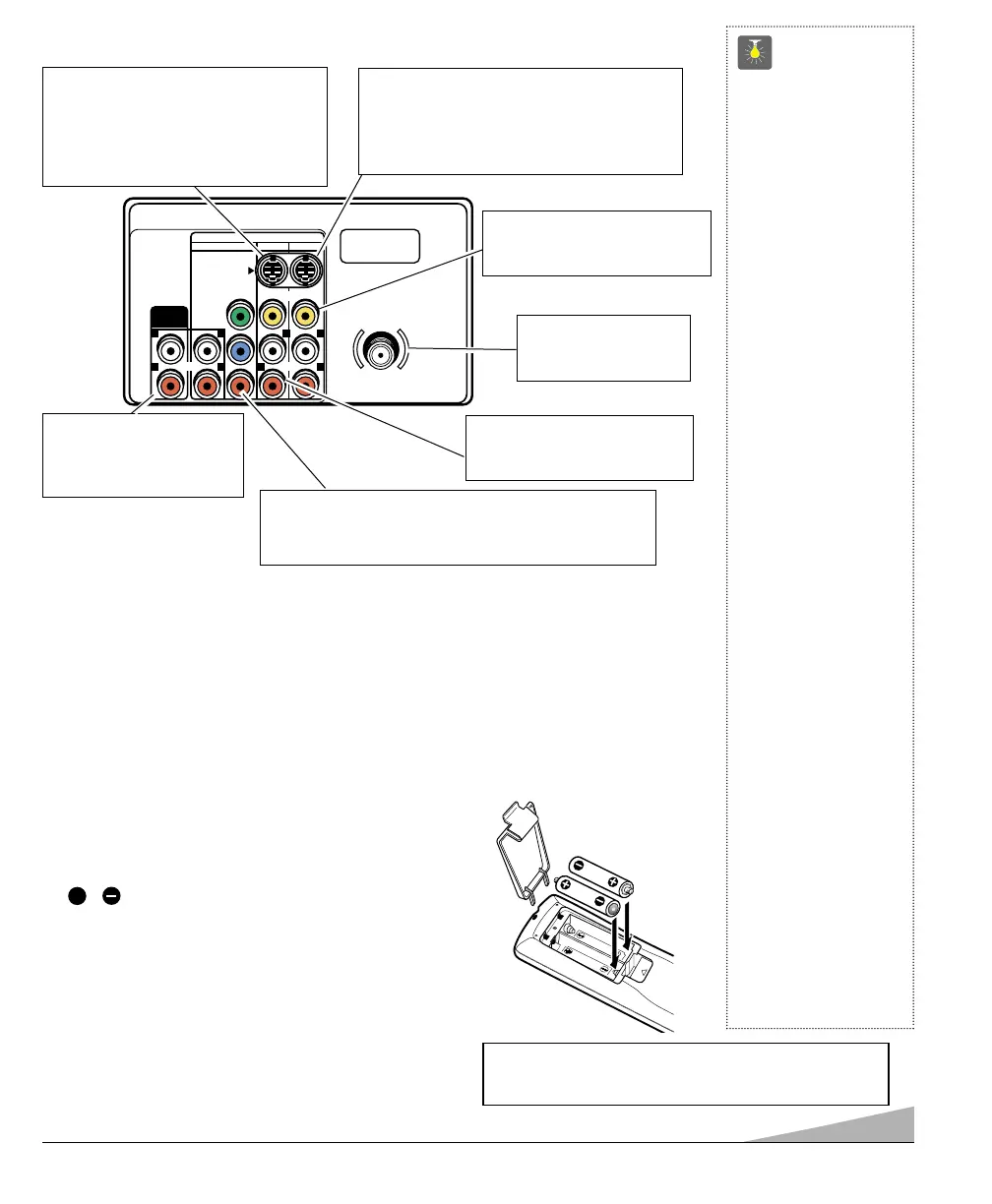

REAR PANEL
Cable / Antenna
(VHF/UHF)Terminal
(75 ohms input)
Audio/Video In Jacks (Video 1)
Connect external video equipment
here (see page 14).
Audio Out Jacks
(Fixed/Variable)
Connect external audio
equipment here (see page 13).
Audio/Video In Jacks (Video 2)
Connect external video equipment
here (see page 14).
S-Video (Super-Video) AV1 Terminal
To enhance video detail use the S-Video AV1
jack instead of the AV1 Video jack, if available
on your external video equipment. (S-Video AV1
connection will override a Video 1 connection.)
S-Video (Super-Video) AV 2 Terminal
To enhance video detail use the S-Video
AV2 jack instead of the A/V2 Video jack, if
available on your external video equipment.
(S-Video AV2 connection will override a
Video 2 connection.)
INSTALLING BATTERIES (2 AA not included)
1. Remove the battery cover by pressing the tab and tilting
the cover upward. Insert batteries. Make sure you match
/ signs on the batteries with marks inside the remote
control.
2. Replace battery cover. The remote control is ready!
Notes:
– Do not mix old batteries with new ones or mix
different types of batteries together.
– Remove the batteries if the remote control will not be
used for a month or more. Weak batteries may leak and
cause damage.
IMPORTANT NOTE: Spent or discharged batteries must be recycled or
disposed of properly in compliance with all applicable laws. For detailed
information, contact your local County Solid Waste Authority.
UNIVERSAL/MULTIMEDIA REMOTE CONTROL
Operates your TV, VCR, Cable Converter Box, DVD, and Satellite Receiver. Simply program
it according to the directions on pages 7~9. Then press the proper function key (VCR, TV,
CABLE, DVD, SAT, or AUX) to set the remote control to operate each product. The AUX
mode can be programmed to operate a VCR, Cable Box, DVD, or Satellite Receiver. Also,
this remote offers large Channel, Volume, and Power keys that glow-in-the-dark.
Component Audio/Video In Jacks (Component 3)
(Y, Pb, Pr–R/L)
Connect digital external video equipment here (see page 15).
To Next Page
