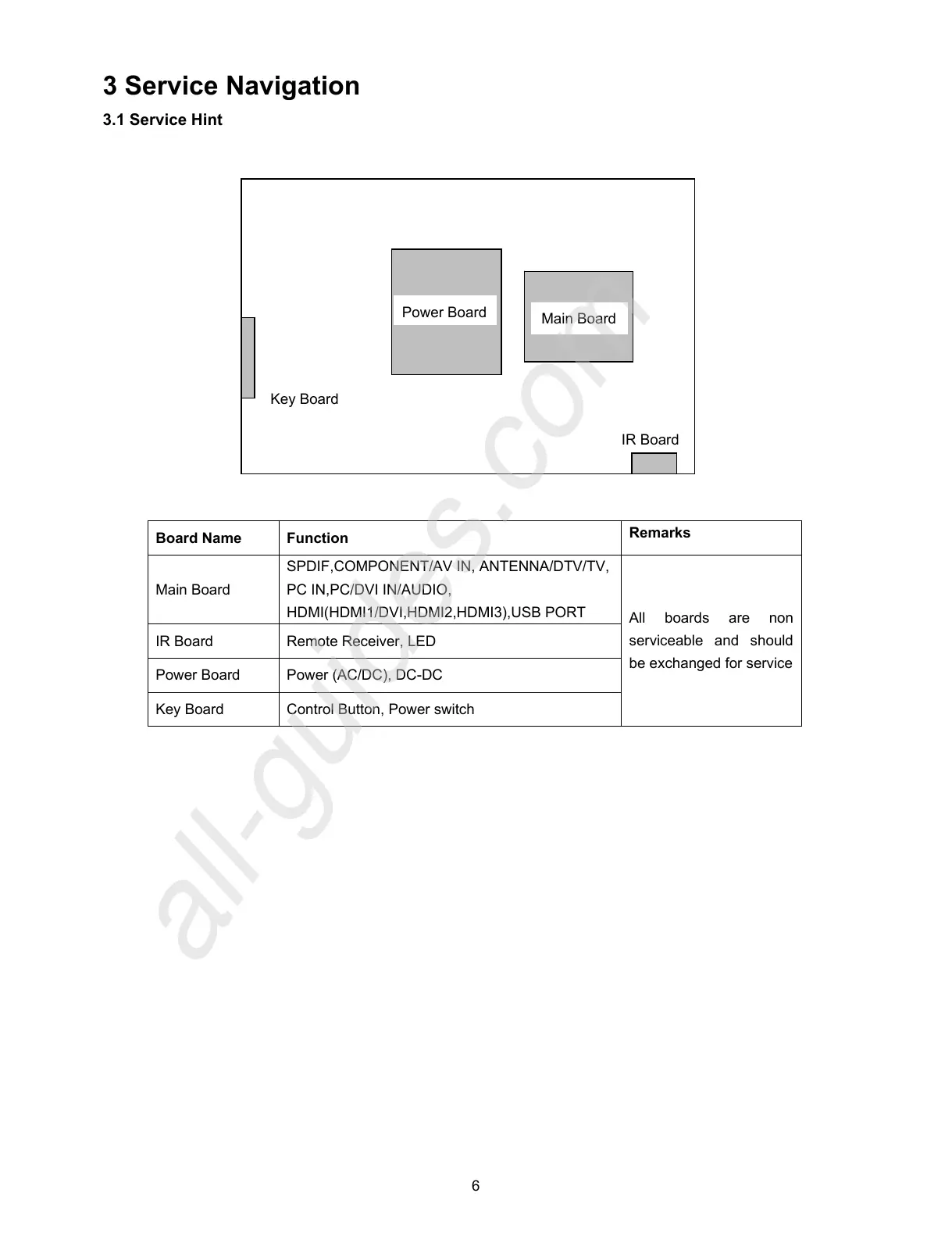

3.1 Service Hint
Board Name Function
Remarks
Main Board
SPDIF,COMPONENT/AV IN, ANTENNA/DTV/TV,
PC IN,PC/DVI IN/AUDIO,
HDMI(HDMI1/DVI,HDMI2,HDMI3),USB PORT
All boards are non
serviceable and should
be exchanged for service
IR Board Remote Receiver, LED
Power Board Power (AC/DC), DC-DC
Key Board Control Button, Power switch
Main Board
Power Board
Key Board
IR Board
