— 47 —

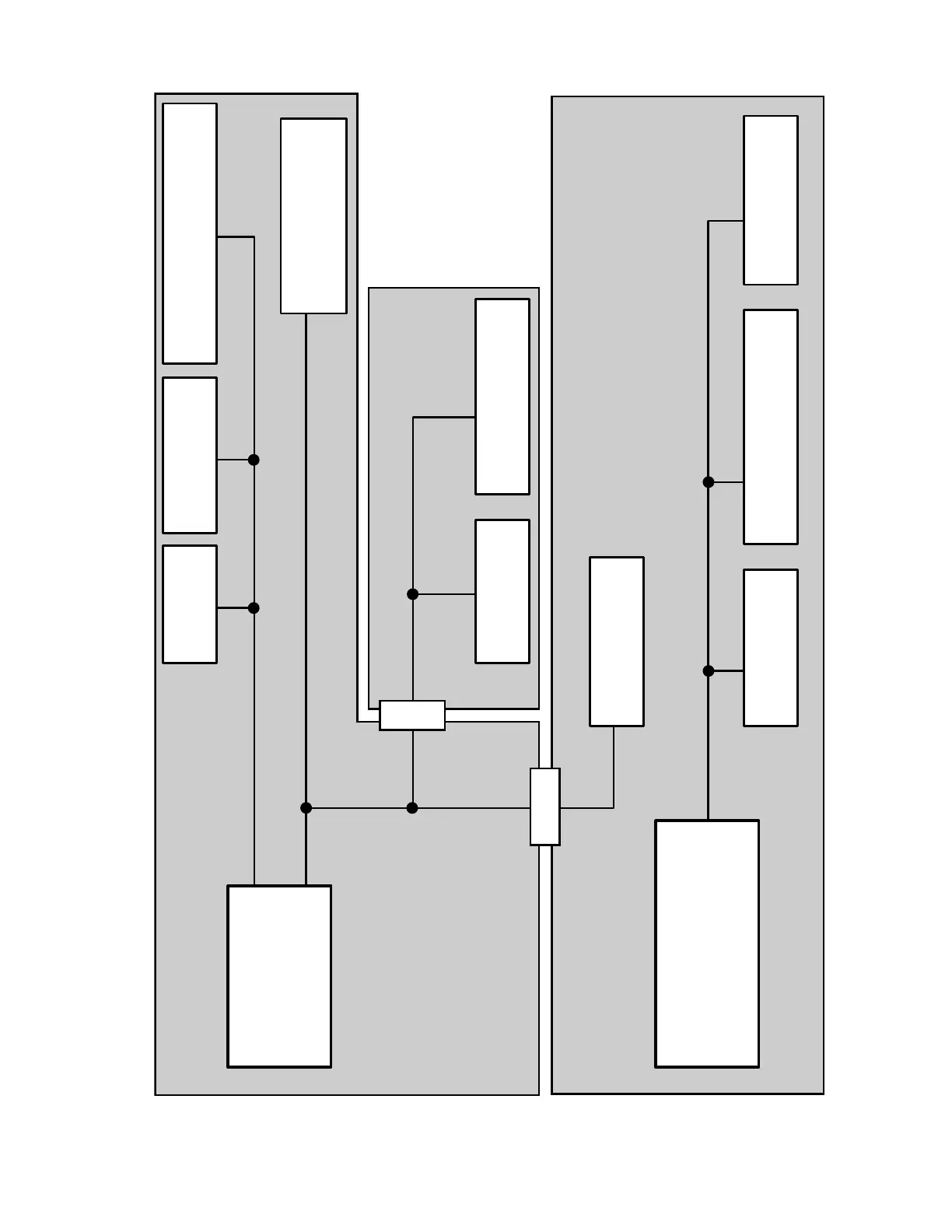

MAIN CPU DATA BUS LINES
TV_CPU
Main Board Digital Board
AV Video Board
(M37151MA-083FP)
CPU/ATSC DECODER /IP SCAN/SCALER
(LC74154B-EM)
TUNER (F1FAM0160)
IIC_AV IIC_TV
IIC_DIGITAL
DIGITAL TUNER (F1BAZ0020)
VIDEO A/D CONVERTER (AD9985KSTZ-110)
AV SELECTOR (MM1313BD)
NTSC DECODER (TC9010FG)
DEFLECTION/VIDEO
COMPONENT SYNC. SEPARATION
(CXA2180QM)
(TA1318AFP)
MTS DECODER (CXA2104S)
AUDIO VOLUME CONTROL (NJW1142MP)
HDMI RECEIVER (SIL9011CLUM)
K10F
K5DMC
SCL: 30 SDA: 31 SCL: 1 SDA: 41
SCL: 12 SDA: 11
SCL: 8 SDA: 7
SCL: 10 SDA: 11
SCL: 4 SDA: 3
SCL: 14 SDA: 13
SCL: 19 SDA: 20
SCL: 60 SDA: 59
SCL: 22 SDA: 21
