Sanyo MCD-Z330F - CONTROLS; Control Panel Overview; Volume Control

CONTROLS
456789
ru+l+tl e ‘) ‘? ‘3 1?
23 22 2i 20 19 18 i7 /6 /5
28
27 26 25

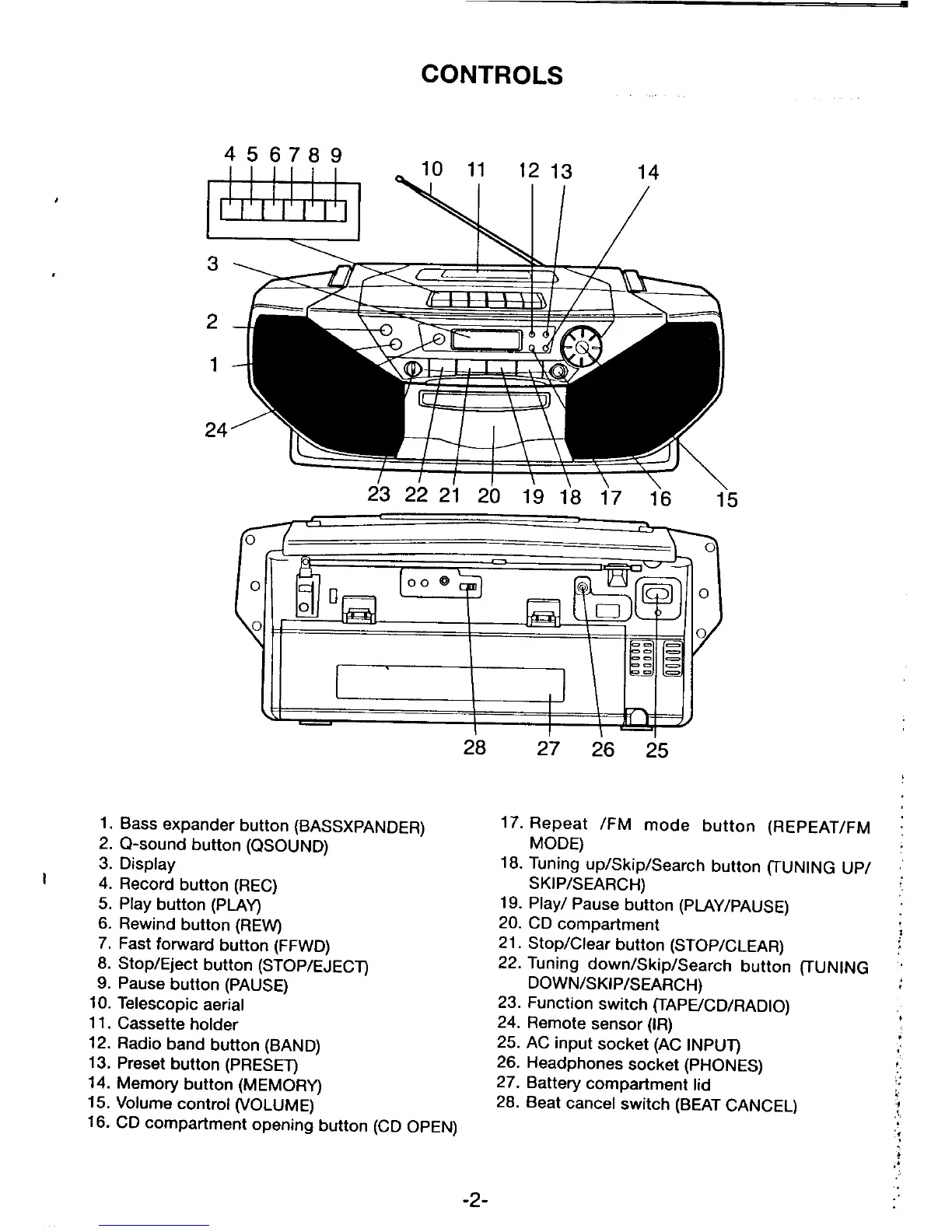

1. Bass expander button (BASSXPANDER)
2. Q-sound button (QSOUND)
3. Display
I
4. Record button (REC)
5. Play button (PIA~
6. Rewind button (RE~
7. Fast forward button (FFWD)
8. Stop/Eject button (STOP/EJEC~
9. Pause button (PAUSE)
10. Telescopic aerial
11. Cassette holder
12. Radio band button (BAND)
13. Preset button (PRESET)
14. Memoty button (MEMORY)
15. Volume control (VOLUME)
16. CD compartment opening button (CD OPEN)
17. Repeat /FM mode button (REPEAT/FM ~
MODE)
18. Tuning up/Skip/Search button (TUNING UP/ ~
SKIP/SEARCH)
19. Play/ Pause button (PIAY/PAUSE)
20. CD compartment
:
21. Stop/Clear button (STOP/CLEAR)
22. Tuning down/Skip/Search button (TUNING ‘
DOWN/SKlp/SEARCH)
23. Function switch (TAPE/CD/RADIO)
24. Remote sensor (IR)
“,
25. AC input socket (AC INPUT
,
<’
26. Headphones socket (PHONES)
27. Battery compartment lid
:
28. Beat cancel switch (BEAT CANCEL)
