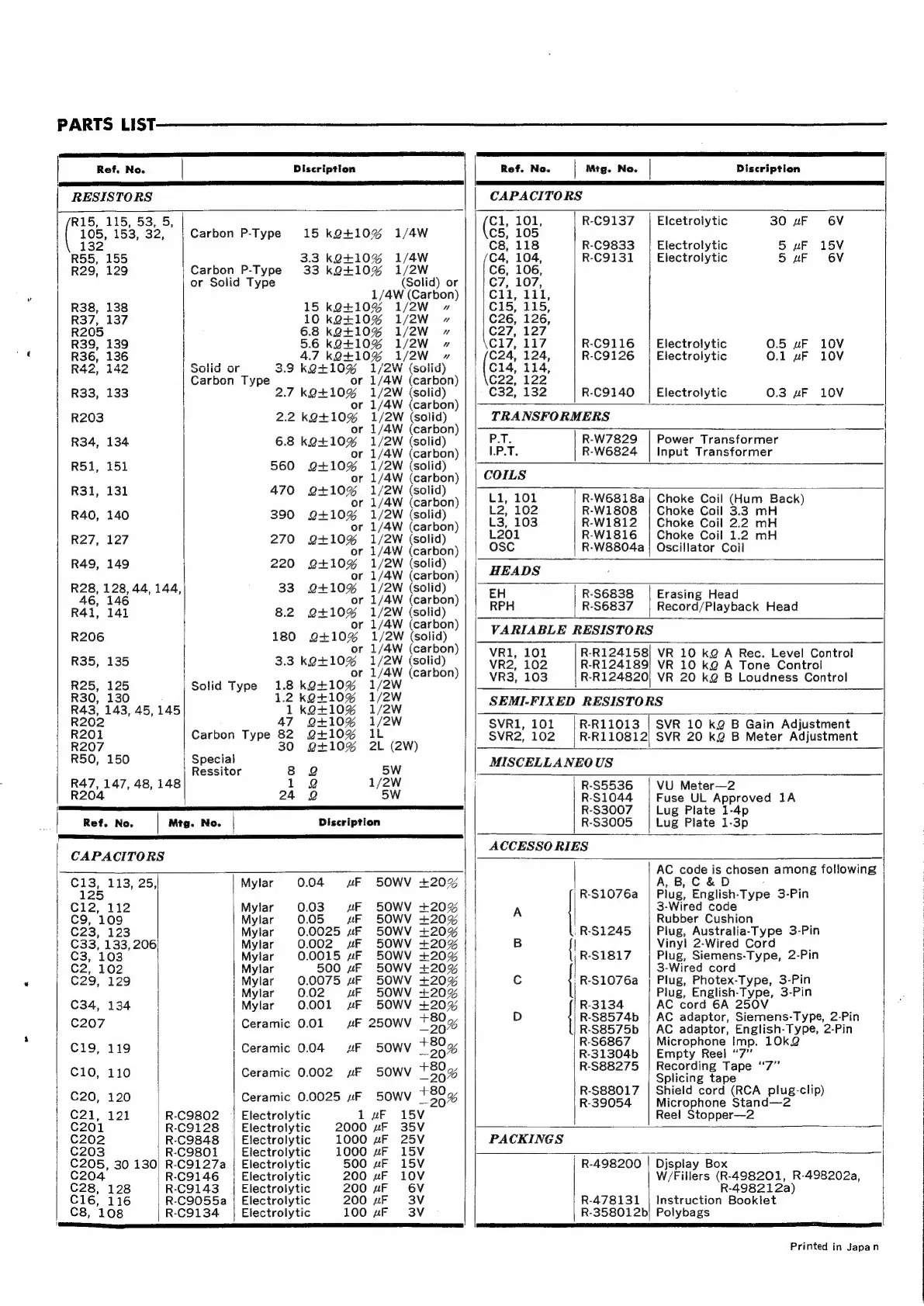

PARTS LIST
VARIABLE RESISTORS
| Ref. No. Mtg. No. Discription
A EE AE SE SPAS LATS TE IE OLA OL TT i SIPING |
CAPACITORS
(at 101, R-C9137 Elcetrolytic 30 4F O6V
C5, 105
c8, 118 R-C9833 Electrolytic 5 uF 15V
C4, 104, R-C9131 Electrolytic 5 uF 6V
C6, 106,
C7, 107,
Cli, 111,
C15, 115,
C26, 126,
C27, 127
C17, 117 R-C9116 Electrolytic 0.5 uF 10V
C24, 124, R-C9126 Electrolytic 0.1 uF 10V
C14, 114,
C22, 122
C32, 132 R-C9140 | Electrolytic 0.3 uF 10V
TRANSFORMERS
P.T. R-W7829 | Power Transformer
.P.T. R-W6824 | Input Transformer
COILS
L1, 101 R-W6818a | Choke Coil (Hum Back)
L2, 102 R-W1808 | Choke Coil 3.3 mH
L3, 103 R-W1812 | Choke Coil 2.2 mH
L201 R-W1816 | Choke Coil 1.2 mH
osc R-W8804a | Oscillator Coil
HEADS
EH R-S6838 Erasing Head
RPH R-S6837 Record/Playback Head
Ref. No. Discription
RESISTORS
R15, 115, 53, 5,
( 105, 153, 32, Carbon P-Type 15 kQ+10% 1/4W
132
R55, 155 3.3 kQ+10% 1/4W
R29, 129 Carbon P-Type 33 k@+10% 1/2W
or Solid Type (Solid) or
raed carver)
R38, 138 15 kQ+10% 1/2W »
R37, 137 10 kQ4+10% 1/2W «
R205 6.8 kQ+10% 1/2W »
R39, 139 5.6 kQ410% 1/2W
R36, 136 4.7 kQ+10% 1/2W a
R42, 142 Solid or 3.9 K2+10% 1/2W (solid)
Carbon Type or 1/4W (carbon)
R33, 133 2.7 kQ+10% 1/2W (solid)
or 1/4W (carbon)
R203 2.2 kQ+10% 1/2W (solid)
or 1/4W (carbon)
R34, 134 6.8 kQ+10% 1/2W (solid)
or 1/4W (carbon)
R51, 151 560 92+10% 1/2W (solid)
or 1/4W (carbon)
R31, 131 470 2+10% 1/2W (solid)
or 1/4W (carbon)
R40, 140 390 29+10% 1/2W (solid)
or 1/4W (carbon)
R27, 127 270 Q+10% 1/2W (solid)
or 1/4W (carbon)
R49, 149 220 2+410% 1/2W (solid)
or 1/4W (carbon)
R28, 128, 44, 144, 33 2+410% 1/2W (solid)
, 146 or 1/4W (carbon)
R41, 141 8.2 Q+10% 1/2W (solid)
or 1/4W (carbon)
R206 180 @9+10% 1/2W (solid)
or 1/4W (carbon)
R35, 135 3.3 kQ+10% 1/2W (solid)
or 1/4W (carbon)
R25, 125 Solid Type 1.8 kQ+10% 1/2W
R30, 130 1.2 kQ@+10% 1/2W
R43, 143, 45,145 1 kQ@+10% 1/2W
R202 47 Q+10% 1/2W
R201 Carbon Type 82 Q+10% 1L
R207 30 Q+10% 2L (2W)
R50, 150 Special
Ressitor 8 2 5W
R47, 147, 48, 148 1 @Q 1/2W
R204 24 2 5W
el
Ref. No. Mtg. No. Discription
a a
CAPACITORS
C13, 113, 25, Mylar 0.04 4“F SOWV +20%
125
C12, 112 Mylar 0.03 uF SOWV +20%
C9, 109 Mylar 0.05 uF 50WV +20%
C23, 123 Mylar 0.0025 uF 50WV +20%
C33, 133, 206 Mylar 0.002 uF 50WV +20%
C3, 103 Mylar 0.0015 uF S50WV +20%
C2) 102 Mylar 500 uF 5O0WV +20%
C29, 129 Mylar 0.0075 uF S5OWV +20%
Mylar 0.02 uF SOWV +20%
C34, 134 Mylar 0.001 “F 50WV +20%;
C207 Ceramic 0.01 4F 250WV +80,
C19, 119 Ceramic 0.04 uF SOWV 180.
C10, 110 Ceramic 0.002 uF sowv +852;
C20, 120 Ceramic 0.0025 uF sowv +899
C21, 121 R-C9802 | Electrolytic 1 uF 15V
C201 R-C9128 | Electrolytic 2000 uF 35V
C202 R-C9848 | Electrolytic 1000 4F 25V
C203 R-C9801 | Electrolytic 1000 uF 15V
C205, 30 130| R-C9127a | Electrolytic 500 uF 15V
C204 R-C9146 | Electrolytic | 200 uF 10V
C28, 128 | R-C9143 | Electrolytic 200 4F 6V
C16, 116 |R-C9055a | Electrolytic 200 uF 3V
C8, 108 R-C9134 | Electrolytic 100 uF 3V
See ree ee ee ee EE,
VR1, 101 R-R124158; VR 10 k@ A Rec. Level Control
VR2, 102 R-R124189;} VR 10 k2 A Tone Control
VR3, 103 R-R124820; VR 20 kQ B Loudness Control
SEMI-FIXED RESISTORS
SVR1, 101 R-R11013 | SVR 10 kQ B Gain Adjustment
SVR2, 102 R-R110812) SVR 20 kQ B Meter Adjustment
MISCELLANEOUS
| R-S5536 | VU Meter—2
R-S1044 Fuse UL Approved 1A
R-S3007 Lug Plate 1-4p
R-S3005 Lug Plate 1-3p
ACCESSO RIES
| AC code is chosen among following
A,B,C &D
| R-S1076a Plug, English- Type 3-Pin
A 3-Wired code
| Rubber Cushion
/R-S1245 Plug, Australia-Type 3-Pin
B { Viny! 2-Wired Cord
/R-S1817 Plug, Siemens-Type, 2-Pin
| 3-Wired cord
c { R-S1076a | Plug, Photex-Type, 3-Pin
Plug, English-Type, 3-Pin
| R-3134 AC cord 6A 250V
D R-S8574b | AC adaptor, Siemens-Type, 2-Pin
R-S8575b | AC adaptor, English-Type, 2-Pin
R-S6867 Microphone Imp. 10k2
R-31304b | Empty Reel “7”
R-S88275 | Recording Tape “7”
Splicing tape
R-S88017 | Shield cord (RCA plug-clip)
R-39054 Microphone Stand—2
Reel Stopper—2
PACKINGS
R-498200 vey Box
W/Fillers (R-498201, R-498202a,
R- 49821 2a)
R-478131 | Instruction Booklet
R-358012b) Polybags
